Engine Controls - A/F, O2 Sensor Relay Location

2005my forester a/f & 02 sensor relay location

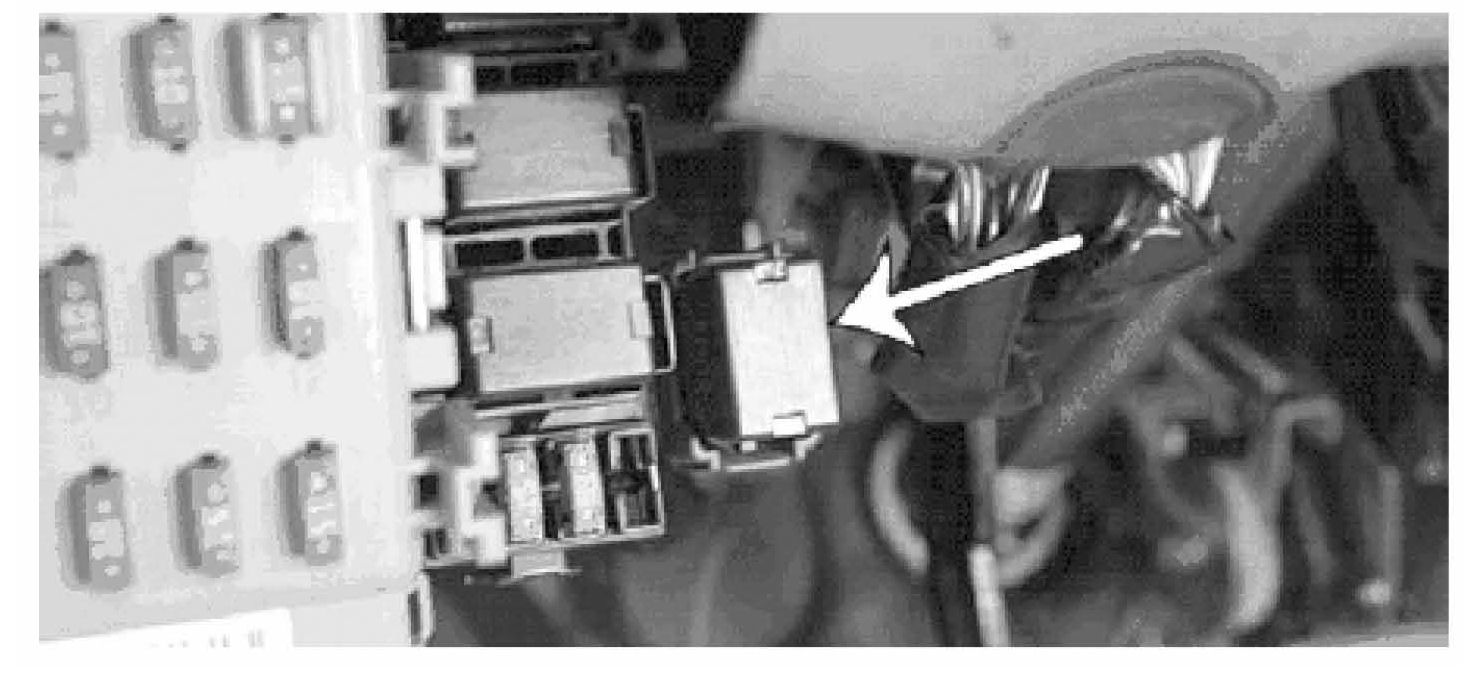

If you are trying to locate the A/F & 02 Sensor Relay on the above mentioned vehicle, be advised that the location for connector B237 is incorrect as shown in the 2005MY Forester Service Manual. The relay is located on the driver's side next to the inside fuse box. The attached picture shows the location. A correction to the service manual will be forthcoming.
