Accelerator Pedal: Removal

  1. Disconnect the ground cable from battery.
  2. Disconnect the connector.
  3. Remove the nuts which securing accelerator pedal assembly.

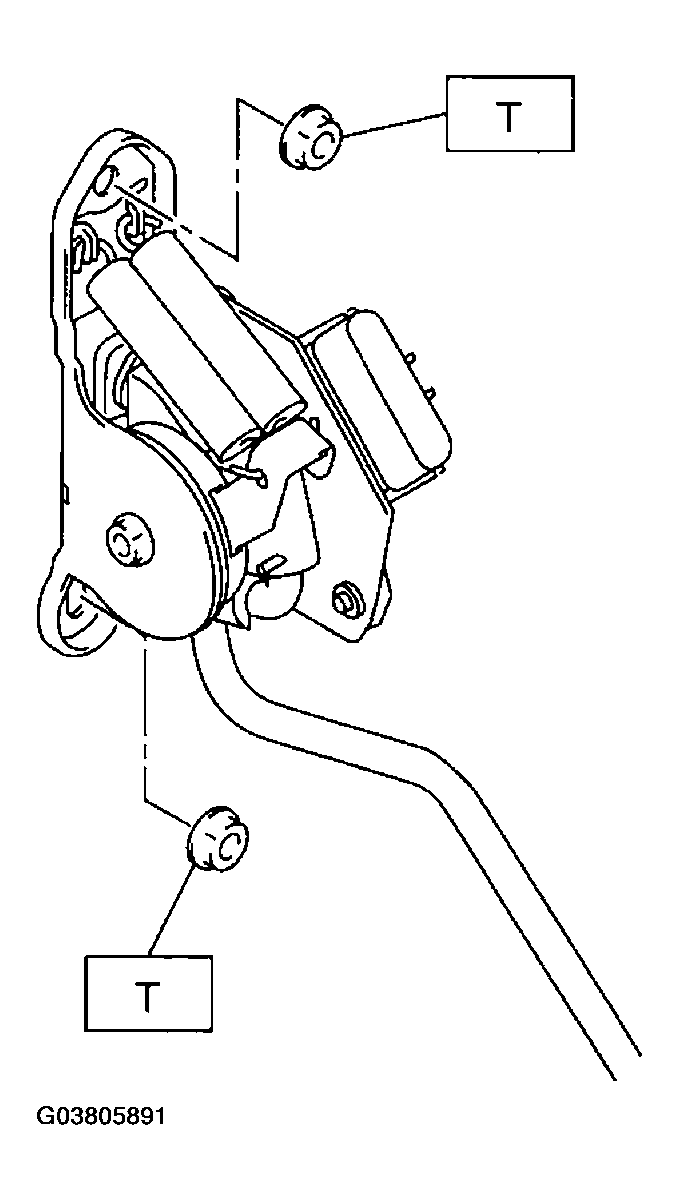

    Fig 1: Removing Accelerator Pedal Assembly And Nut
    G03805891Courtesy of SUBARU OF AMERICA, INC.
