Wheel Alignment: Specifications: Specifications

Use illustration for wheel alignment specifications. See Fig 1 .

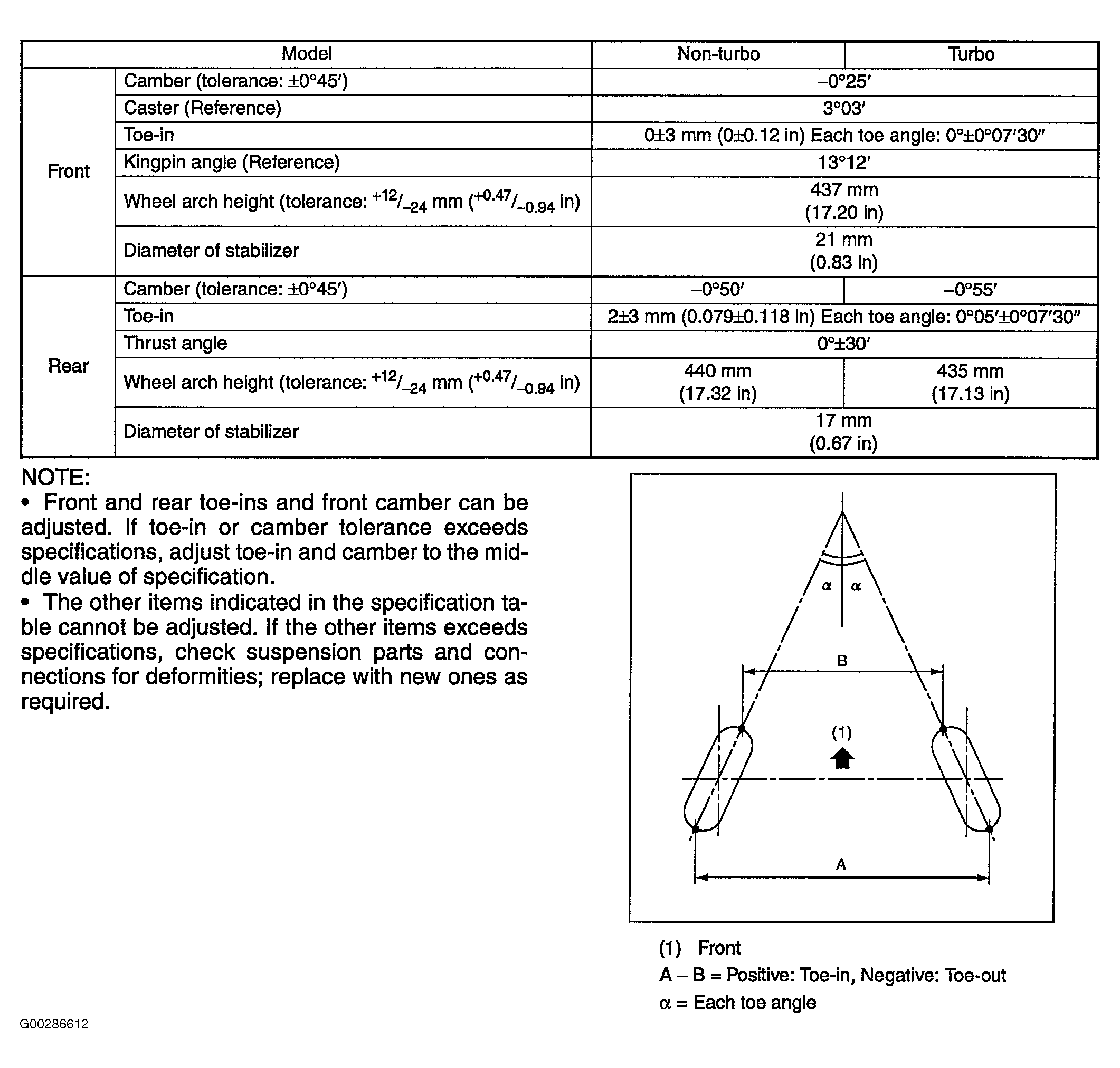

Fig 1: Wheel Alignment Specifications
G00286612Courtesy of SUBARU OF AMERICA, INC.
