Center Structure

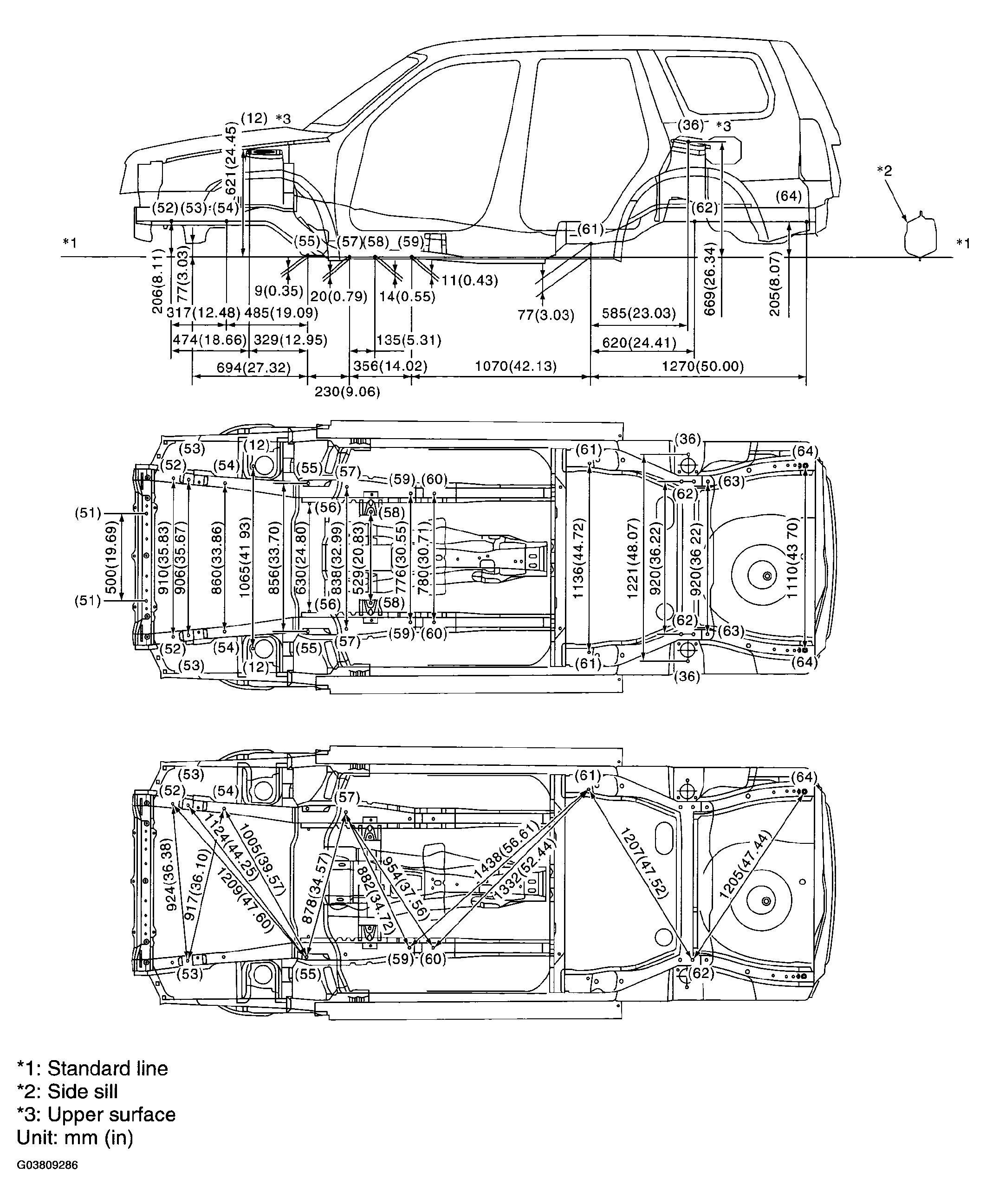

Fig 1: Identifying Center Structure Dimension
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
