Exhaust Temperature Sensor: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the joint pipe. < Ref. to REMOVAL , Joint Pipe. >

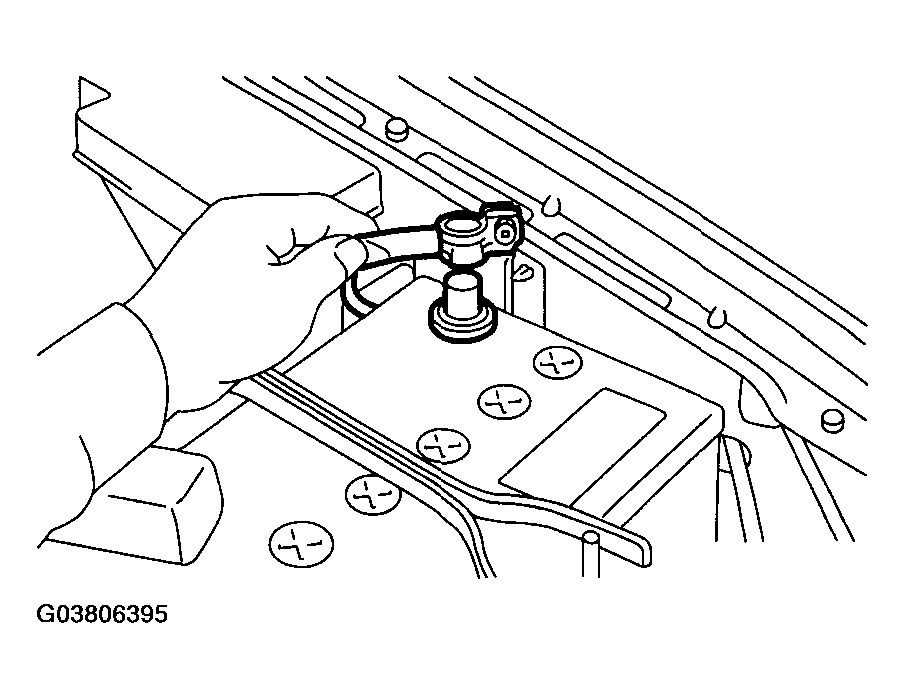

    Fig 1: Disconnecting Ground Cable From Battery
    G03806395Courtesy of SUBARU OF AMERICA, INC.
  3. Apply spray type lubricant to the threaded portion of exhaust temperature sensor, and leave it for 1 minute or more.
  4. Remove the exhaust temperature sensor.
    CAUTION: When removing the exhaust temperature sensor, wait until the exhaust pipe cools, otherwise it will damage exhaust pipe.
    Fig 2: Removing Exhaust Temperature Sensor
    G03806396Courtesy of SUBARU OF AMERICA, INC.
