LH Side

  1. Release the fuel pressure. < Ref. to RELEASING OF FUEL PRESSURE , Procedure, Fuel. >
  2. Open the fuel filler flap lid and remove the fuel filler cap.
  3. Disconnect the ground cable from battery.

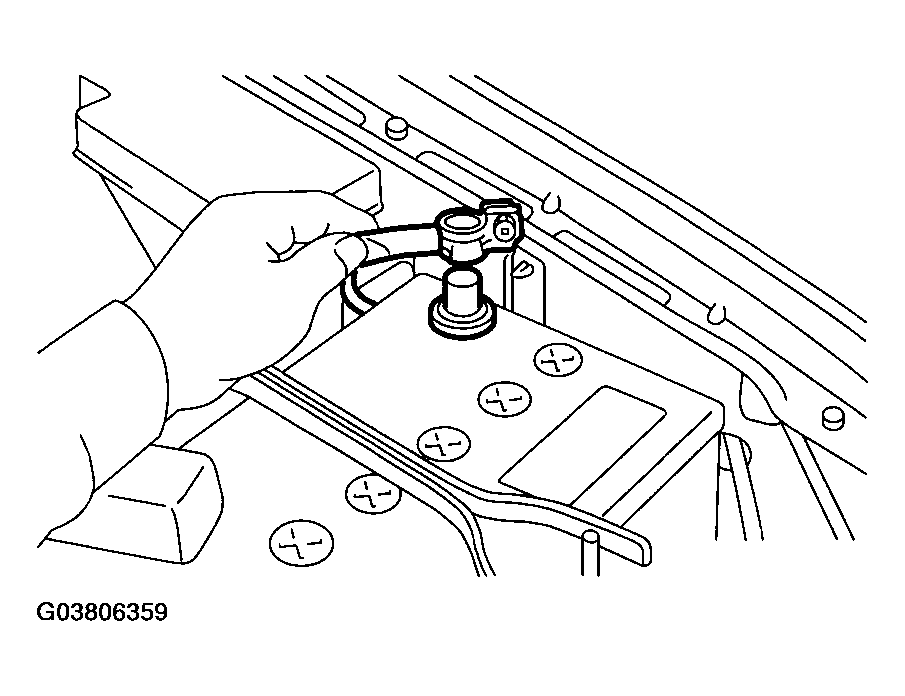

    Fig 1: Disconnecting Ground Cable From Battery
    G03806359Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the intake manifold. < Ref. to REMOVAL , Intake Manifold. >
  5. Disconnect the connector from the fuel injector.
  6. Remove the screw and remove the fuel injector.

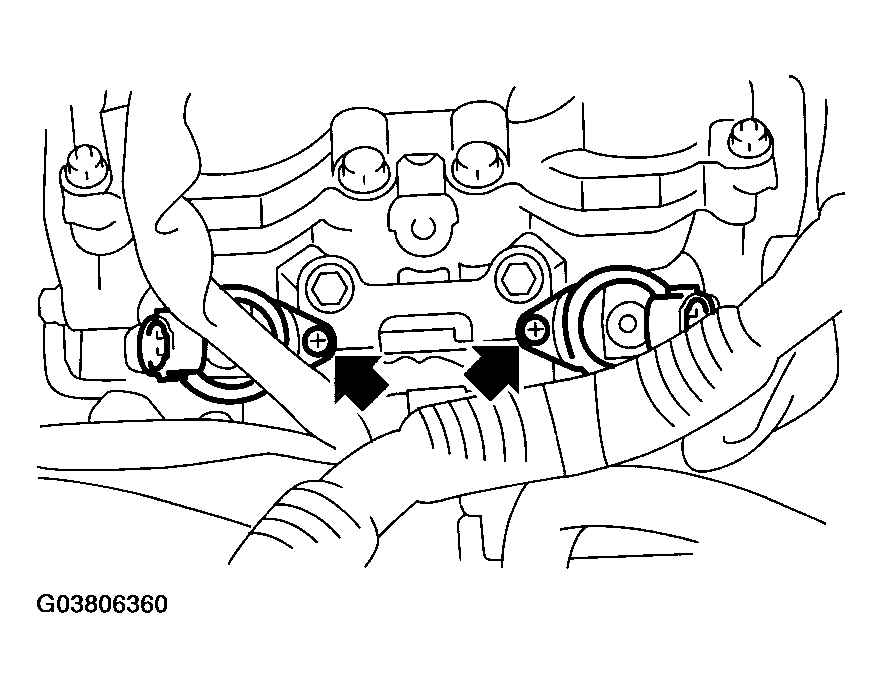

    Fig 2: Removing Fuel Injector
    G03806360Courtesy of SUBARU OF AMERICA, INC.
