Tumble Generator Valve Assembly: Removal
- Release the fuel pressure. < Ref. to
RELEASING OF FUEL PRESSURE , Procedure, Fuel. >
- Open the fuel filler flap lid and remove the fuel filler cap.

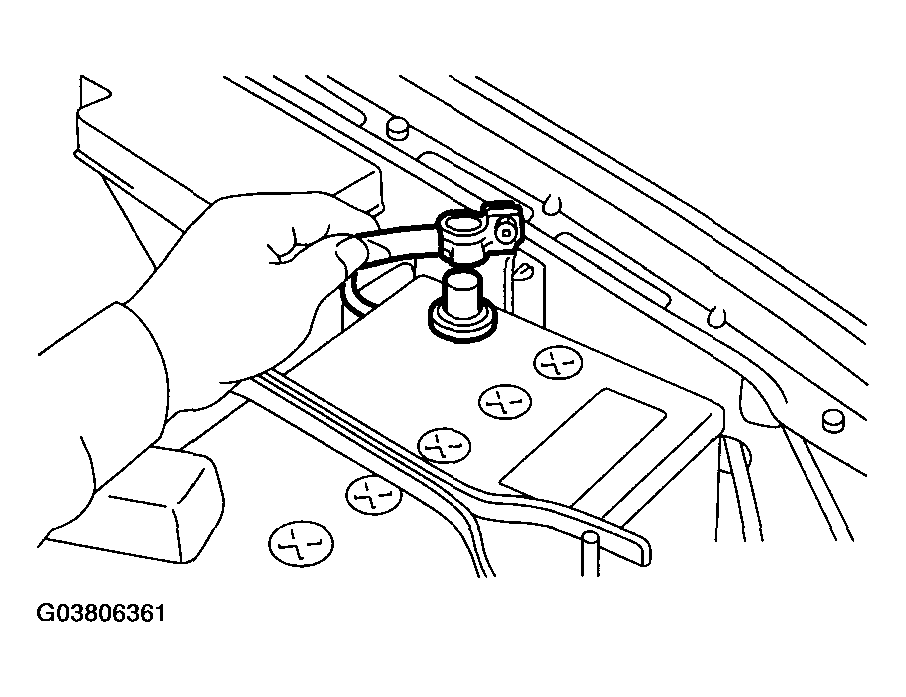

- Disconnect the ground cable from battery.
Courtesy of SUBARU OF AMERICA, INC.
- Remove the intake manifold. < Ref. to
REMOVAL , Intake Manifold. >
- Disconnect the connector from the tumble generator valve sensor.
Courtesy of SUBARU OF AMERICA, INC.
- Disconnect the connector from the tumble generator valve actuator.
Courtesy of SUBARU OF AMERICA, INC.
- Remove the fuel injector. < Ref. to
REMOVAL , Fuel Injector. >
- Remove the tumble generator valve body from the intake manifold.
Courtesy of SUBARU OF AMERICA, INC.
