Components With Torque Specifications: Generator

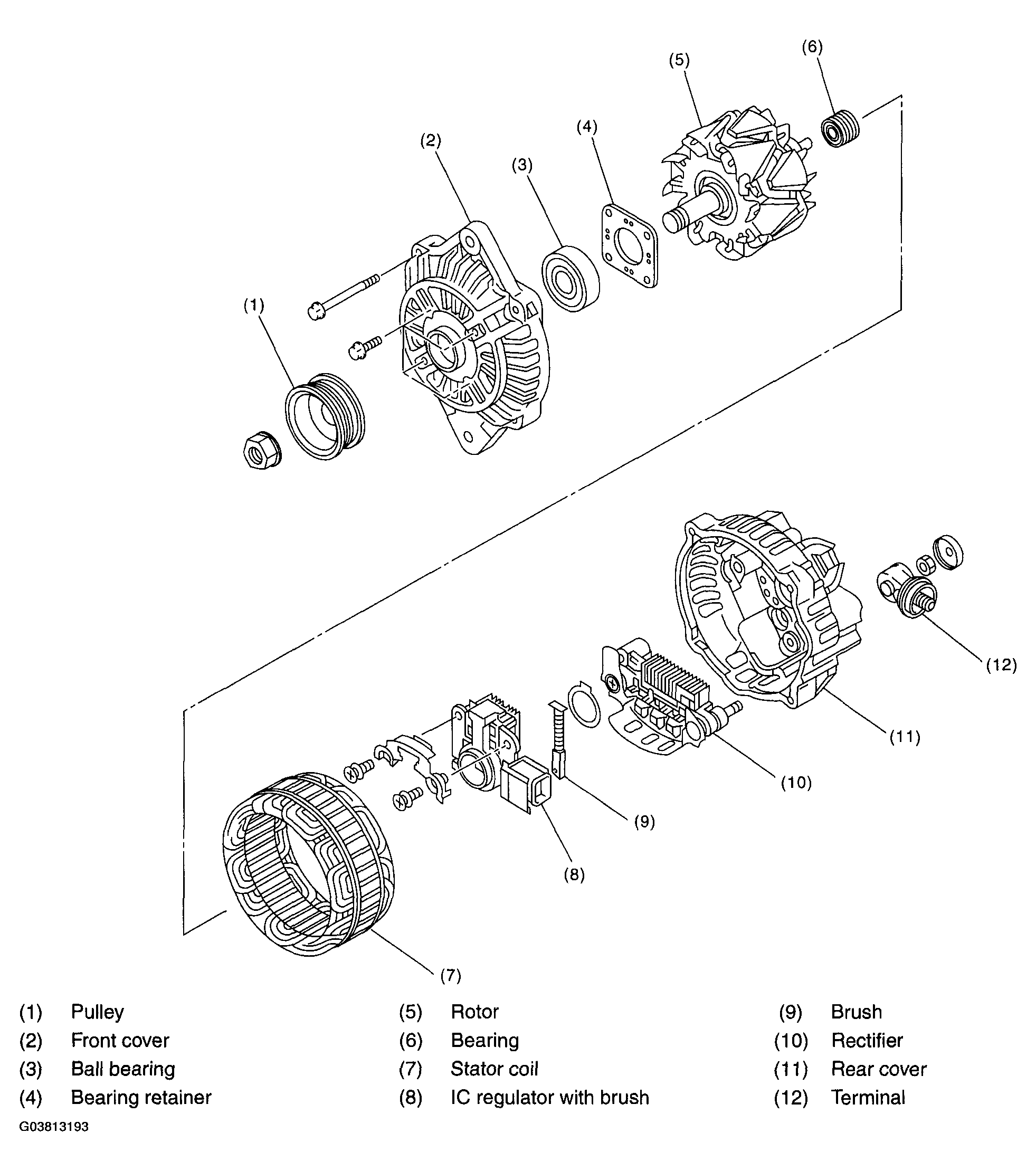

Fig 1: Exploded View Of Generator

G03813193

Courtesy of SUBARU OF AMERICA, INC.
