Starting/Charging Systems: Generator: Disassembly

Remove the four through-bolts.

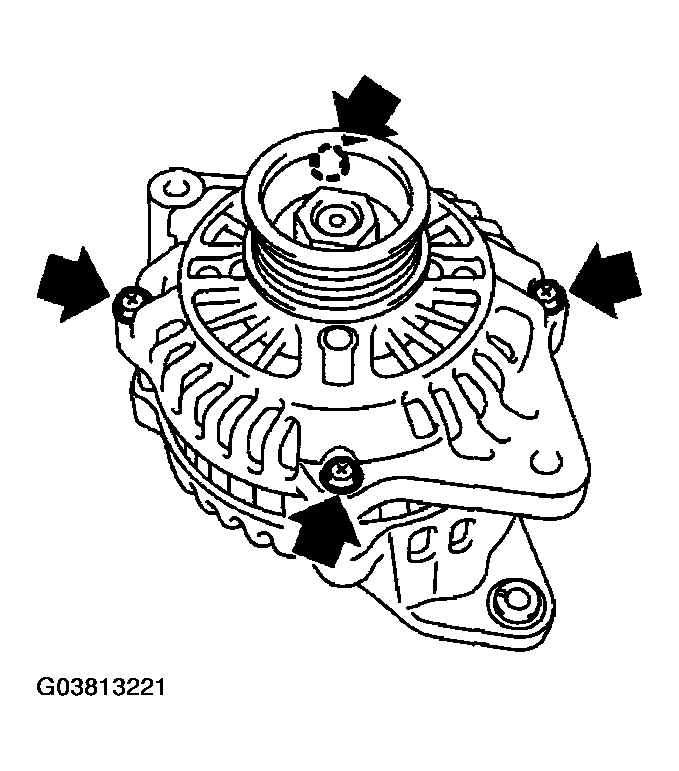

Fig 1: Removing Four Through-Bolts
Courtesy of SUBARU OF AMERICA, INC.

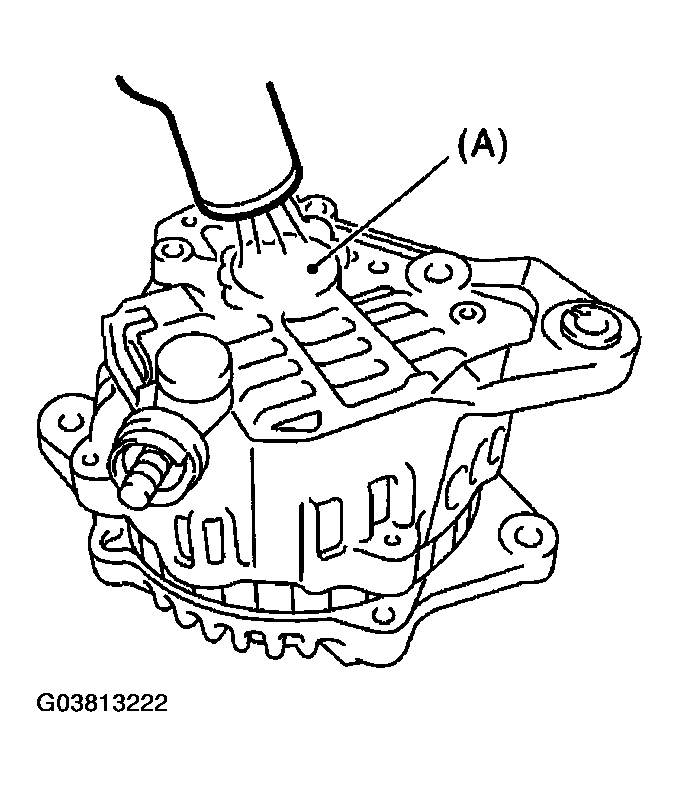

Heat portion (A) of rear cover to 50°C (122°F) with a heater drier.

Fig 2: Identifying Heat Portion Of Rear Cover
Courtesy of SUBARU OF AMERICA, INC.
Then insert the tip of a flat tip screwdriver into the gap between stator core and front cover. Pry them apart to disassemble.

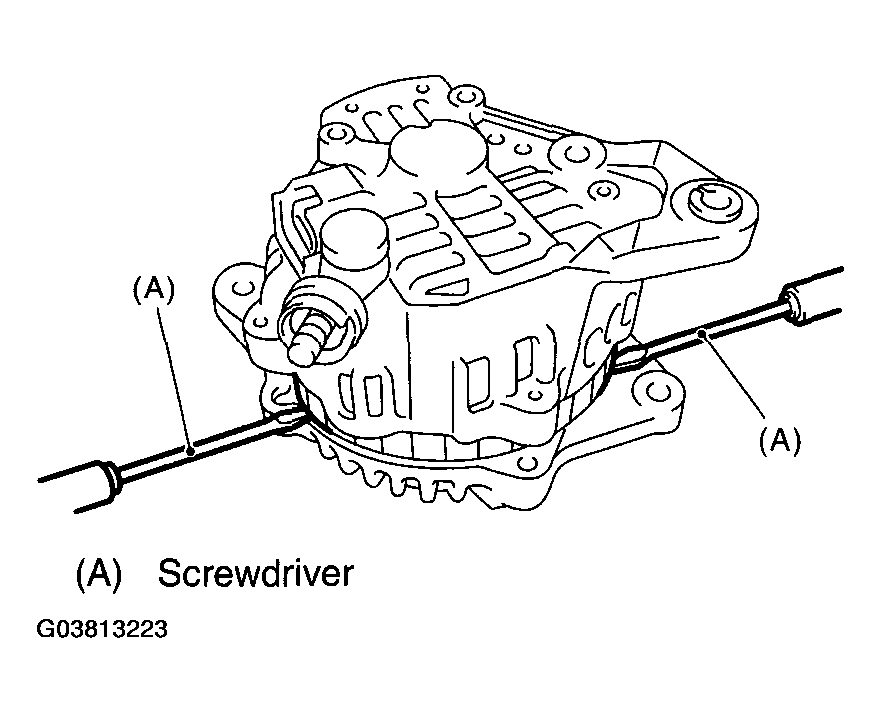

Fig 3: Inserting Tip Of A Flat Tip Screwdriver Into Gap Between Stator Core And Front Cover
Courtesy of SUBARU OF AMERICA, INC.

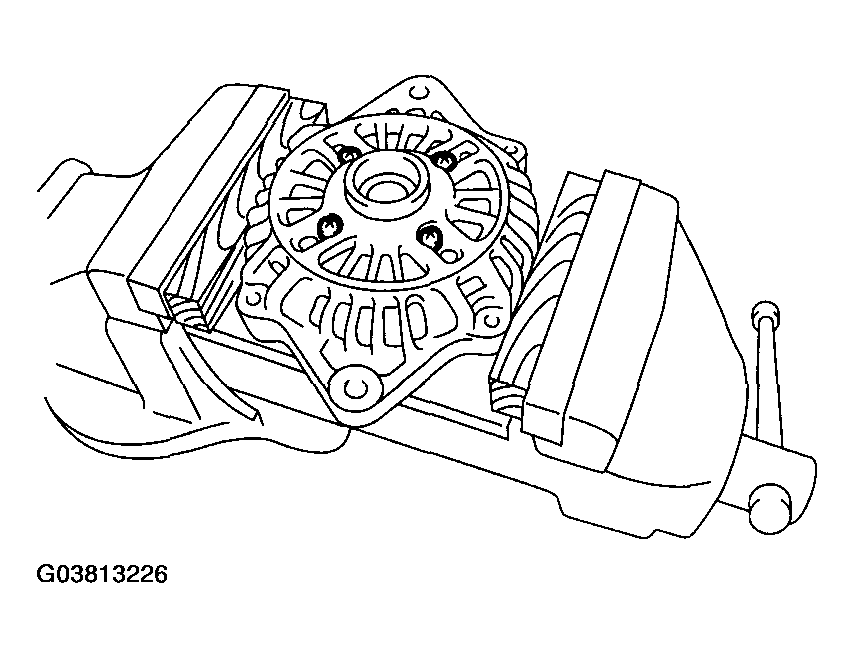

Hold the rotor with a vise and remove pulley nut.

Fig 4: Removing Pulley Nut
Courtesy of SUBARU OF AMERICA, INC.

CAUTION: When holding the rotor with a vise, place aluminum plates or wooden pieces on the vise jaws to prevent rotor from damage.

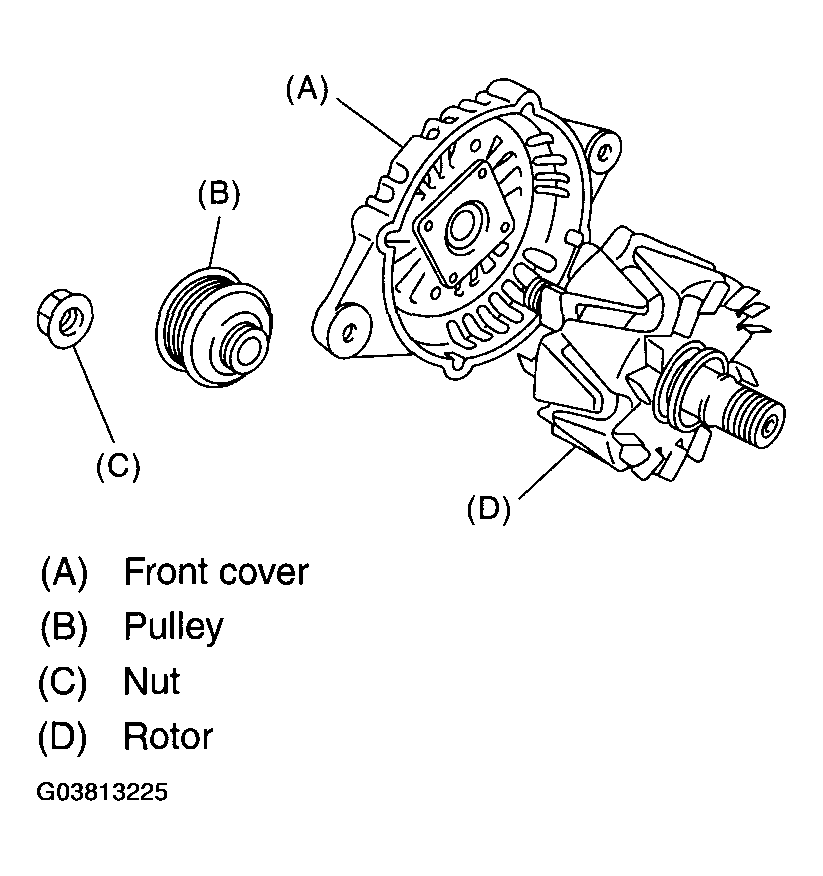

Fig 5: Identifying Pulley Nut
Courtesy of SUBARU OF AMERICA, INC.
Remove the ball bearing as follows.
1. Remove the bolt, and then remove the bearing retainer.

  Fig 6: Removing Bearing Retainer
  Courtesy of SUBARU OF AMERICA, INC.
2. Firmly install an appropriate tool (such as a fit socket wrench) to bearing inner race.

  Fig 7: Installing Tool To Bearing Inner Race
  Courtesy of SUBARU OF AMERICA, INC.
3. Push the ball bearing off the front cover using a press.
Remove the bearing from rotor using a bearing puller.

Fig 8: Removing Bearing From Rotor Using A Bearing Puller
Courtesy of SUBARU OF AMERICA, INC.

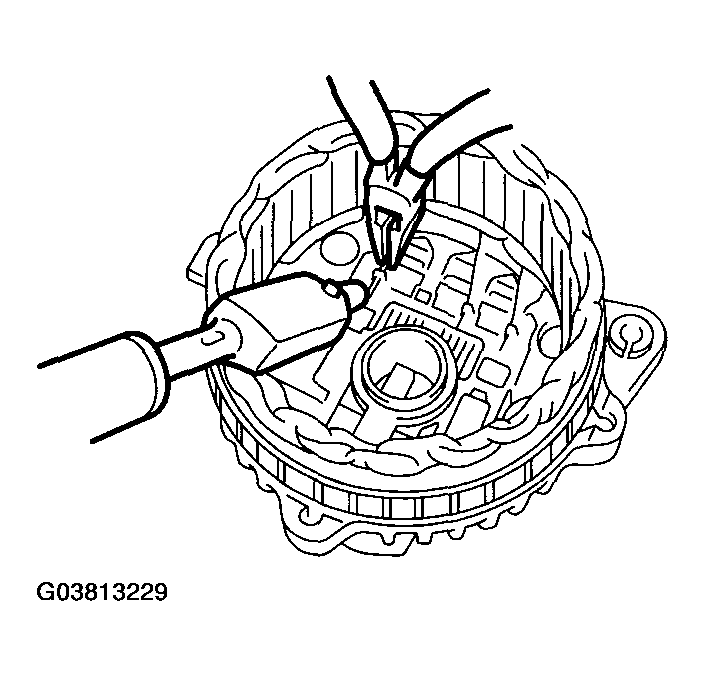

Unsolder connection between rectifier and stator coil to remove the stator coil.
CAUTION: Do not allow a 180 - 270 W soldering iron to contact the terminals for more than 5 seconds at once because the rectifier cannot withstand so much heat.

Fig 9: Removing Stator Coil
Courtesy of SUBARU OF AMERICA, INC.
Remove the IC regulator as follows.

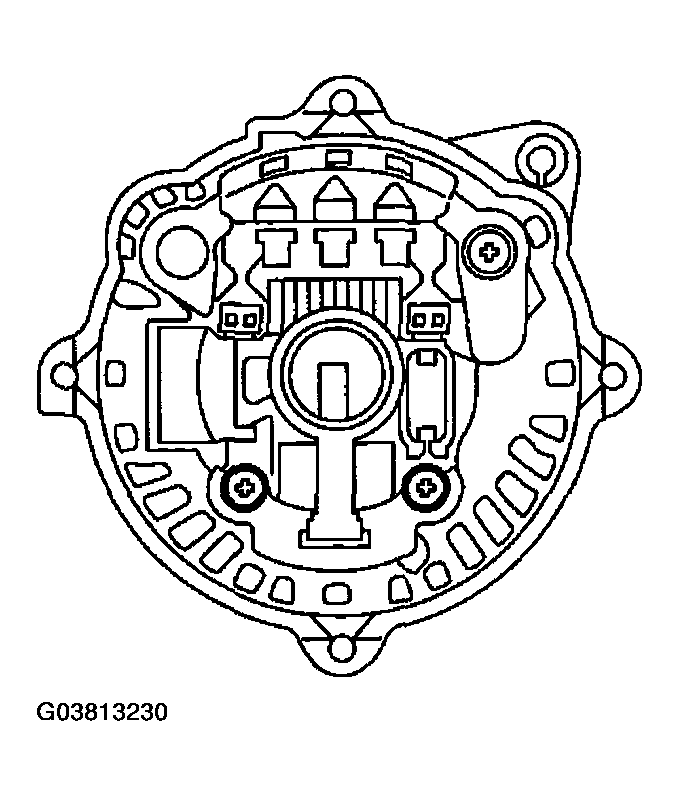

1. Remove the screws which secure IC regulator to rear cover.

  Fig 10: Removing IC Regulator To Rear Cover
  Courtesy of SUBARU OF AMERICA, INC.

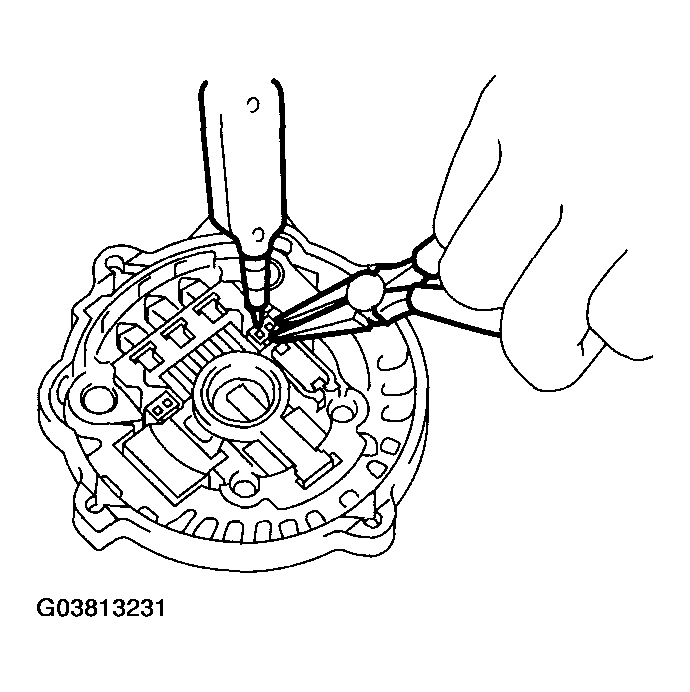

2. Unsolder the connection between IC regulator and rectifier to remove the IC regulator.

  Fig 11: Removing IC Regulator
  Courtesy of SUBARU OF AMERICA, INC.
Remove the brush as follows.
1. Remove cover A.

  Fig 12: Removing Brush Cover A
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove cover B.

  Fig 13: Removing Brush Cover B
  Courtesy of SUBARU OF AMERICA, INC.

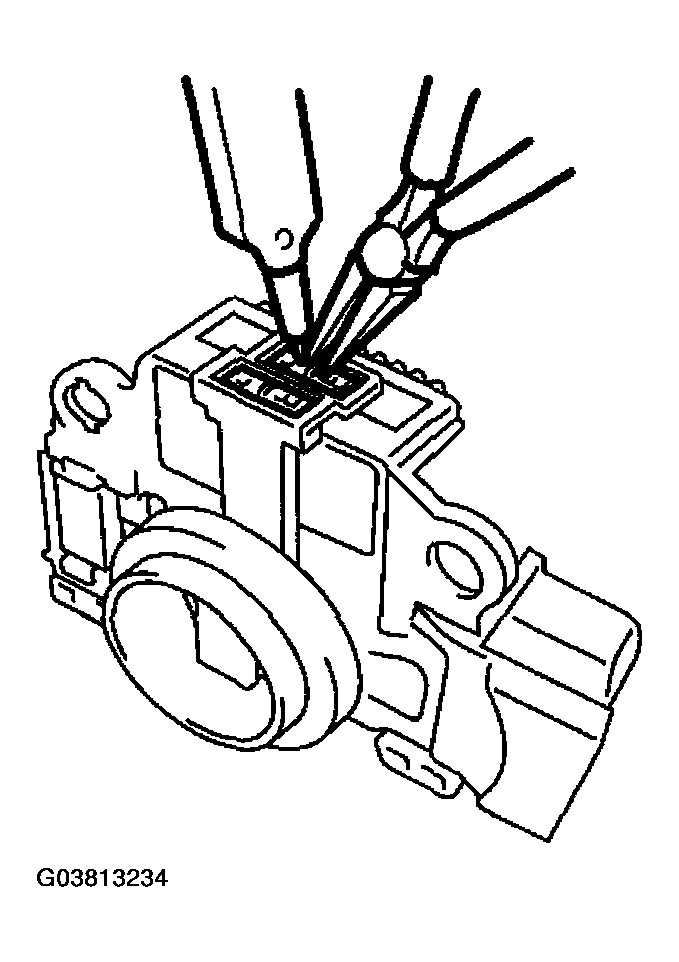

3. Separate the brush from connection to remove.

  Fig 14: Separating Brush From Connection
  Courtesy of SUBARU OF AMERICA, INC.
Remove the rectifier as follows.
1. Remove the bolts which secure the rectifier.

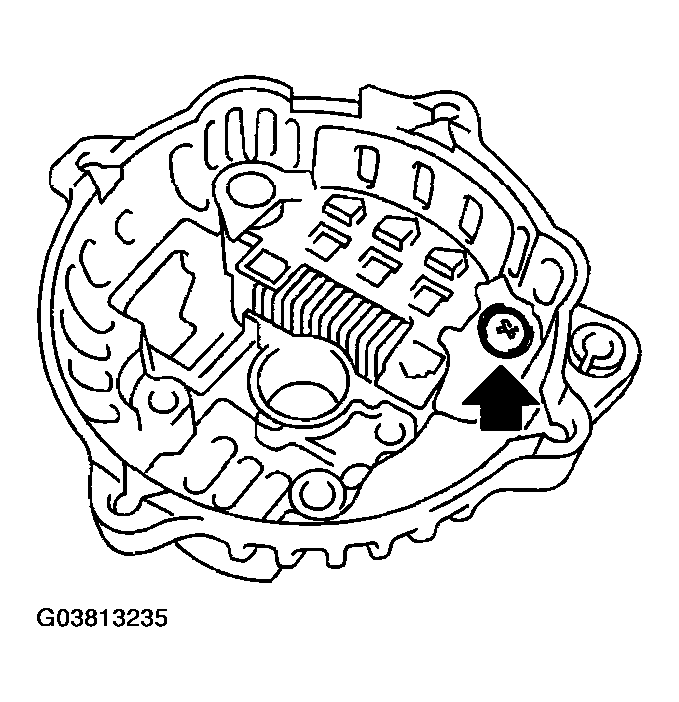

  Fig 15: Removing Bolts Of Rectifier
  Courtesy of SUBARU OF AMERICA, INC.

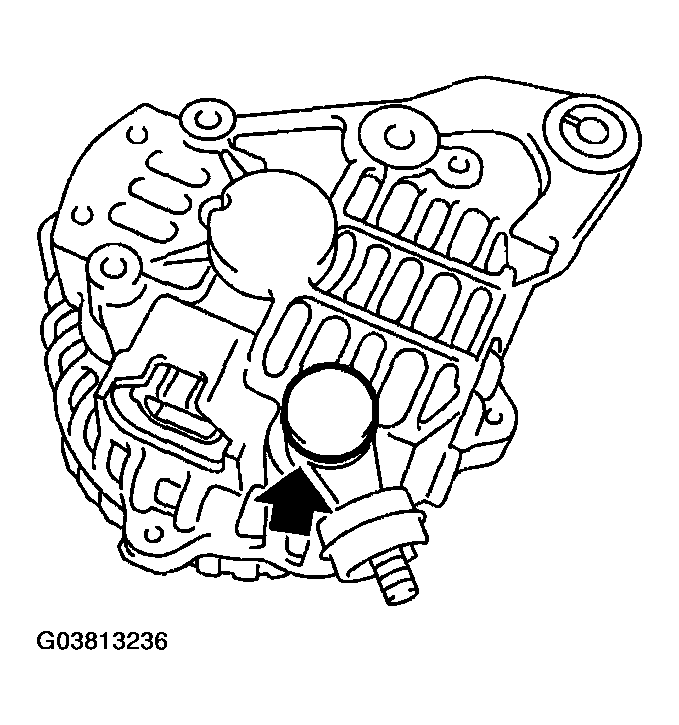

2. Remove the cover of terminal B.

  Fig 16: Removing Cover Of Terminal B
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove the nut of terminal B, and then remove the rectifier.

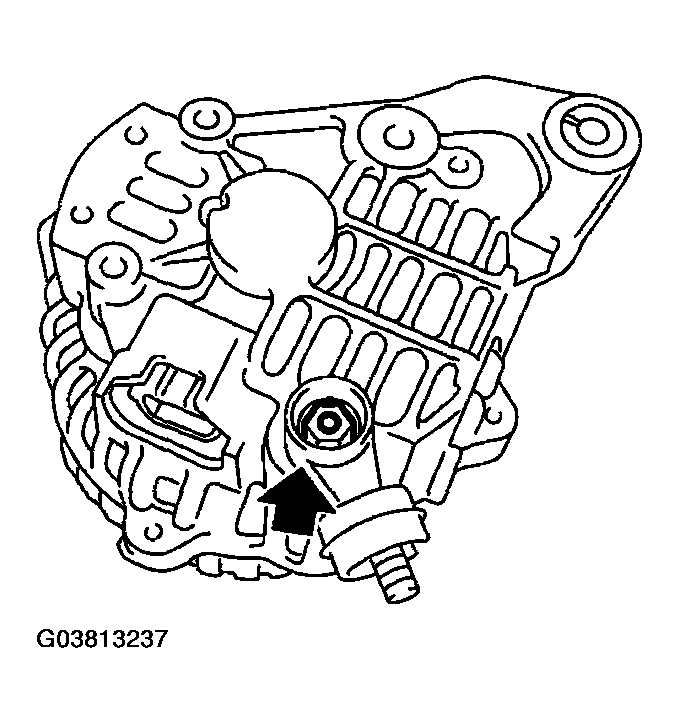

  Fig 17: Removing Nut Of Terminal B
  Courtesy of SUBARU OF AMERICA, INC.
