Starting/Charging Systems: Generator: Installation

Install in the reverse order of removal.

Tightening torque:

25 N.m (2.5 kgf-m, 18.1 ft-lb)

CAUTION: Check and adjust the V-belt tension. < Ref. to INSPECTION , V-belt. > < Ref. to INSPECTION , V-belt. >

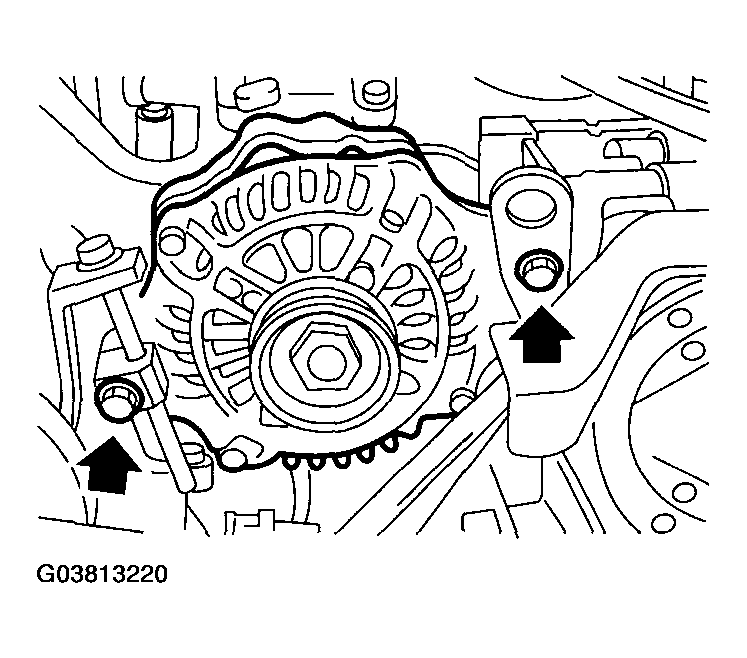

Fig 1: Tightening Bolts

Courtesy of SUBARU OF AMERICA, INC.
