Throttle Position Sensor: Removal

Disconnect the ground cable from battery.

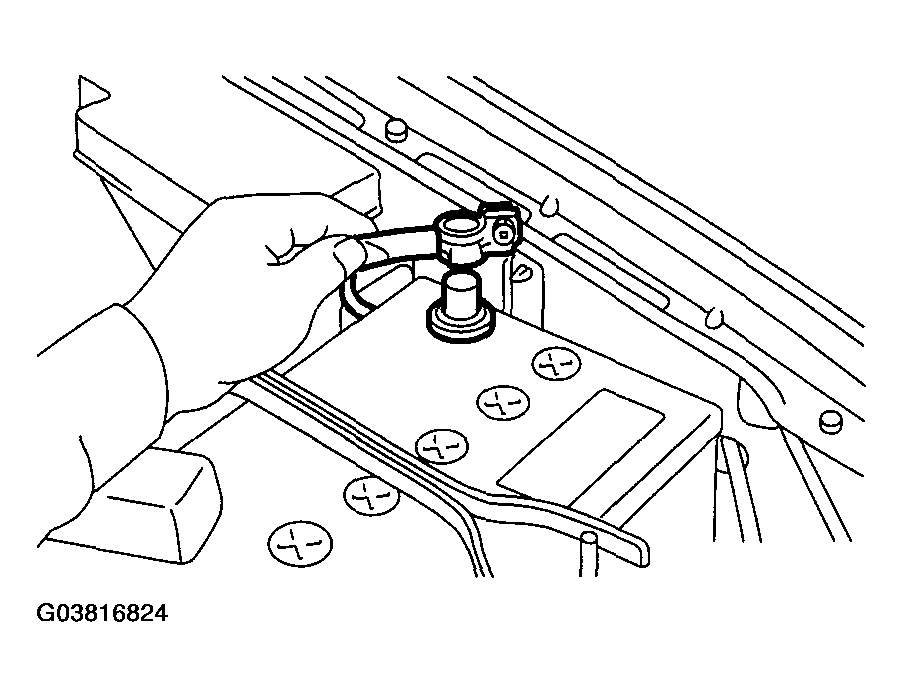

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the intercooler. < Ref. to REMOVAL , Intercooler. >
Disconnect the connector from the throttle position sensor.

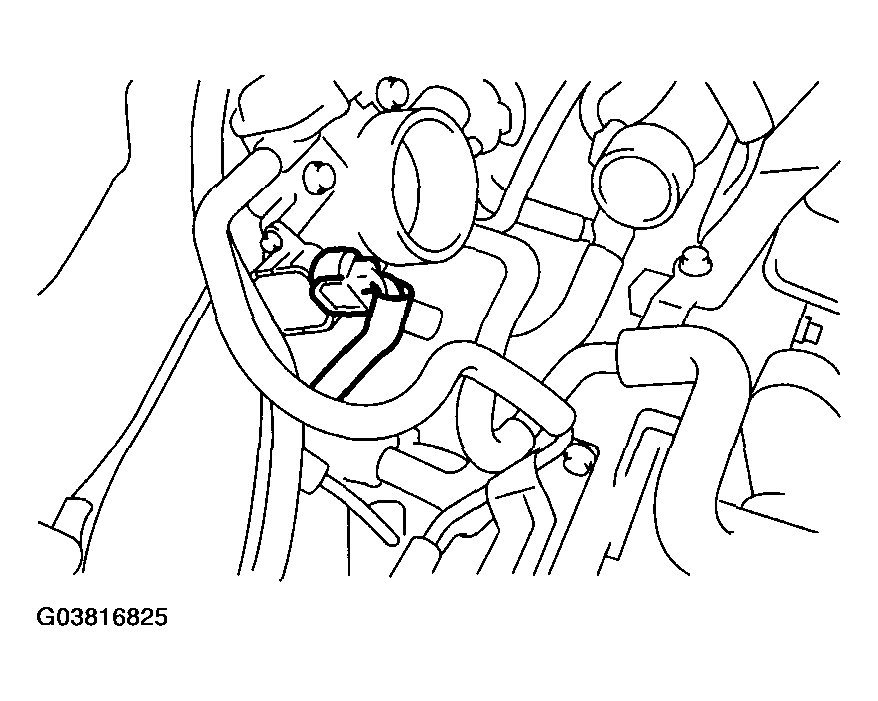

Fig 2: Disconnecting Connector From Throttle Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove the throttle position sensor holding screws, and remove the throttle position sensor.

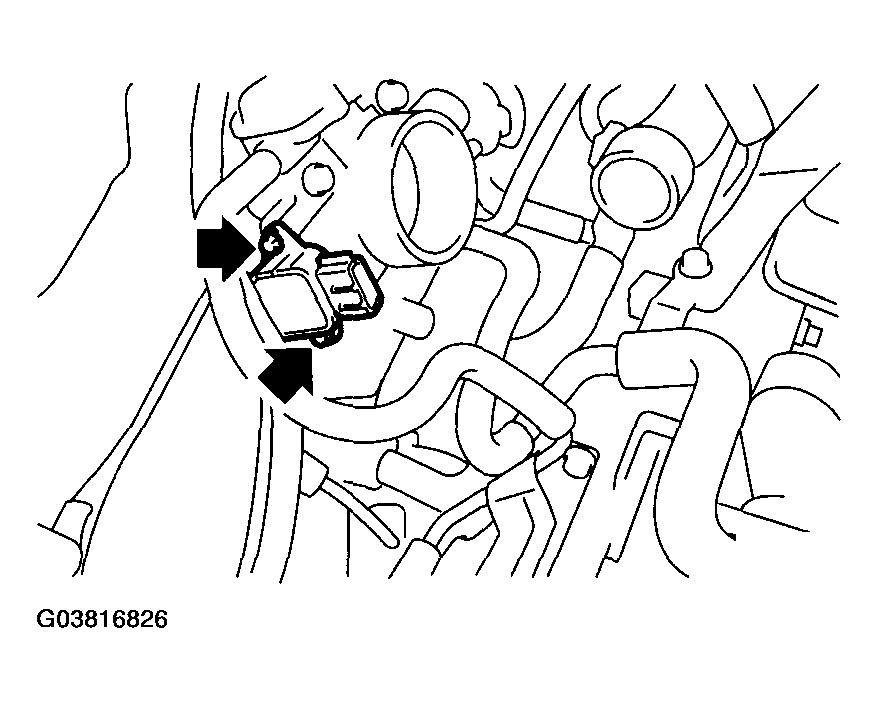

Fig 3: Removing Throttle Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
