SUBARU Select Monitor

1. Warm up the engine.
2. Prepare the Subaru Select Monitor kit. < Ref. to , PREPARATION TOOL , General Description. >

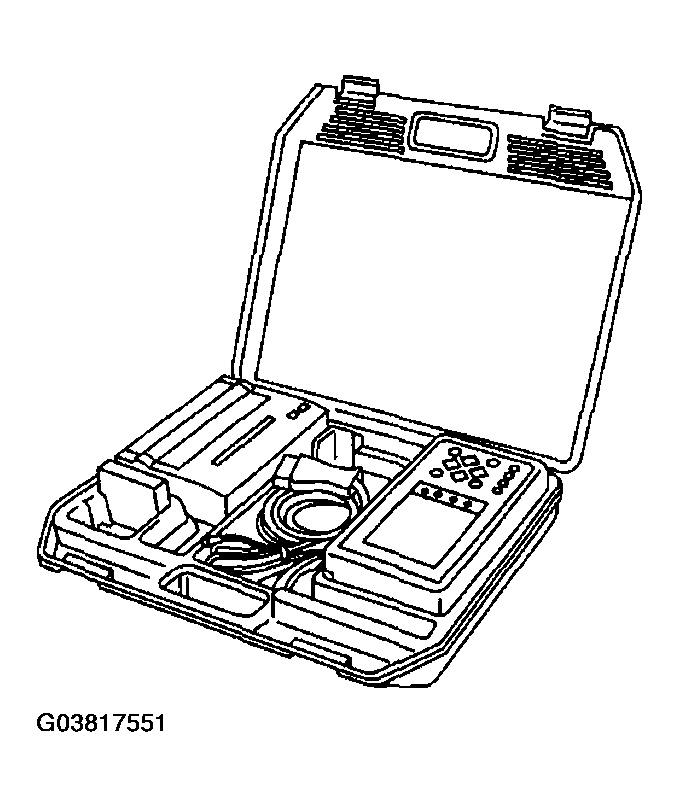

   Fig 1: Identifying Subaru Select Monitor Kit

   Courtesy of SUBARU OF AMERICA, INC.
3. Connect the diagnosis cable to Subaru Select Monitor.
4. Insert the cartridge into Subaru Select Monitor. < Ref. to , PREPARATION TOOL , General Description. >
   Fig 2: Inserting Cartridge Into Subaru Select Monitor

   Courtesy of SUBARU OF AMERICA, INC.
5. Connect the test mode connector (A) at the lower portion of instrument panel (on the driver's side).

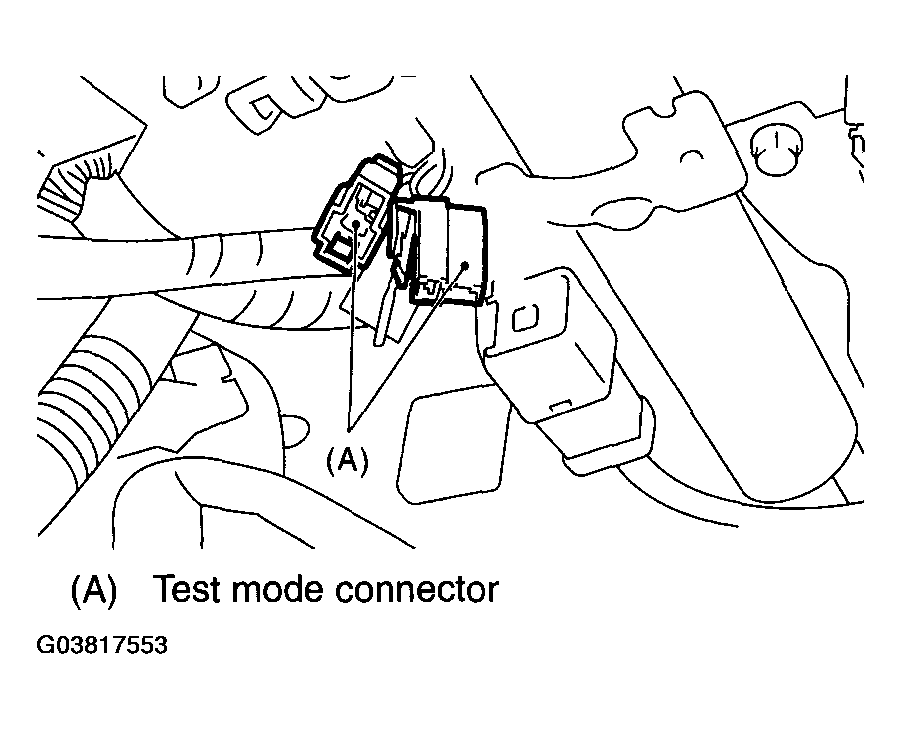

   Fig 3: Locating Test Mode Connector At Lower Portion Of Instrument Panel (On Driver Side)

   Courtesy of SUBARU OF AMERICA, INC.
6. Connect the Subaru Select Monitor to data link connector located in the lower portion of the instrument panel (on the driver's side).
   Fig 4: Locating Data Link Connector

   Courtesy of SUBARU OF AMERICA, INC.
   CAUTION: Do not connect the scan tools except for Subaru Select Monitor and OBD-II general scan tool.
7. Turn the ignition switch to ON (engine OFF) and Subaru Select Monitor switch to ON.
   Fig 5: Identifying Subaru Select Monitor Power Switch

   Courtesy of SUBARU OF AMERICA, INC.
8. On the < Main Menu > display screen, select the {2. Each System Check} and press the [YES] key.
9. On the < System Selection Menu > display screen, select the {Engine Control System} and press the [YES] key.
10. Press the [YES] key after the information of engine type is displayed.
11. On the < Engine Diagnosis > display screen, select the {Dealer Check Mode Procedure} and press the [YES] key.
12. When the "Perform Inspection (Dealer Check) Mode?" is shown on the display screen, press the [YES] key.
13. Perform subsequent procedures as instructed on the display screen.
    • If trouble still remains in the memory, the corresponding DTC appears on the display screen.

< Ref. to , LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . >

• Release the parking brake.
• The speed difference between front and rear wheels may light either the ABS warning light, but this indicates no malfunctions. When the engine control diagnosis is finished, perform the ABS memory clearance procedure of self-diagnosis system.
