Body Integrated Unit: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground cable from battery.

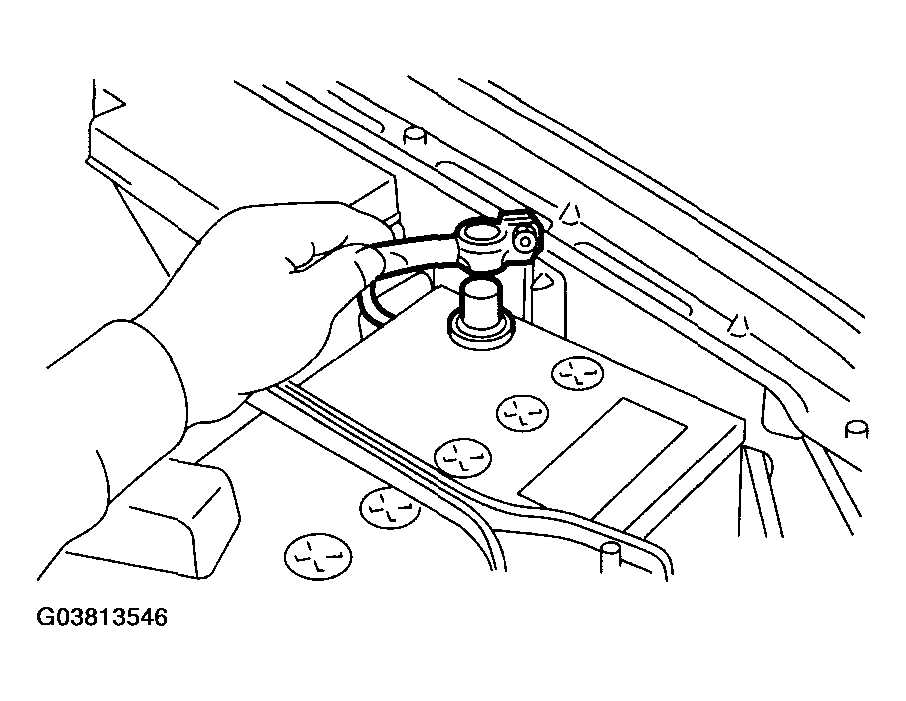

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the lower cover.

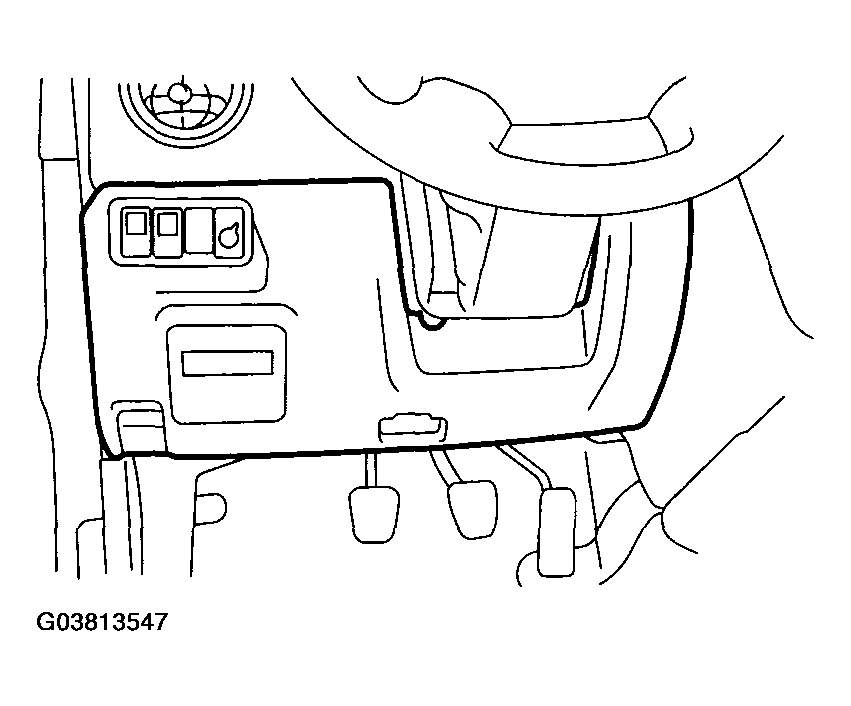

Fig 2: Removing Lower Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the knee bolster.

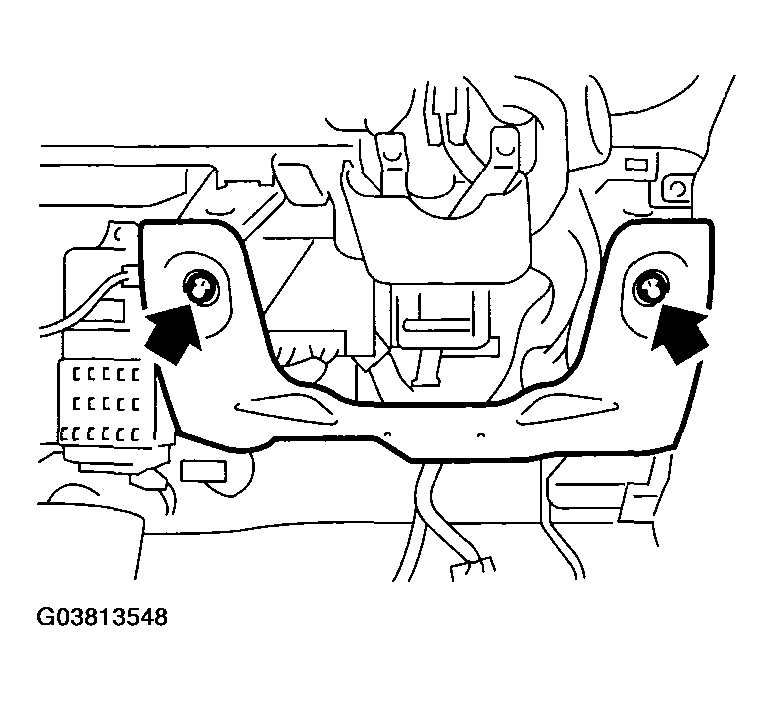

Fig 3: Removing Knee Bolster
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from body integrated unit.
Remove the body integrated unit.

Fig 4: Removing Body Integrated Unit
Courtesy of SUBARU OF AMERICA, INC.
