Exhaust System

COMPONENT

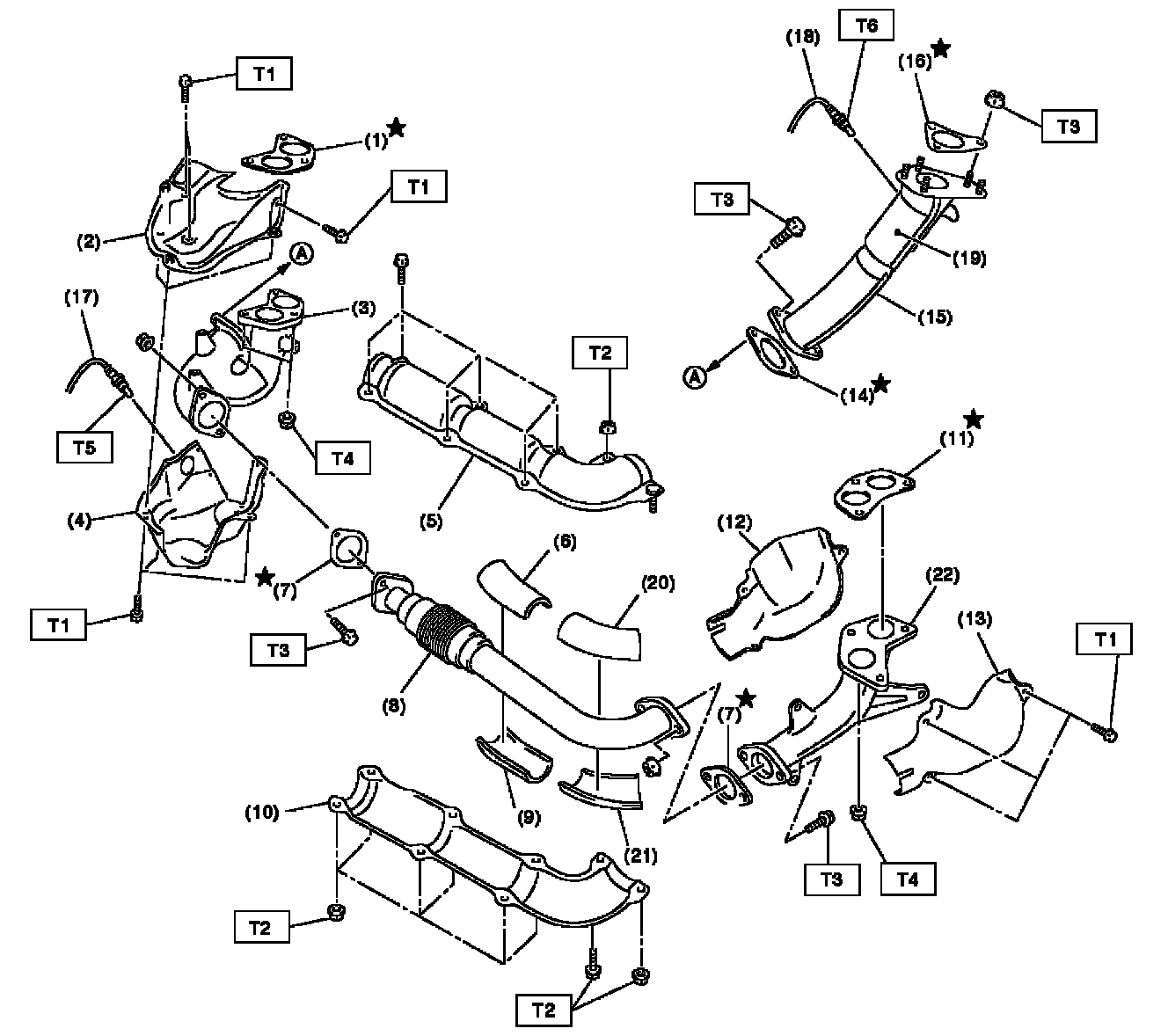

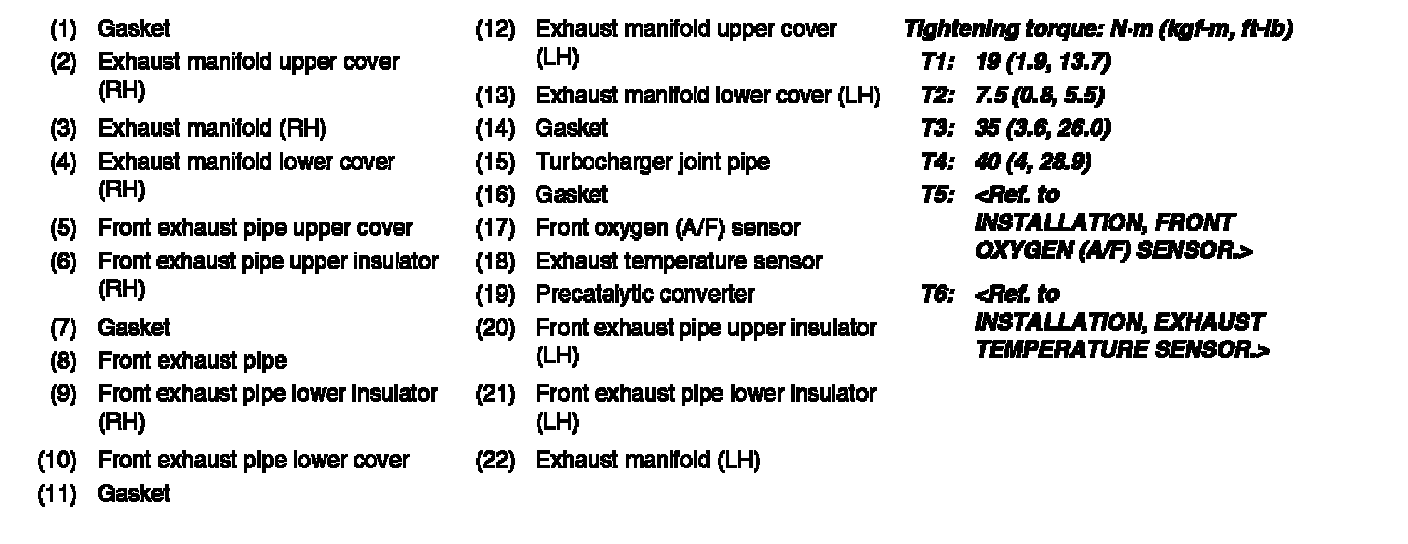

Part 1:

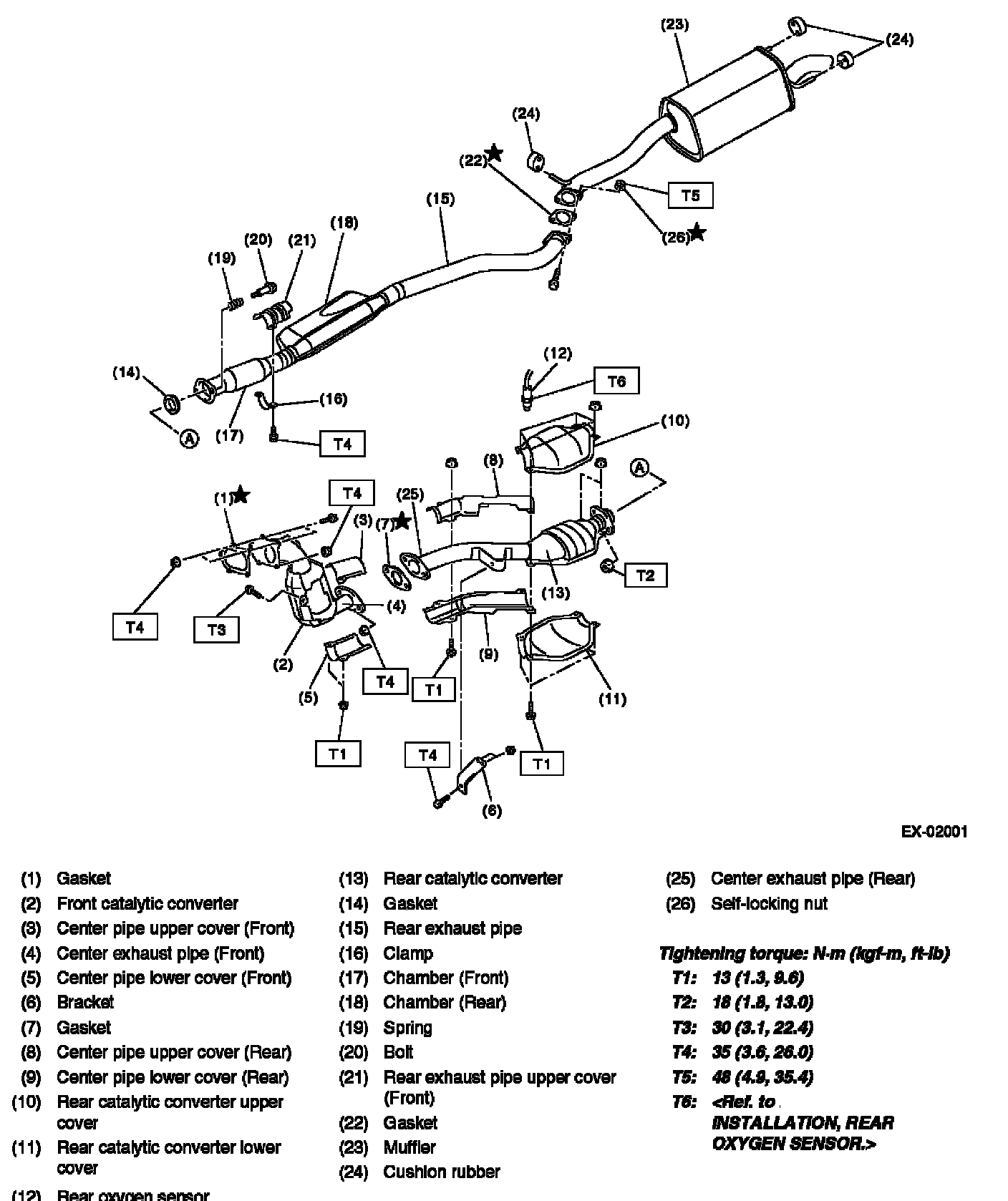

Part 2:





FRONT EXHAUST PIPE





CENTER AND REAR EXHAUST PIPE, AND MUFFLER
