Front Fender Reinforcement (Total Replacement)

FRONT FENDER REINFORCEMENT (TOTAL REPLACEMENT)

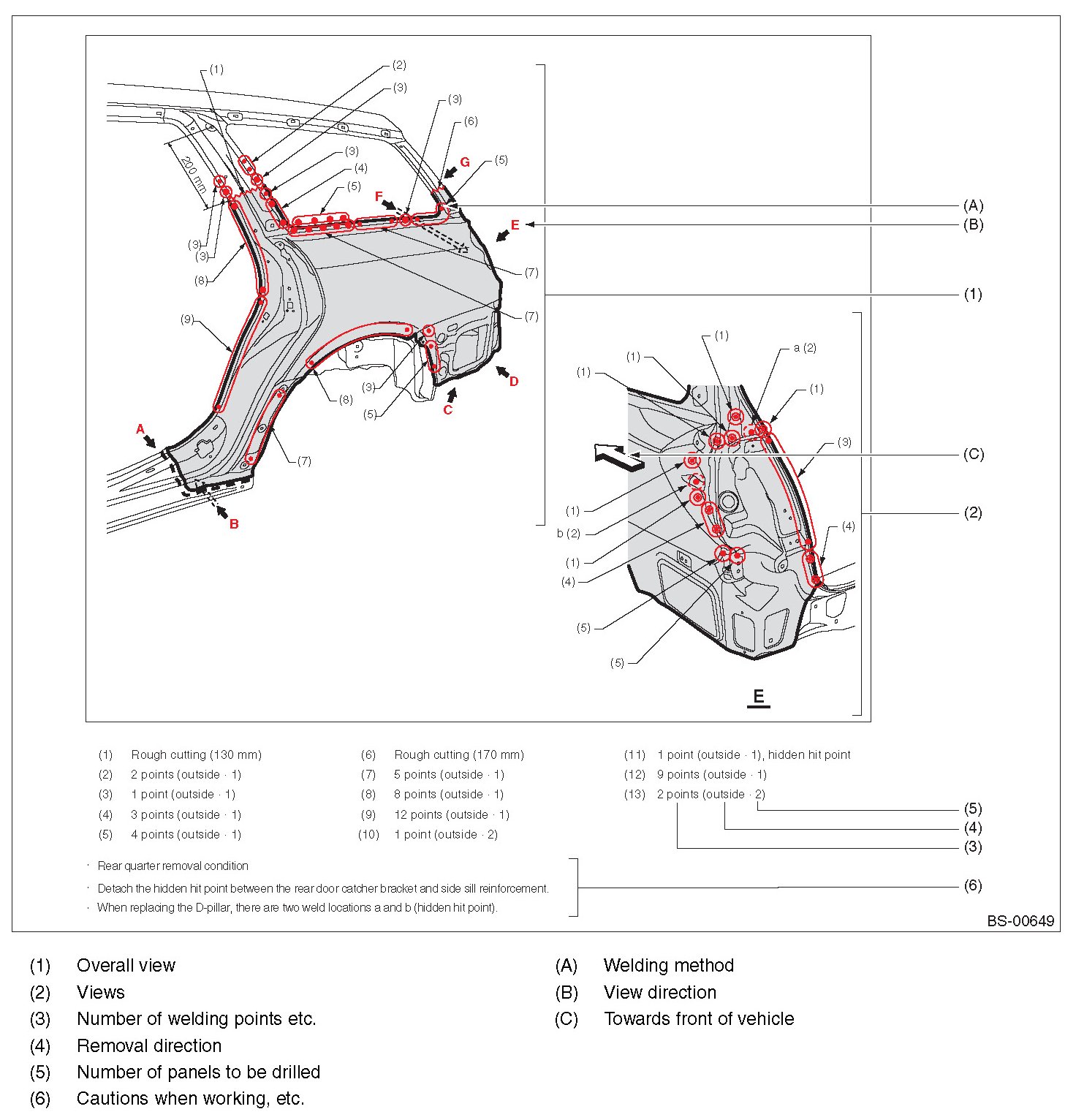

ILLUSTRATION EXAMPLE

- Symbols and number of points indicate the welding method and the number of welding points. Text in brackets indicate the direction of removal for welded parts, and numbers indicate the number of panels to be drilled to remove welded sections of panels.
- Areas enclosed by a broken line indicates work from the opposite side (rear side).
- Always apply anticorrosion wax to the welding locations when replacing panels.

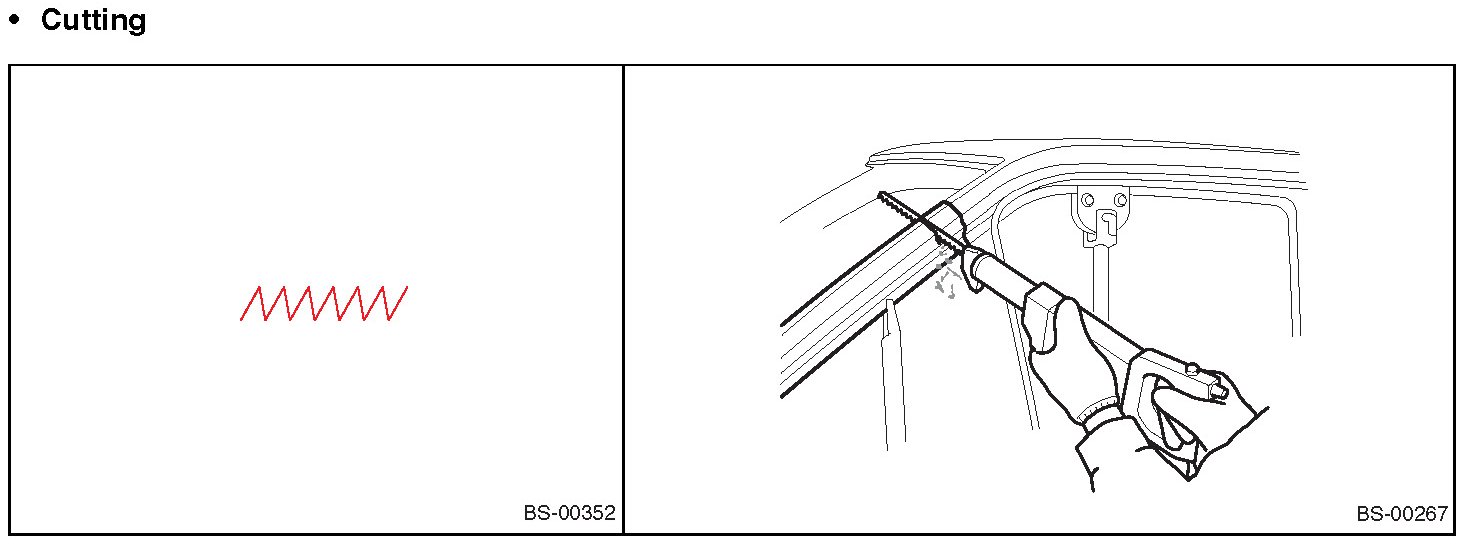

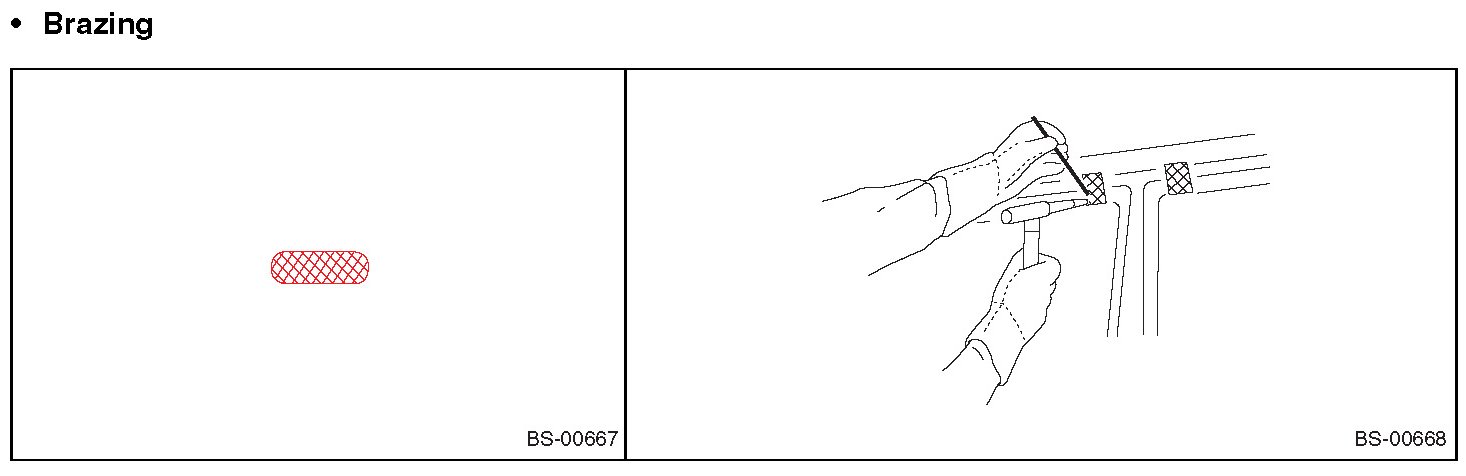

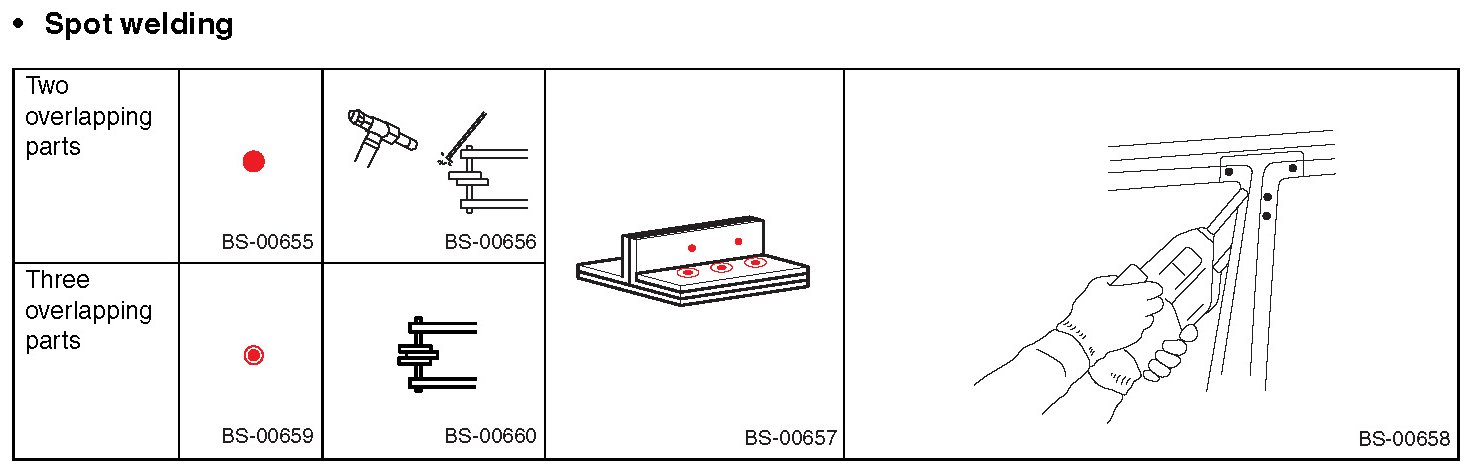

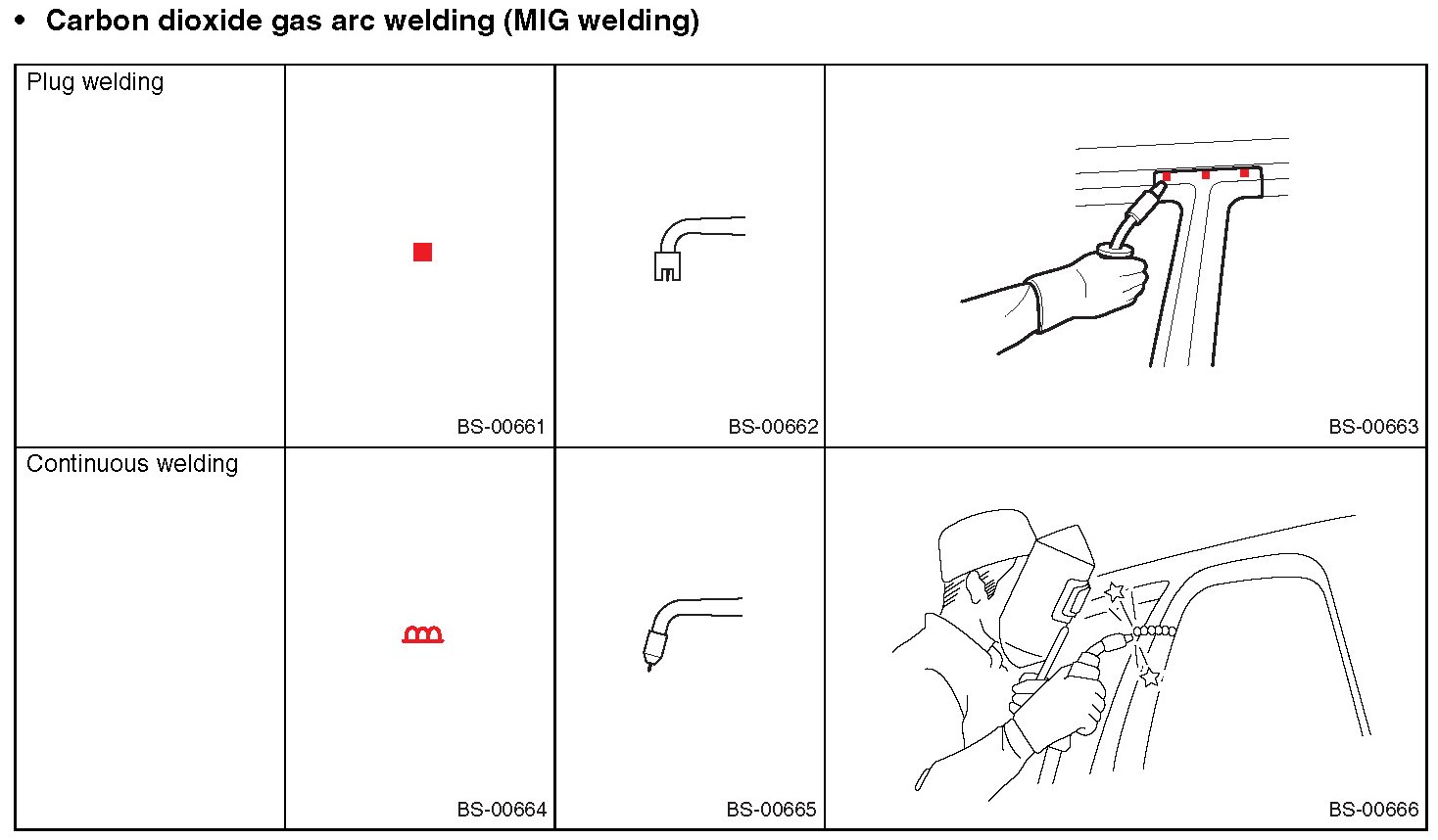

MEANING OF SYMBOLS















REMOVAL

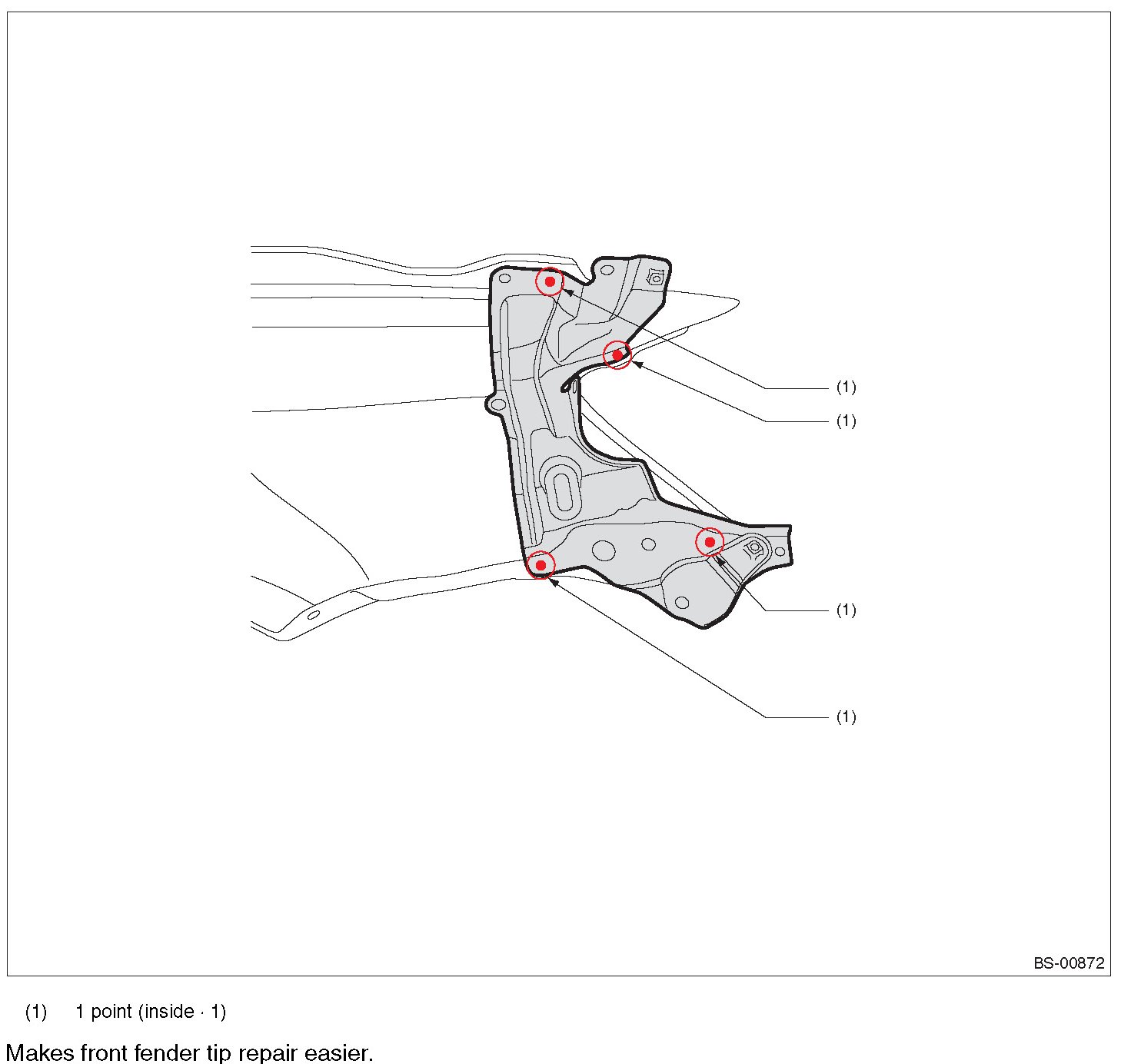

1. Frame fender removal condition

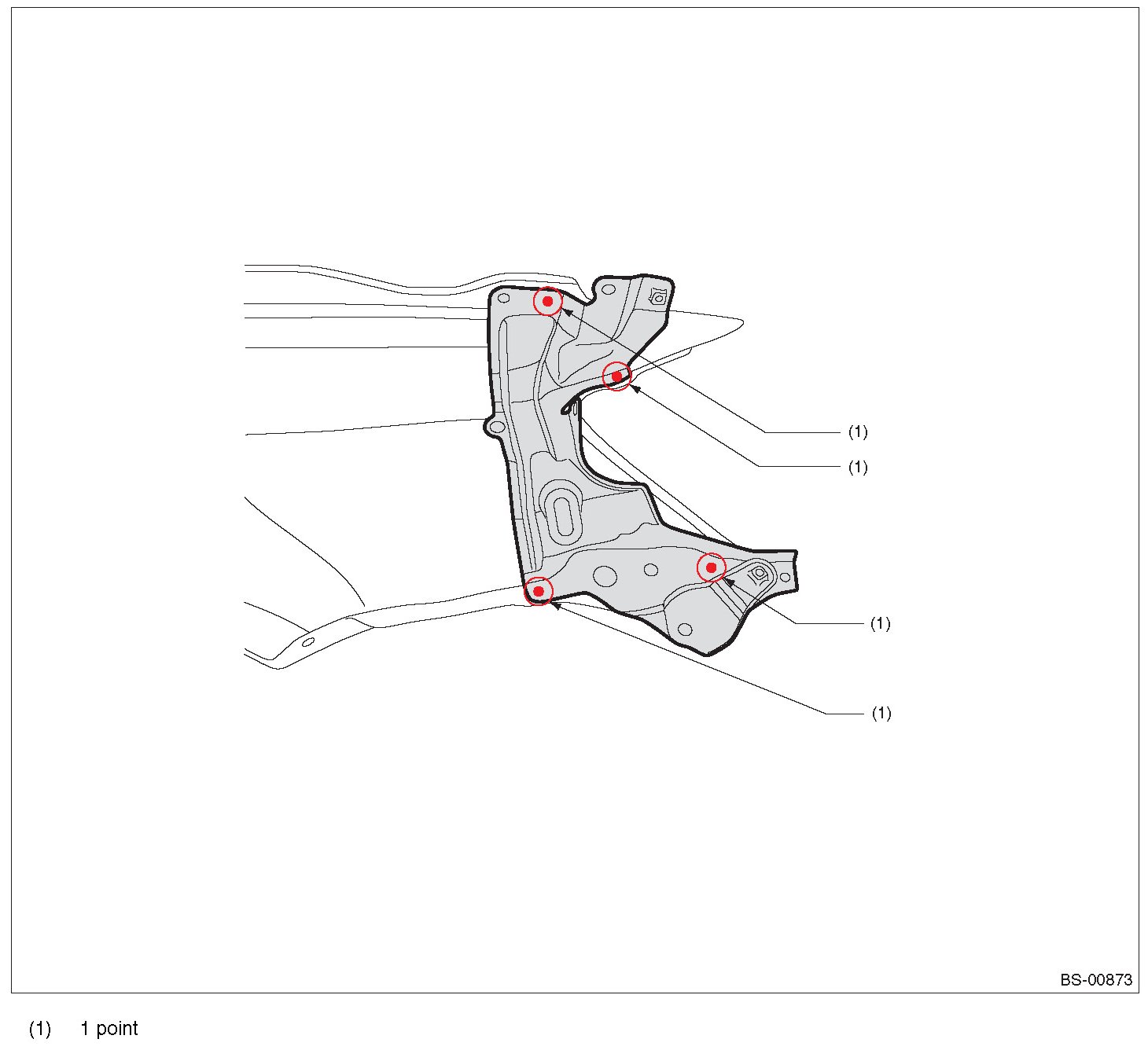

INSTALLATION
