Inspection of Sport Shift Indicator Light

INSPECTION OF SPORT SHIFT INDICATOR LIGHT

DIAGNOSIS
^ Output signal circuit of SPORT shift indicator light is open or shorted.

TROUBLE SYMPTOM
^ SPORT shift indicator light does not illuminate or remains illuminated.
^ SPORT shift indicator light display does not change.

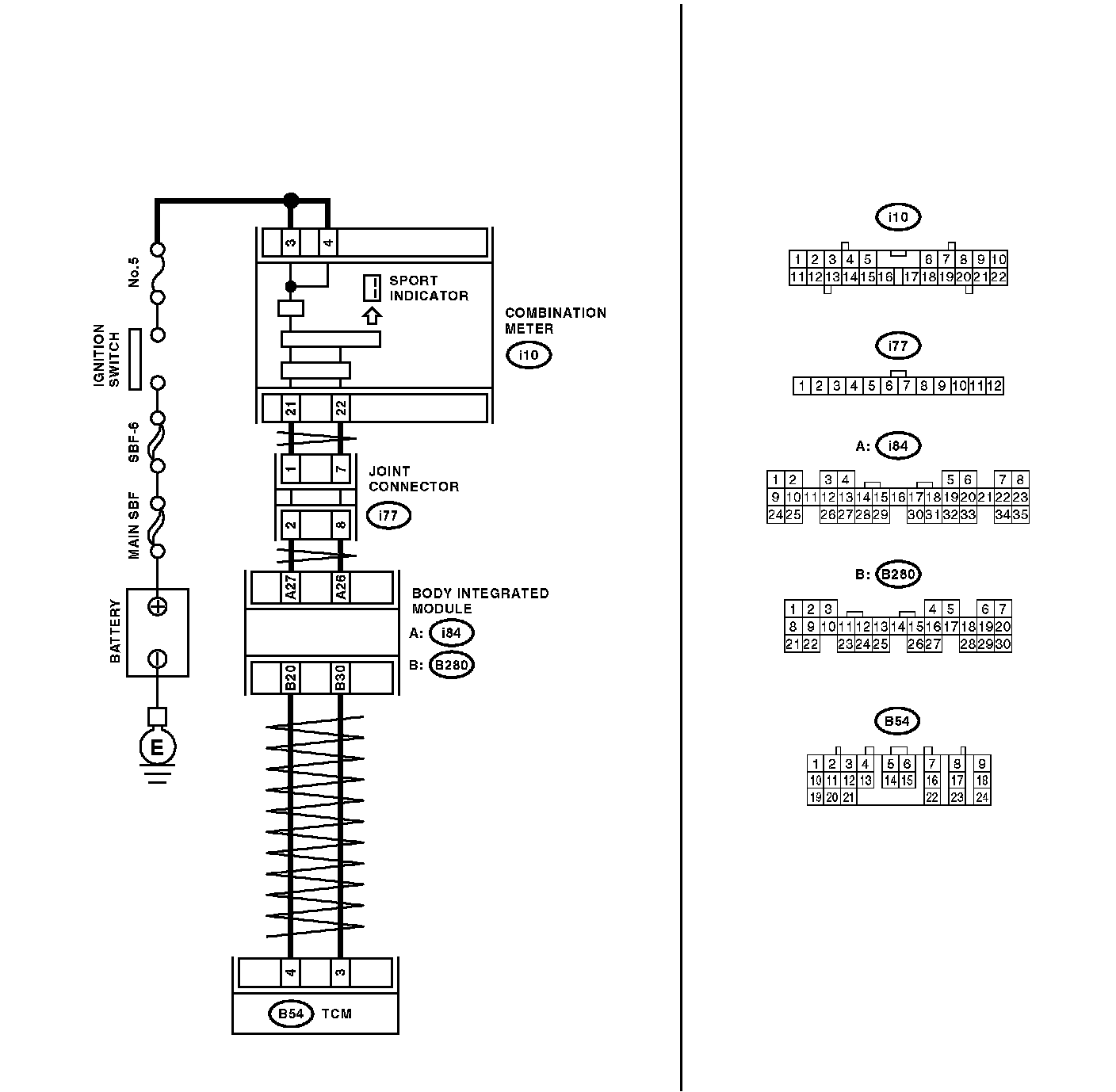

WIRING DIAGRAM
