Starting/Charging Systems (H4SO): Starter: Removal

Disconnect the ground cable from battery.

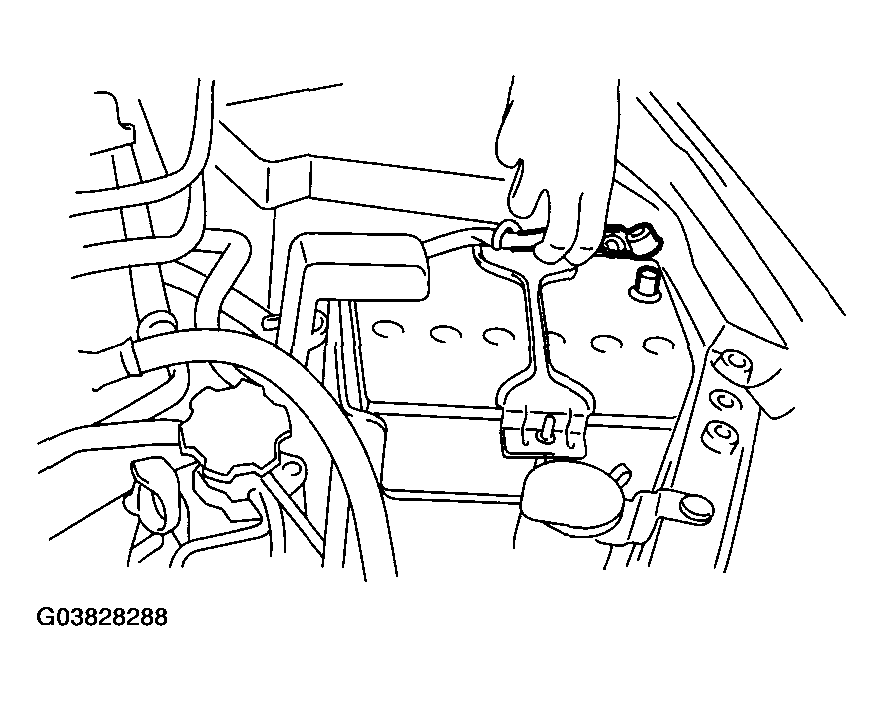

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake chamber. (Non-turbo model) < Ref. to REMOVAL , Air Intake Chamber for (H4SO model) & REMOVAL , Air Intake Chamber for (H6DO model).
Remove the intercooler. (Turbo model)
< Ref. to REMOVAL , Intercooler. >
Remove the air intake chamber stay LH. (2.5L Non-turbo model).
Disconnect the connector and terminal from starter.

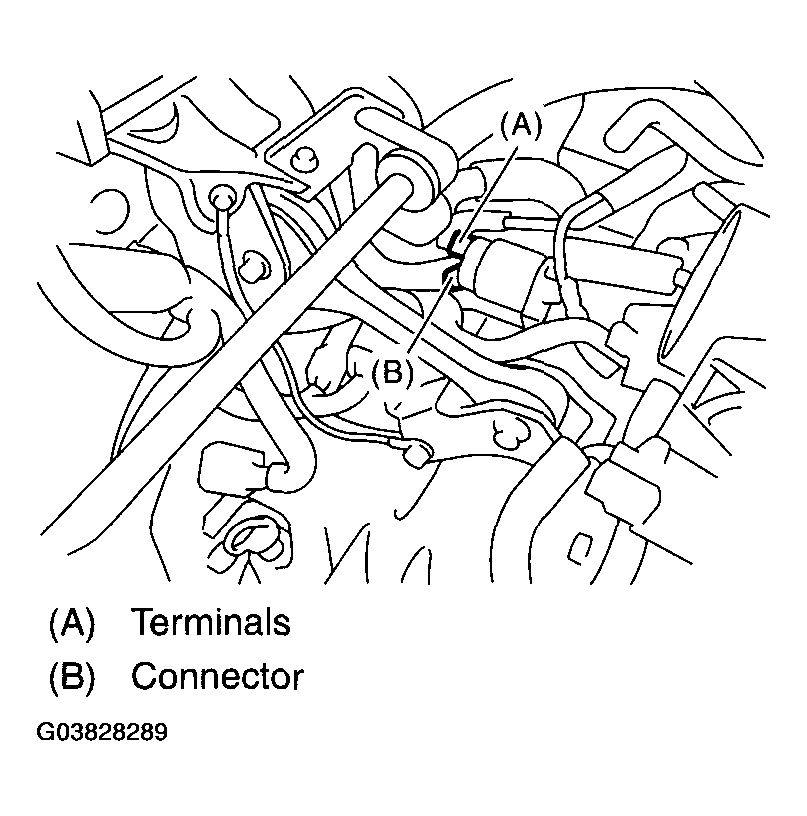

Fig 2: Disconnecting Connector And Terminal From Starter
Courtesy of SUBARU OF AMERICA, INC.
Remove the starter from transmission.
