Fuse Index Information

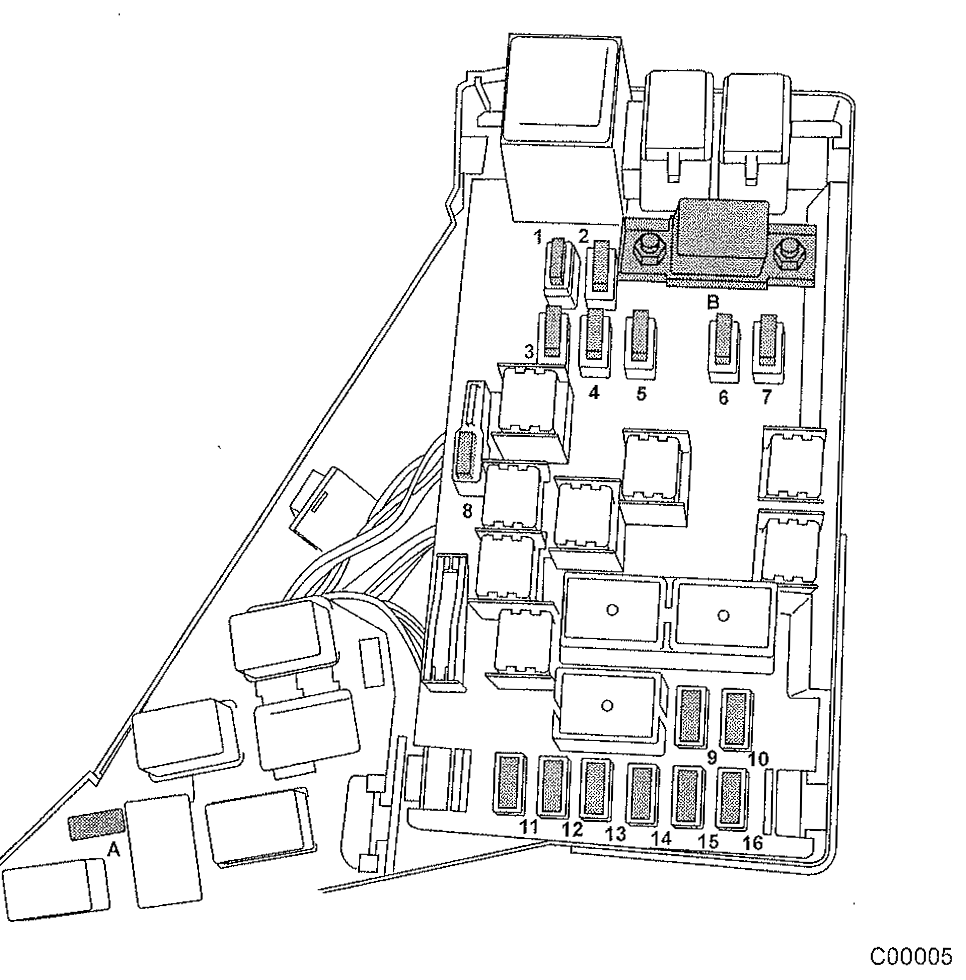

UNDER-HOOD FUSE/RELAY BOX INDEX
| Fuse No. | Fuse Rating | Circuit |
|---|---|---|
| A | - | FWD socket (AT vehicles - except Turbo models and 3.0-liter models) |
| B | - | Main fuse |
| 1 | 30A | ABS unit Vehicle Dynamics Control Unit |
| 2 | 25A | Main fan |
| 3 | 25A | Sub fan (Except 3.0L models) |
| 4 | 25A | Main fan (3.0L models) |
| 5 | 20A | Empty |
| 6 | 15A | Headlight (Right side) |
| 7 | 15A | Headlight (Left side) |
| 8 | 20A | Backup |
| 9 | 15A | Horn |
| 10 | 25A | Rear window defogger |
| 11 | 15A | Fuel pump |
| 12 | 15A | Automatic Transmission Control Unit |
| 13 | 7.5A | Engine Control Unit |
| 14 | 15A | Turn & Hazard warning flashers |
| 15 | 20A | Parking switch |
| 16 | 7.5A | Alternator |
