Special Tools

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS NUMBER AND DESCRIPTION

ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
Fig 1 922431000 AXLE SHAFT INSTALLER
  • Used for installing axle shaft into housing.
  • Used with ADAPTER (927390000).
Fig 2 925091000 BAND TIGHTENING TOOL
  • Used for tightening boot band.
    1. Jig for band
    2. Ratchet wrench
Fig 3 926470000 AXLE SHAFT PULLER Used for removing axle shaft.
Fig 4 927060000 HUB REMOVER
  • Used for removing front hub.
  • Used with HUB STAND (927080000).
Fig 5 927080000 HUB STAND Used for disassembling and assembling hub bolt in hub.
Fig 6 927100000 BEARING PULLER
  • Used for disassembling and assembling front housing bearing.
  • Used with HOUSING STAND (927400000).
Fig 7 927140000 AXLE SHAFT PULLER PLATE Same as plate 2 included in AXLE SHAFT PULLER (926470000).
Fig 8 927390000 ADAPTER Used as an adapter for AXLE SHAFT INSTALLER (922431000).
Fig 9 927400000 HOUSING STAND
  • Used for disassembling and assembling front housing bearing.
  • Used with BEARING PULLER (927100000).
Fig 10 927410000 OIL SEAL INSTALLER
  • Used for installing oil seal into front housing.
  • Used with HOUSING STAND (927400000).
Fig 11 18675AA000 DIFFERENTIAL SIDE OIL SEAL INSTALLER Used for installing differential side retainer oil seal.
Fig 12 398507703 DUMMY COLLAR Used for removing hub ASSY from hub unit.
Fig 13 399520105 SEAT Used for removing inner race from hub ASSY.
Fig 14 28499AE000 BEARING SPACER Used for installing hub unit into hub ASSY.
Fig 15 927120000 HUB INSTALLER Used for installing hub.
Fig 16 927450000 HUB INSTALLER
  • Used for installing hub unit into hub ASSY.
  • Used with BEARING SPACER (28499AE000) and HUB STAND (927080000).
Fig 17 28399SA010 OIL SEAL PROTECTOR
  • Used for installing front drive shaft into front differential.
  • For protecting oil seal.
Fig 18 28099PA090 OIL SEAL PROTECTOR
  • Used for installing rear drive shaft into rear differential.
  • For protecting oil seal.
Fig 19 28099PA100 DRIVE SHAFT REMOVER Used for removing rear drive shaft from rear differential.
Fig 20 28099AC000 BOOT BAND PLIERS Used for tightening front BJ boot band.
Fig 1: Identifying Special Tool ST922431000
G03751579Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Identifying Special Tool ST925091000
G03751580Courtesy of SUBARU OF AMERICA, INC.

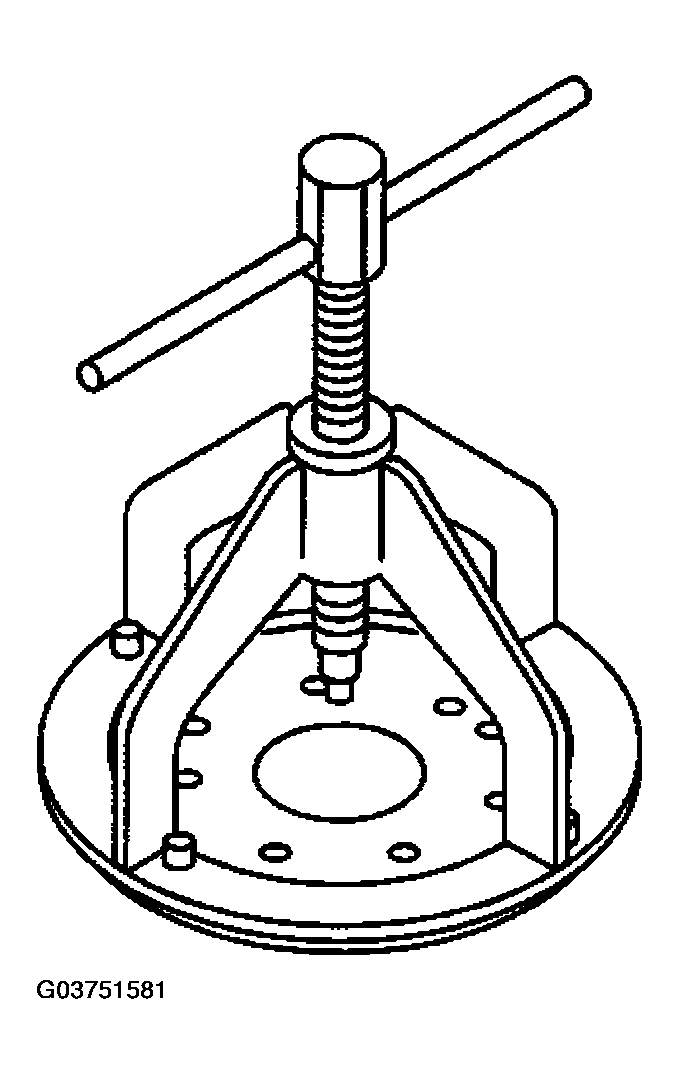

Fig 3: Identifying Special Tool ST926470000
G03751581Courtesy of SUBARU OF AMERICA, INC.
Fig 4: Identifying Special Tool ST927060000
G03751582Courtesy of SUBARU OF AMERICA, INC.
Fig 5: Identifying Special Tool ST927080000
G03751583Courtesy of SUBARU OF AMERICA, INC.
Fig 6: Identifying Special Tool ST927100000
G03751584Courtesy of SUBARU OF AMERICA, INC.
Fig 7: Identifying Special Tool ST927140000
G03751585Courtesy of SUBARU OF AMERICA, INC.
Fig 8: Identifying Special Tool ST927390000
G03751586Courtesy of SUBARU OF AMERICA, INC.
Fig 9: Identifying Special Tool ST927400000
G03751587Courtesy of SUBARU OF AMERICA, INC.
Fig 10: Identifying Special Tool ST927410000
G03751588Courtesy of SUBARU OF AMERICA, INC.

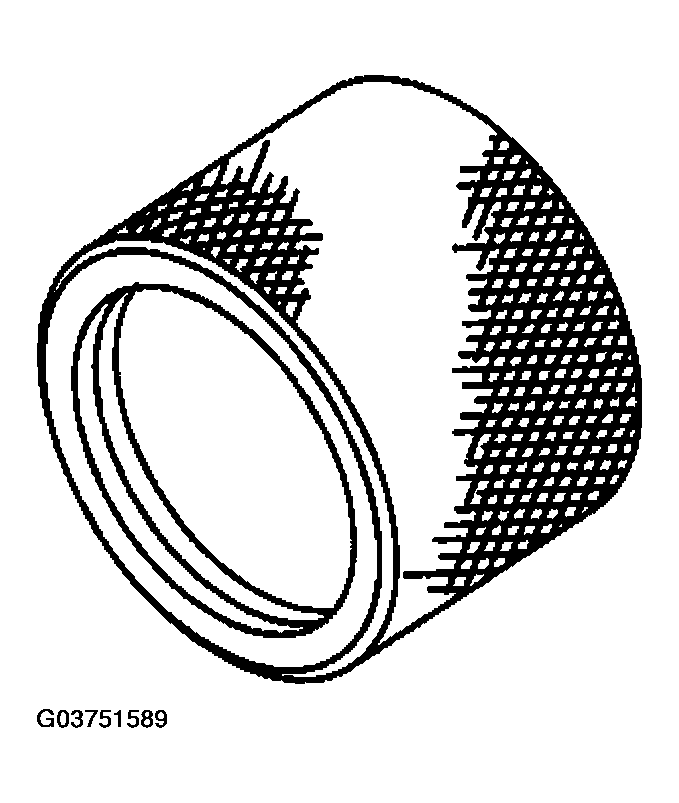

Fig 11: Identifying Special Tool ST18675AA000
G03751589Courtesy of SUBARU OF AMERICA, INC.
Fig 12: Identifying Special Tool ST398507703
G03751590Courtesy of SUBARU OF AMERICA, INC.
Fig 13: Identifying Special Tool ST399520105
G03751591Courtesy of SUBARU OF AMERICA, INC.
Fig 14: Identifying Special Tool ST28499AE000
G03751592Courtesy of SUBARU OF AMERICA, INC.
Fig 15: Identifying Special Tool ST927120000
G03751593Courtesy of SUBARU OF AMERICA, INC.
Fig 16: Identifying Special Tool ST927450000
G03751594Courtesy of SUBARU OF AMERICA, INC.
Fig 17: Identifying Special Tool ST28399SA010
G03751595Courtesy of SUBARU OF AMERICA, INC.
Fig 18: Identifying Special Tool ST28099PA090
G03751596Courtesy of SUBARU OF AMERICA, INC.
Fig 19: Identifying Special Tool ST28099PA100
G03751597Courtesy of SUBARU OF AMERICA, INC.
Fig 20: Identifying Special Tool ST28099AC000
G03751598Courtesy of SUBARU OF AMERICA, INC.
