Propeller Shaft: Removal

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Before removing propeller shaft, wrap metal parts with a cloth or rubber material.
  • In case of DOJ type, before removing propeller shaft, wrap metal parts (installed at the rubber boot of center DOJ) with a cloth or rubber material, as shown in Fig 1 . Rubber boot may be damaged due to interference with adjacent metal parts while bending the DOJ during removal.
Fig 1: Wrapping Metal Parts With Cloth
G03751599Courtesy of SUBARU OF AMERICA, INC.
  1. Disconnect ground cable from battery.
  2. Move select lever or gear shift lever to "N".
  3. Release the parking brake.
  4. Jack-up vehicle and support it with safety stands.
  5. Remove center exhaust pipes.
  6. Remove rear exhaust pipe and muffler.
  7. Remove heat shield cover.
    Fig 2: Removing Heat Shield Cover
    G03751600Courtesy of SUBARU OF AMERICA, INC.
  8. Put matching marks on propeller shaft and rear differential.
  9. Remove the four bolts which hold propeller shaft to rear differential.
    NOTE: Remove all but one bolt.

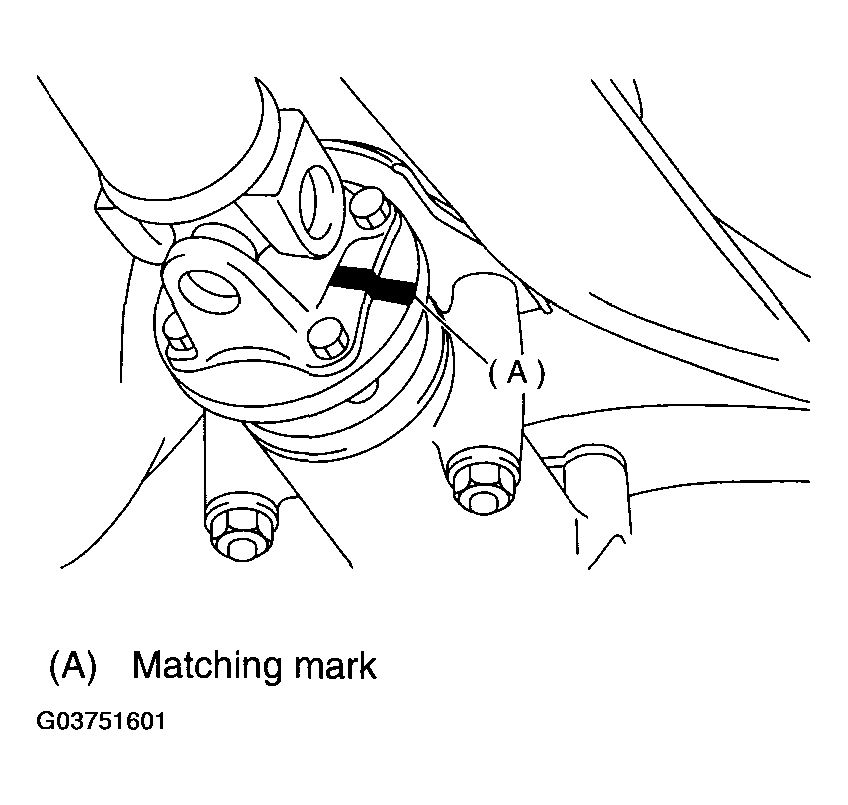

    Fig 3: Putting Matching Marks On Propeller Shaft And Rear Differential
    G03751601Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the two bolts which hold center bearing to vehicle body.
    Fig 4: Locating Bolts Which Hold Center Bearing To Vehicle Body
    G03751602Courtesy of SUBARU OF AMERICA, INC.
  11. Remove propeller shaft from transmission.
    CAUTION: Be careful not to damage oil seals and the mating surface of sleeve yoke.
    NOTE:
    • Be sure to use an empty oil can to catch oil flowing out when removing propeller shaft.
    • Be sure to plug the opening in transmission after removal of propeller shaft.

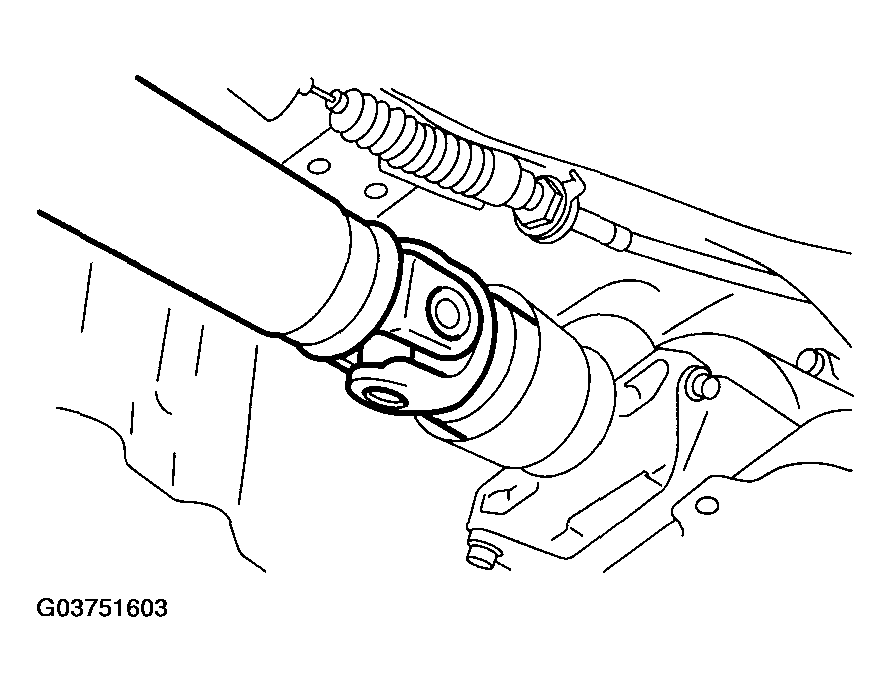

    Fig 5: Removing Propeller Shaft From Transmission
    G03751603Courtesy of SUBARU OF AMERICA, INC.
  12. Install the extension cap to transmission.
    NOTE: If extension cap is not available, cover the opening with a vinyl etc. and hold it with tape or code. Be careful not to spill gear oil or ATF leakage on the floor.

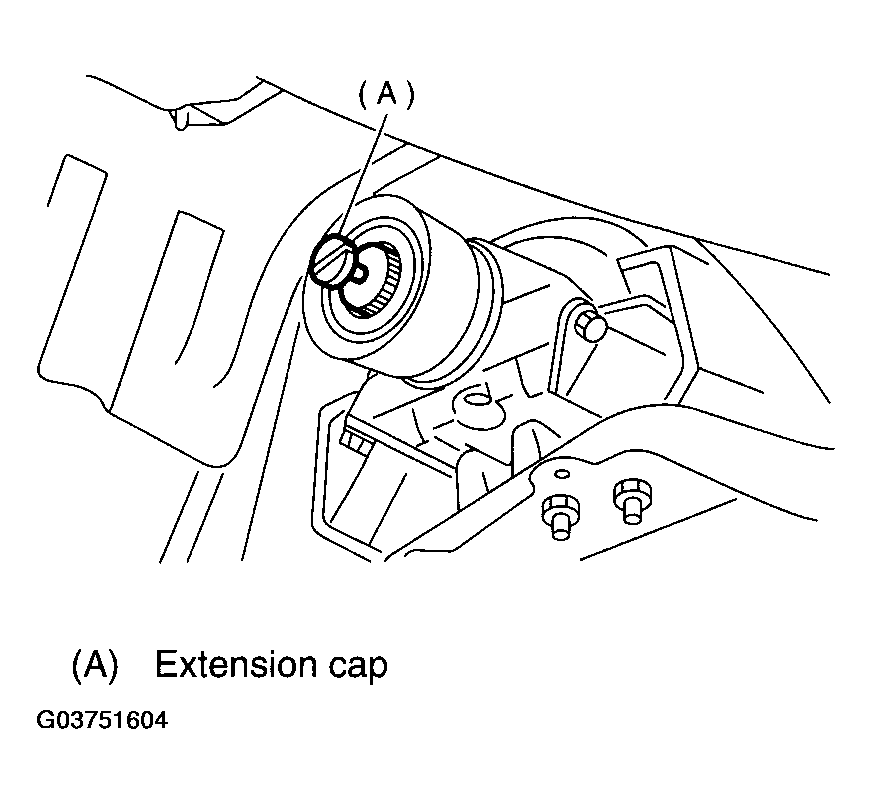

    Fig 6: Locating Extension Cap On Transmission
    G03751604Courtesy of SUBARU OF AMERICA, INC.
