Cargo Light System: Removal
WARNING:
This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
Remove bolts and remove high-mounted stop light.
Fig 1: Removing High-Mounted Stop Light
Courtesy of SUBARU OF AMERICA, INC.
Turn the socket and remove the bulb.

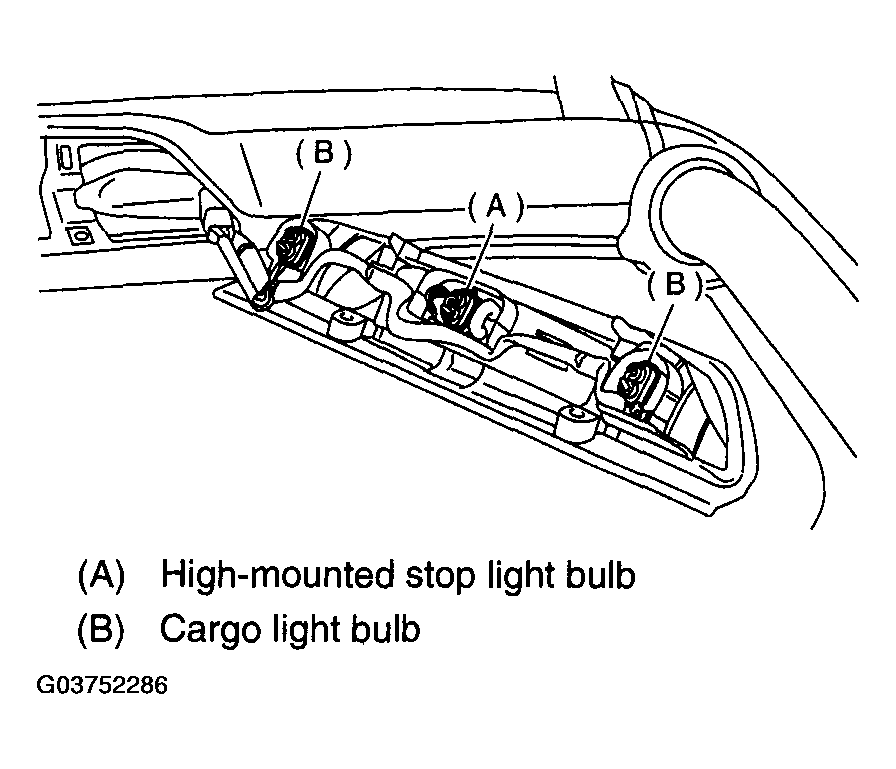

Fig 2: Identifying Cargo Light Bulb
Courtesy of SUBARU OF AMERICA, INC.
