Rear Combination Light Assembly: Removal

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect ground cable from battery.
  2. Open tail gate.
  3. Remove bolt cover.

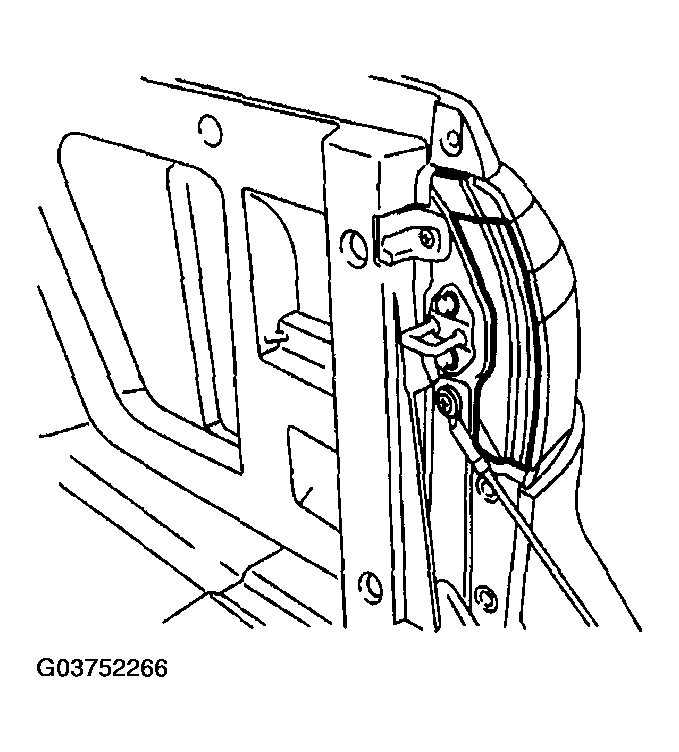

    Fig 1: Removing Bolt Cover
    G03752266Courtesy of SUBARU OF AMERICA, INC.
  4. Remove bolt and detach rear combination light assembly by pulling to the rear.

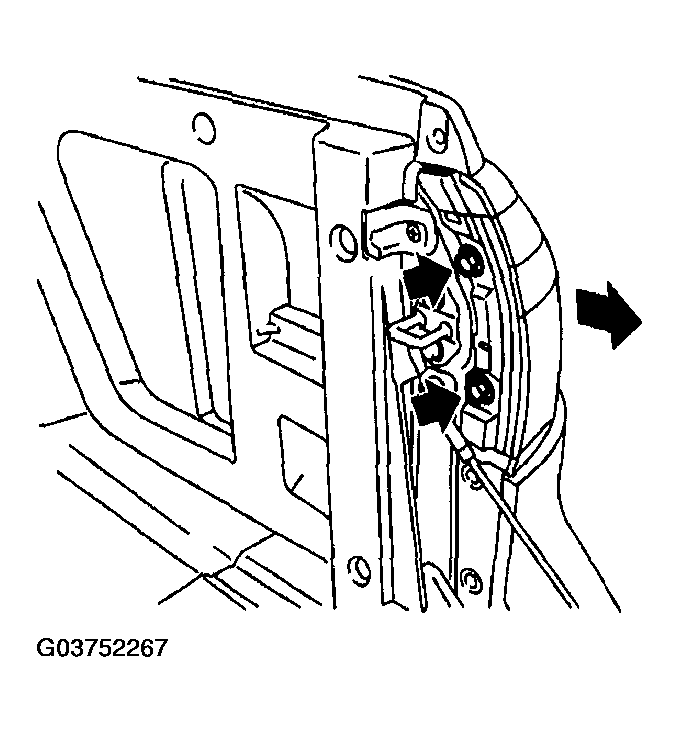

    Fig 2: Removing Bolt And Detaching Rear Combination Light Assembly
    G03752267Courtesy of SUBARU OF AMERICA, INC.
