3.0 L Model

  1. Replace the belts if crack, fraying or wear is found.
  2. Check that the V-belt automatic tensioner indicator (A) is within the range (D).

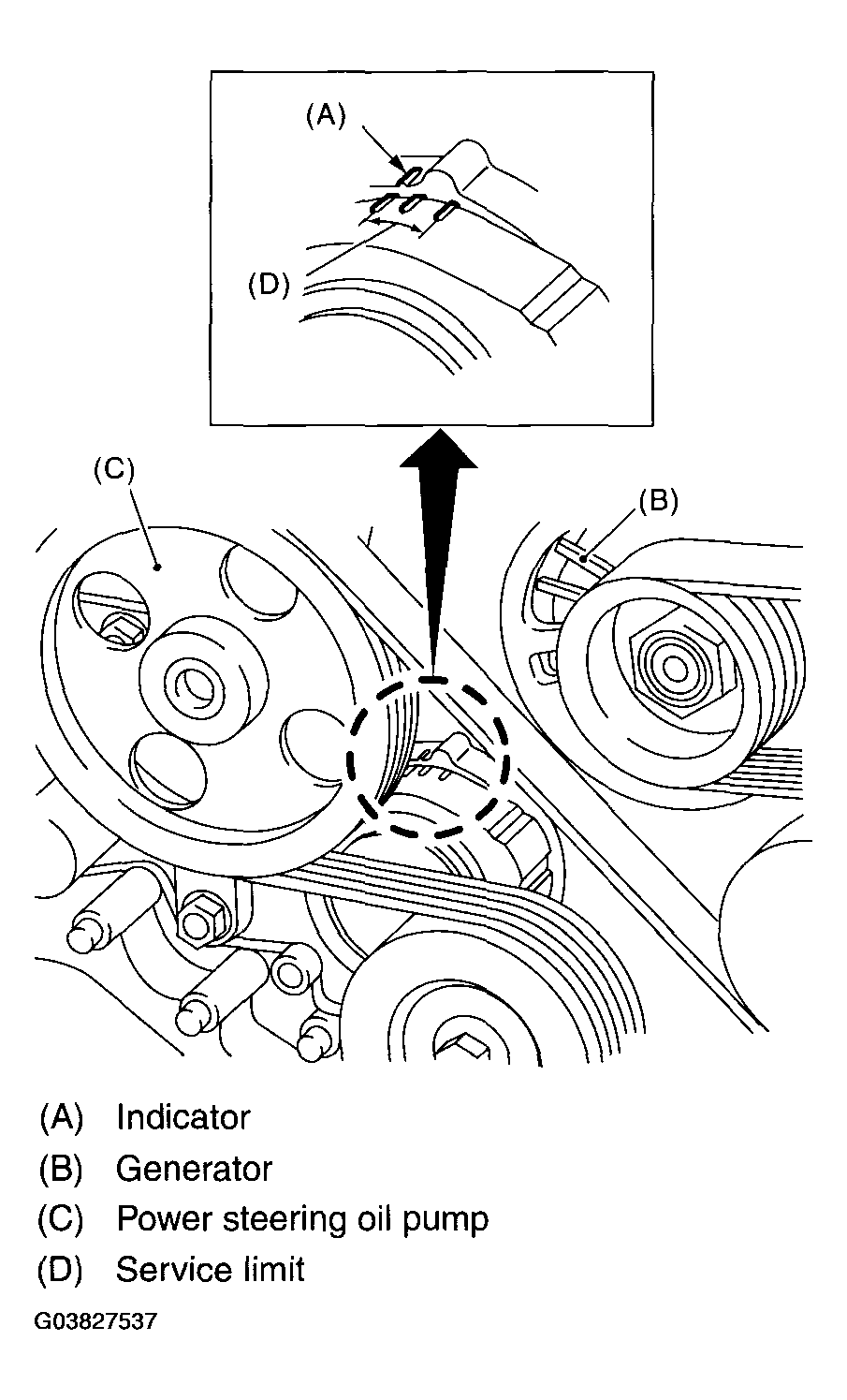

Fig 1: Checking V-Belt Automatic Tensioner Indicator
G03827537Courtesy of SUBARU OF AMERICA, INC.
