Front Brake: Construction

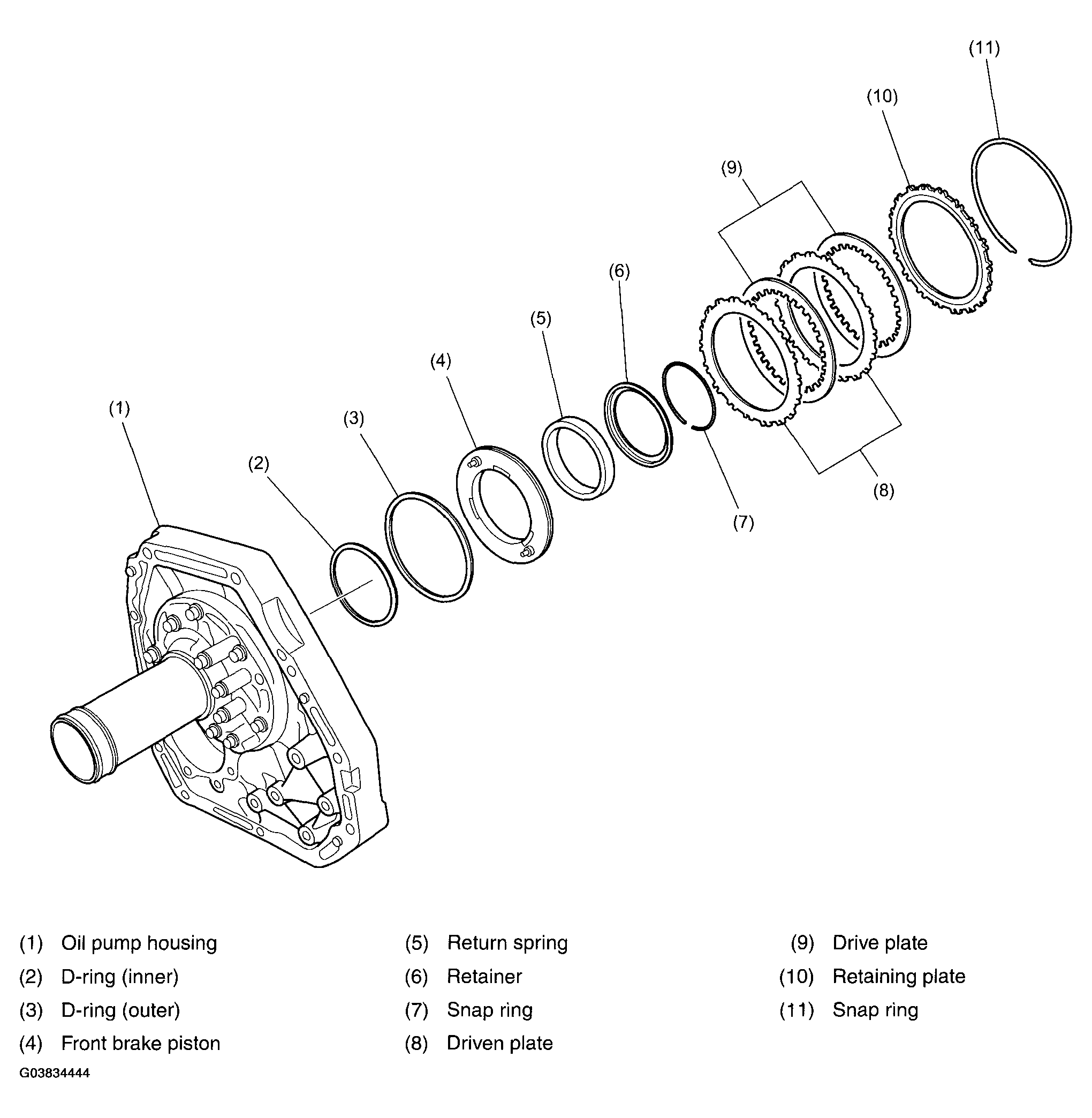

The front brake consists of a front brake piston, return spring, drive plates, driven plates, and a retaining plate.
This brake engages to lock the front sun gear when engine braking is used in the 1st, 2nd and 3rd speeds and in the 5th speed and reverse range.
