Engine Coolant Temperature Sensor: Removal

  1. Remove the collector cover.
  2. Disconnect the ground cable from battery.

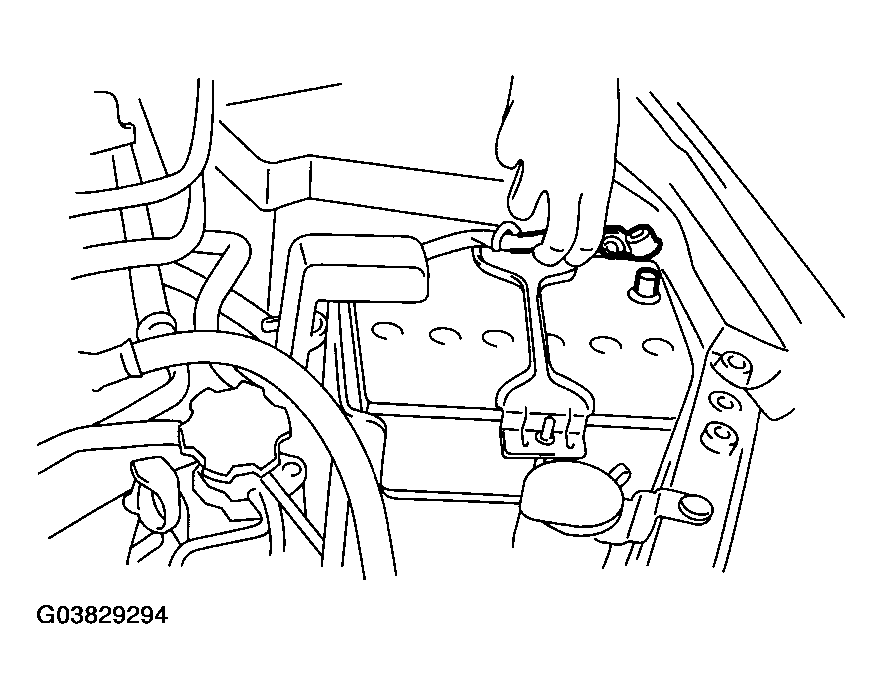

    Fig 1: Disconnecting Ground Cable From Battery
    G03829294Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the generator. < Ref. to REMOVAL , Generators
  4. Drain coolant. < Ref. to DRAINING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant. >
  5. Disconnect the connectors from engine coolant temperature sensor.

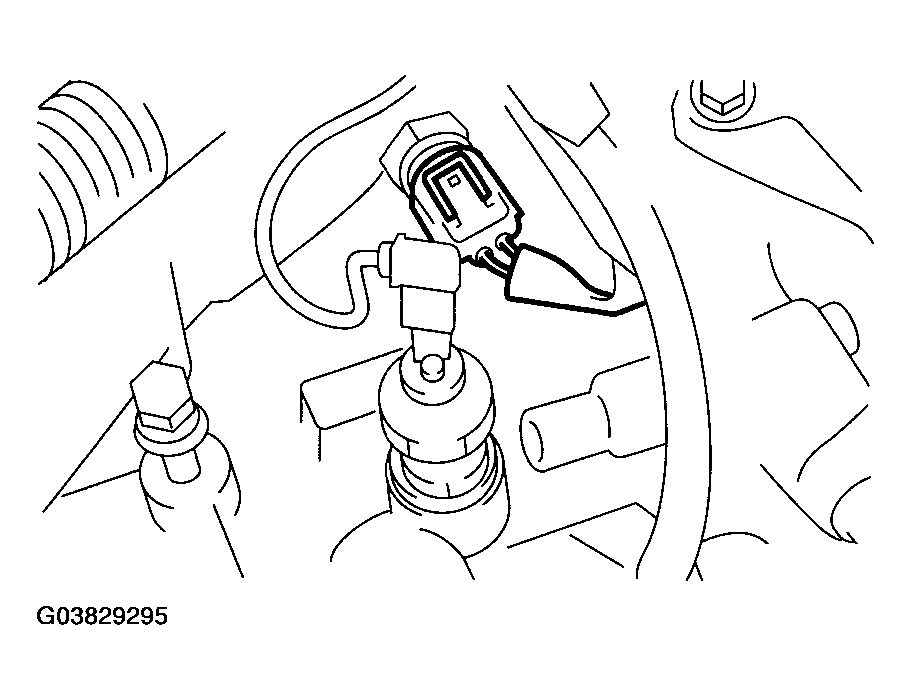

    Fig 2: Disconnecting Connectors From Engine Coolant Temperature Sensor
    G03829295Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the engine coolant temperature sensor.
