Front Hood Lock Assembly: Removal

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the bolt. Remove the hood lock assembly.
  3. Remove the release cable from the lock assembly.

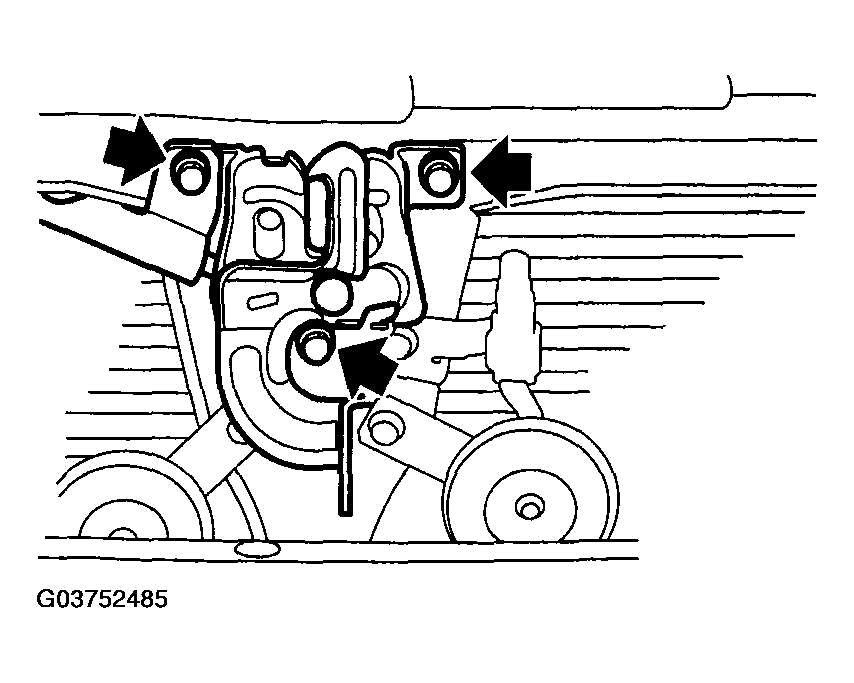

    Fig 1: Removing Release Cable From Lock Assembly
    G03752485Courtesy of SUBARU OF AMERICA, INC.
