Control Module I/O Signal: Wiring Diagram

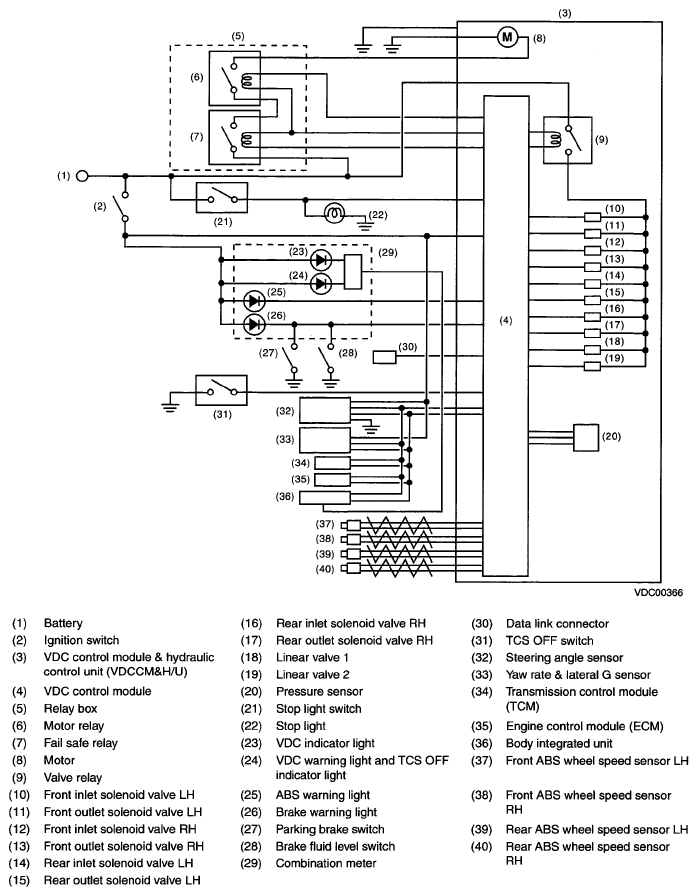

Fig 1: VDC Control Module And Hydraulic Control Unit - Wiring Diagram
G05032713Courtesy of SUBARU OF AMERICA, INC.
