Yaw Rate & Lateral G Sensor

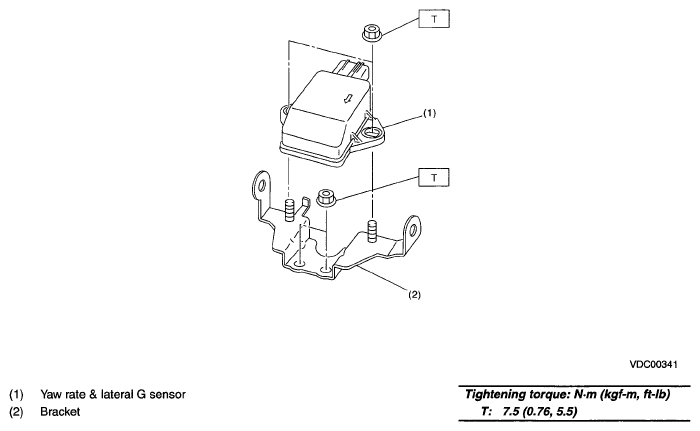

Fig 1: Identifying Yaw Rate & Lateral G Sensor Components
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
