Engine Controls - Engine (Diagnostics) (H6DO): Electrical Component Location: Location: Engine

• Control module

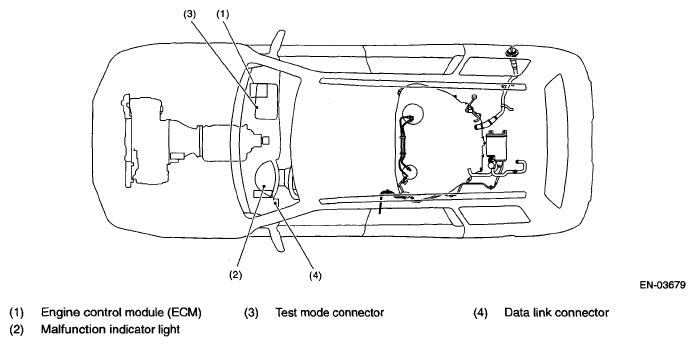

Fig 1: Identifying Engine Control Module Components (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

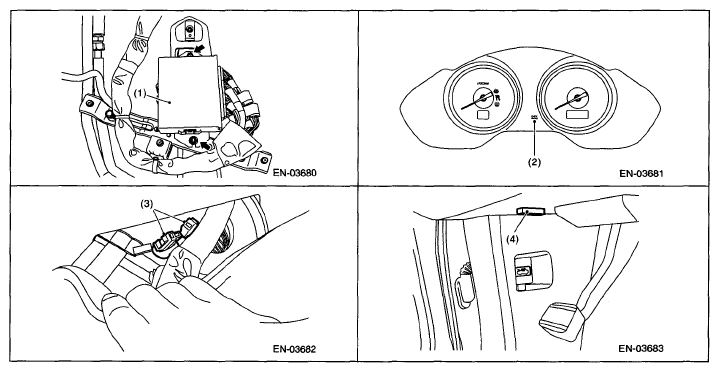

Fig 2: Identifying Engine Control Module Components (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

• Sensor

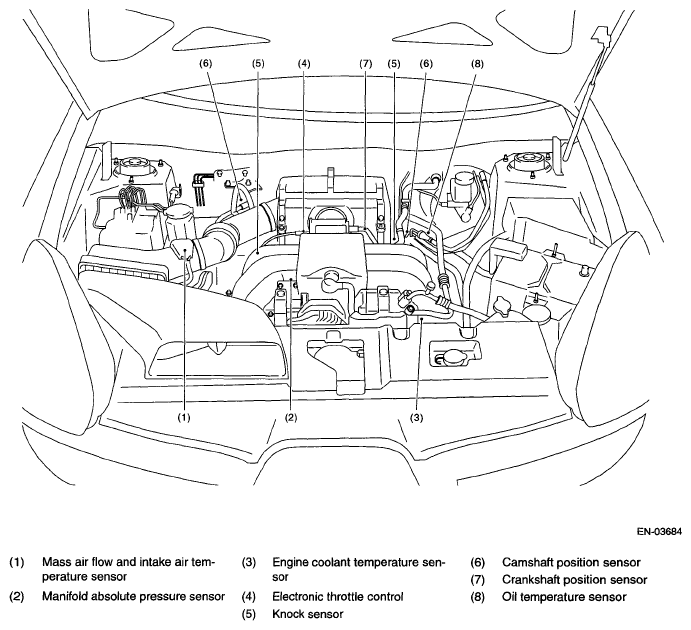

Fig 3: Identifying Sensor Locations (1 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

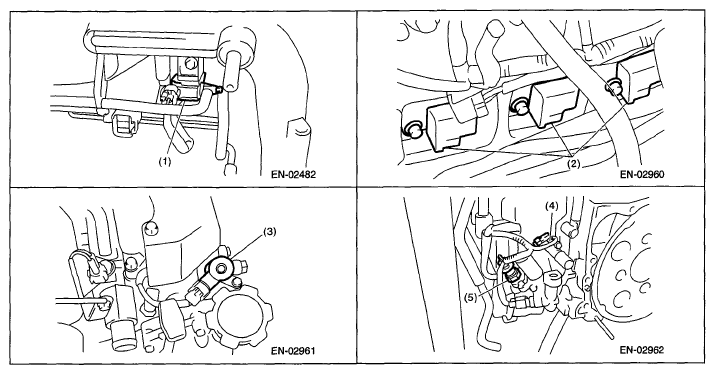

Fig 4: Identifying Sensor Locations (2 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Identifying Sensor Locations (3 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

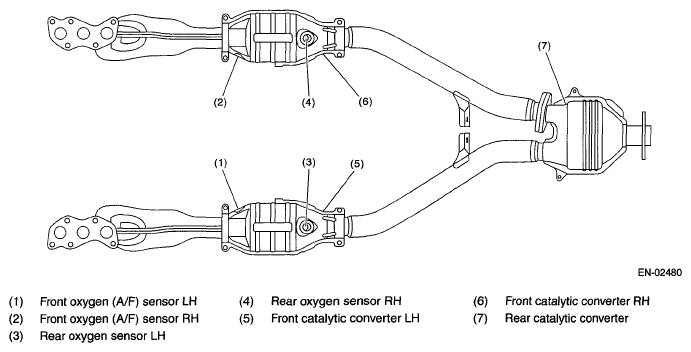

Fig 6: Identifying Sensor Locations (4 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

Fig 7: Identifying Sensor Locations (5 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

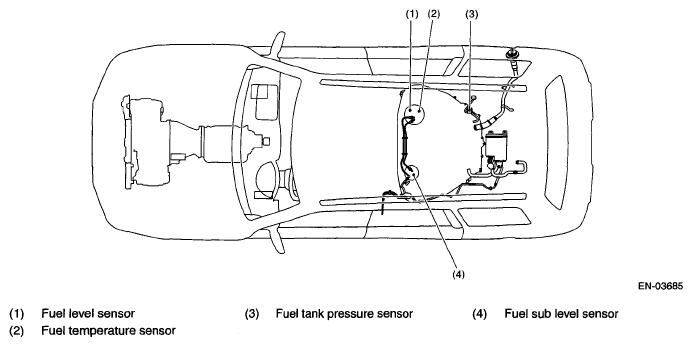

Fig 8: Identifying Sensor Locations (6 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

• Solenoid valve, actuator, emission control system parts and ignition system parts

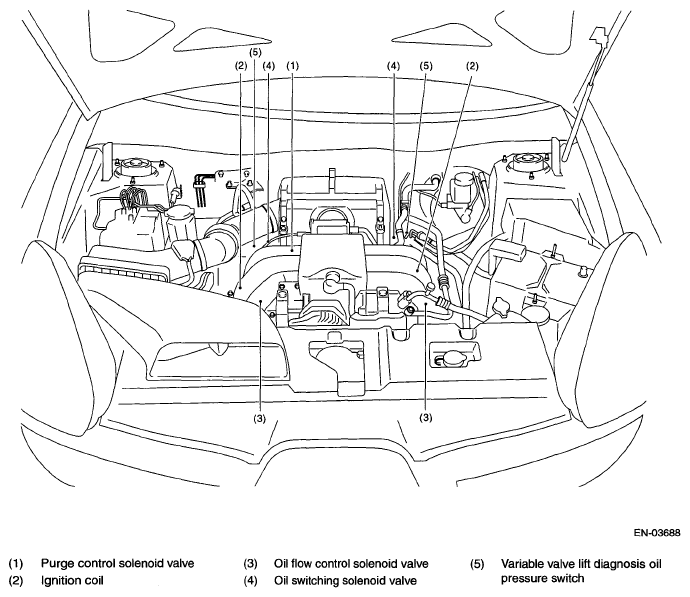

Fig 9: Identifying Solenoid Valve, Actuator And Emission Control System Parts (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Fig 10: Identifying Solenoid Valve, Actuator And Emission Control System Parts (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

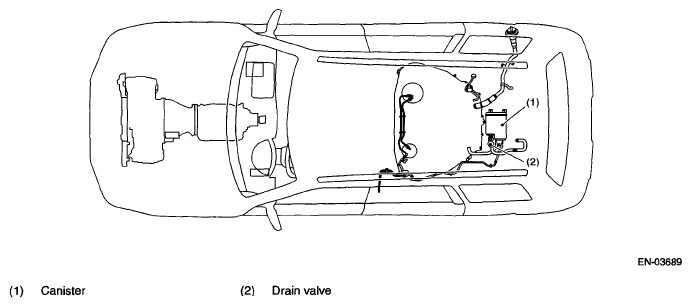

Fig 11: Identifying Canister And Drain Valve Location

Courtesy of SUBARU OF AMERICA, INC.

Fig 12: Identifying Canister And Drain Valve

Courtesy of SUBARU OF AMERICA, INC.

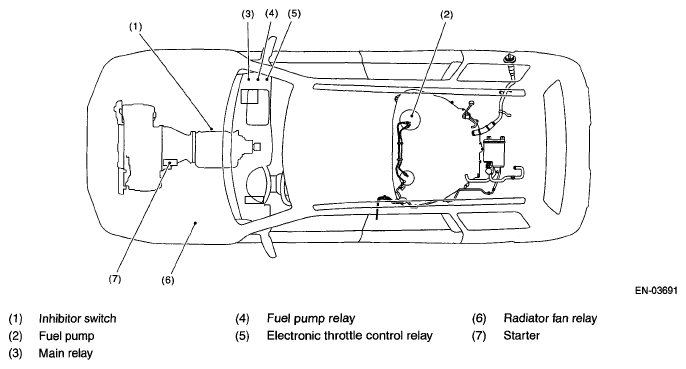

Fig 13: Identifying Electrical Component Locations (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

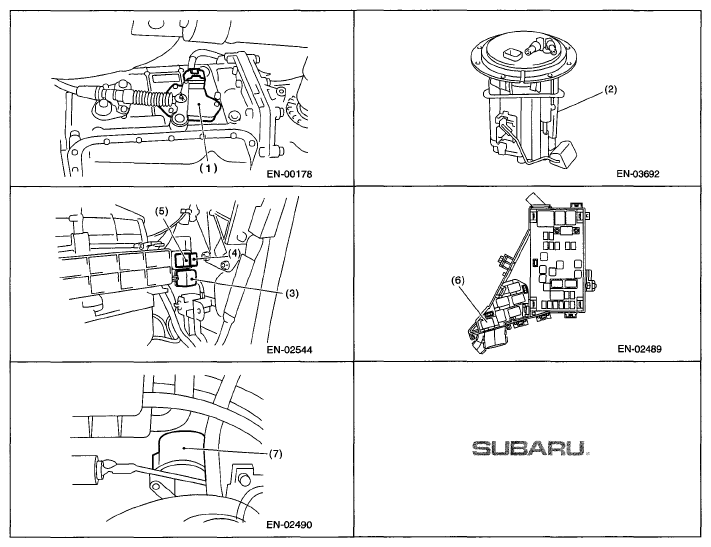

Fig 14: Identifying Electrical Component Locations (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
