Communication For Initializing Impossible

COMMUNICATION FOR INITIALIZING IMPOSSIBLE

NOTE:
- DTC is displayed in the sequence of the amount of counter numbers.
- When more than two DTCs are displayed, perform the diagnosis of top one.

DIAGNOSIS:
Subaru Select Monitor communication line is open or shorted.

TROUBLE SYMPTOM:
Not communicable with Subaru Select Monitor.

Wiring Diagram:

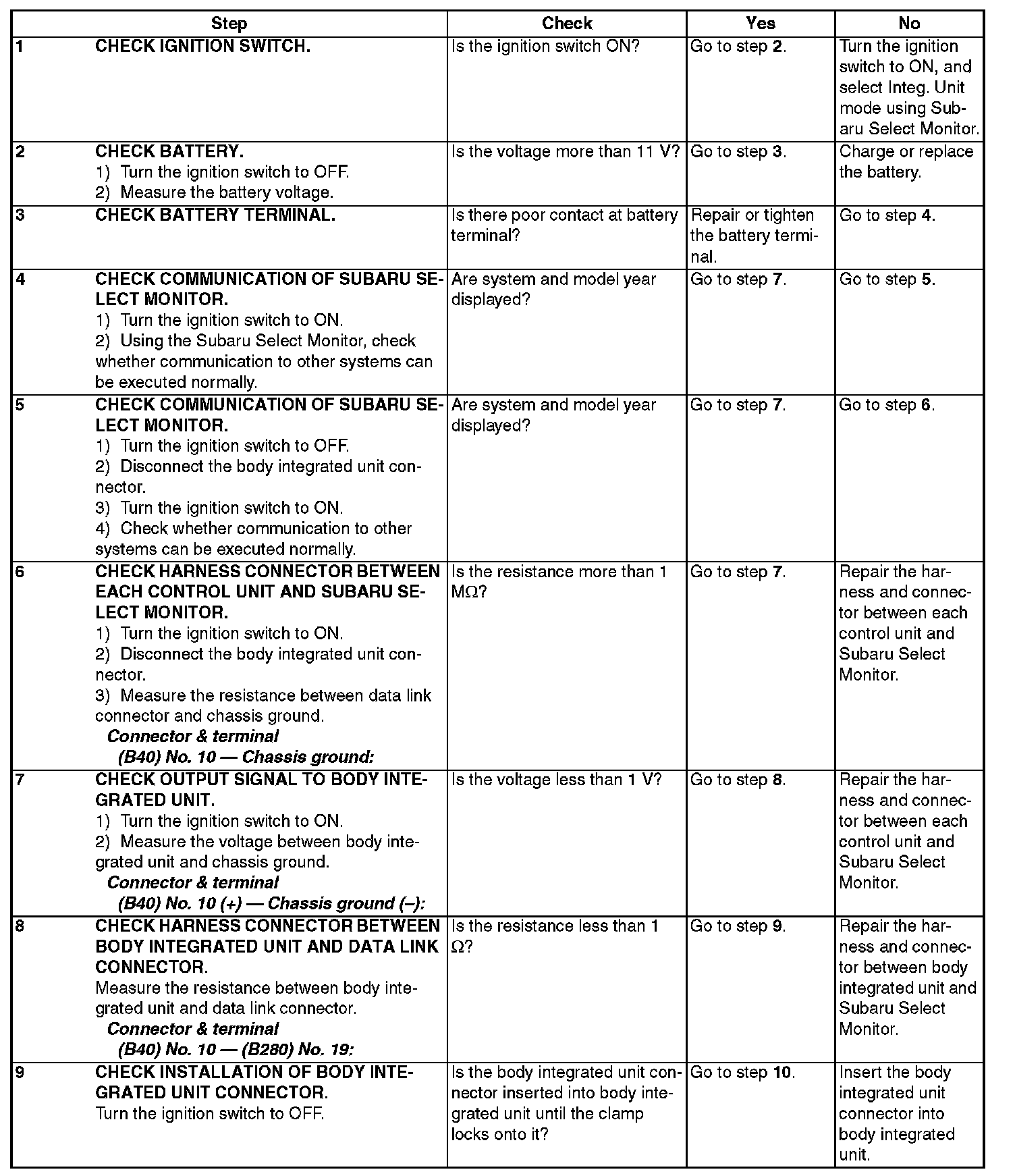

Step 1-9:

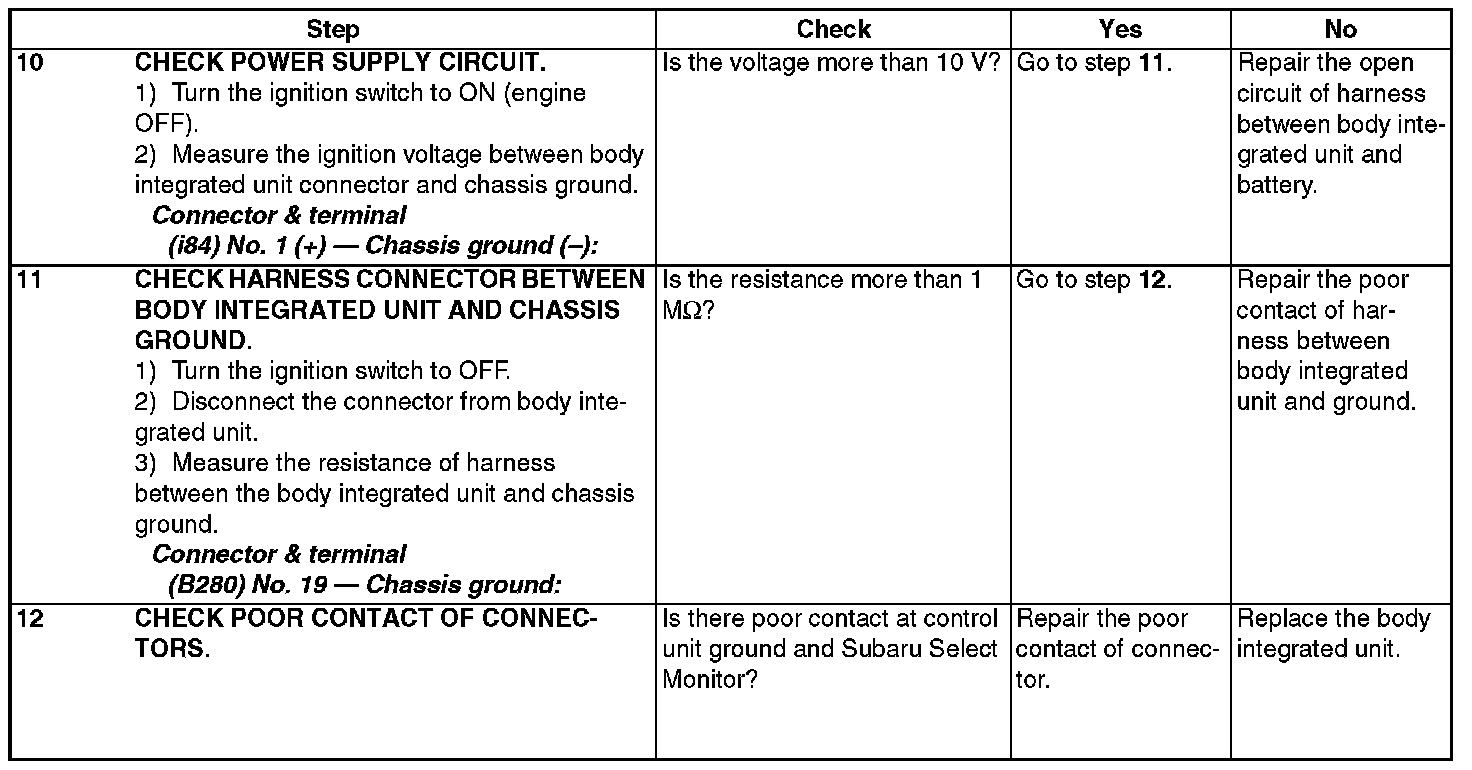

Step 10-12:

CAUTION: When replacing body integrated unit on the model with immobilizer system, refer to the "REGISTRATION MANUAL FOR IMMOBILIZER".
