Transfer Case And Extension

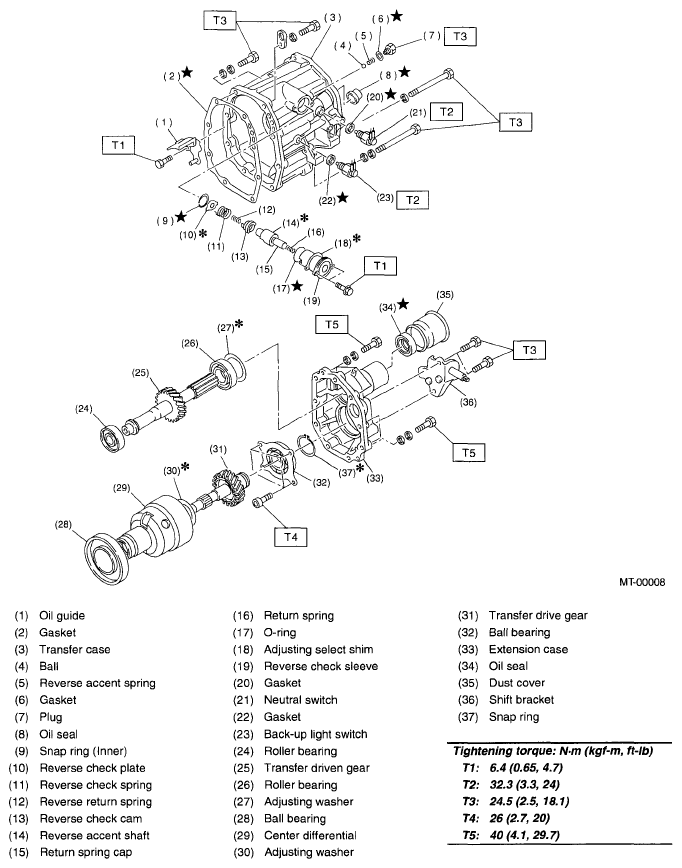

Fig 1: Transfer Case And Extension Replacement Components With Torque Specifications
G04990799Courtesy of SUBARU OF AMERICA, INC.
