Transfer And Extension Case With MPT

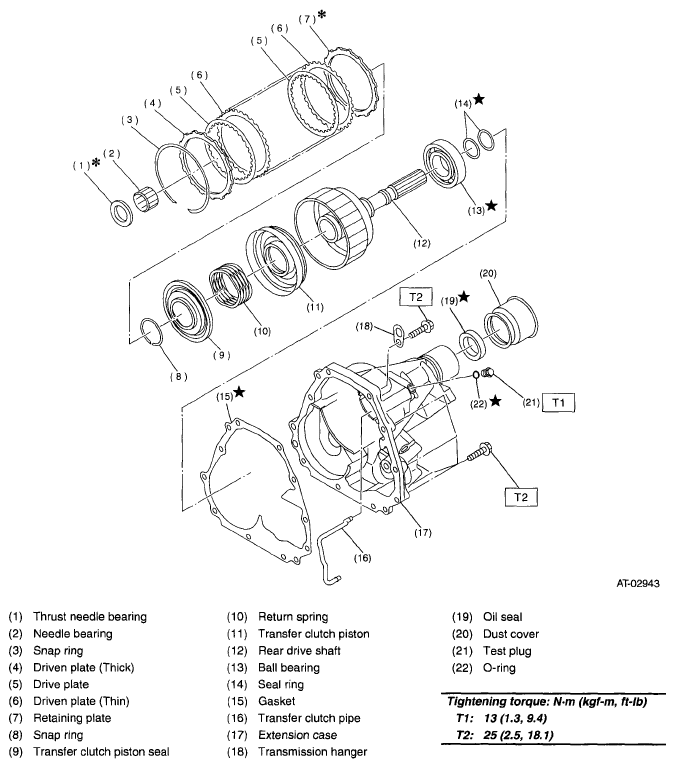

Fig 1: Transfer And Extension Case With MPT Torque Specifications
G04990217Courtesy of SUBARU OF AMERICA, INC.
