Components With Torque Specifications

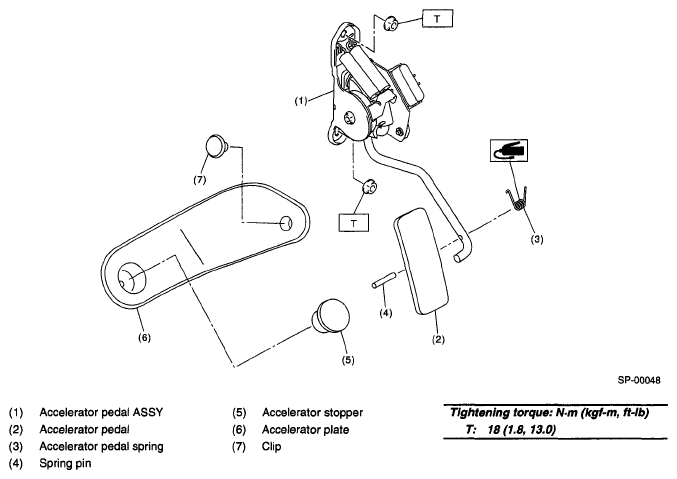

Fig 1: Accelerator Pedal Assembly Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
