Front Hood Stay Installation

AT THE CHECK AND GENERAL MAINTENANCE

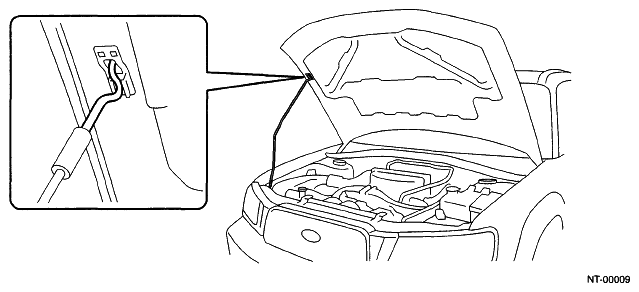

Fig 1: Identifying Front Hood Stay

WHEN WIDER HOOD OPENING IS NECESSARY

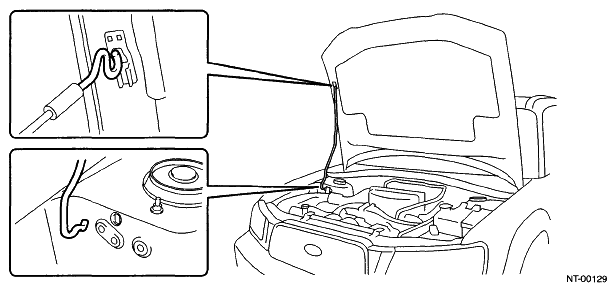

Set stay into the hole of hood inner as shown in the figure below.

NOTE: Before setting the front hood in this position, remove the windshield washer hose attaching clip from the front hood.

Fig 2: Identifying Front Hood
