Oil Pump

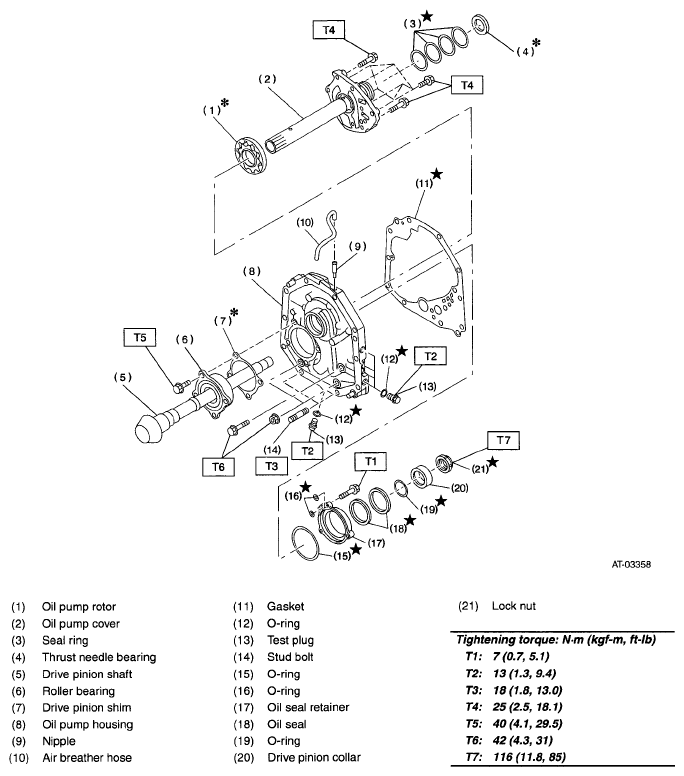

Fig 1: Identifying Oil Pump Components
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
