Reduction Gear

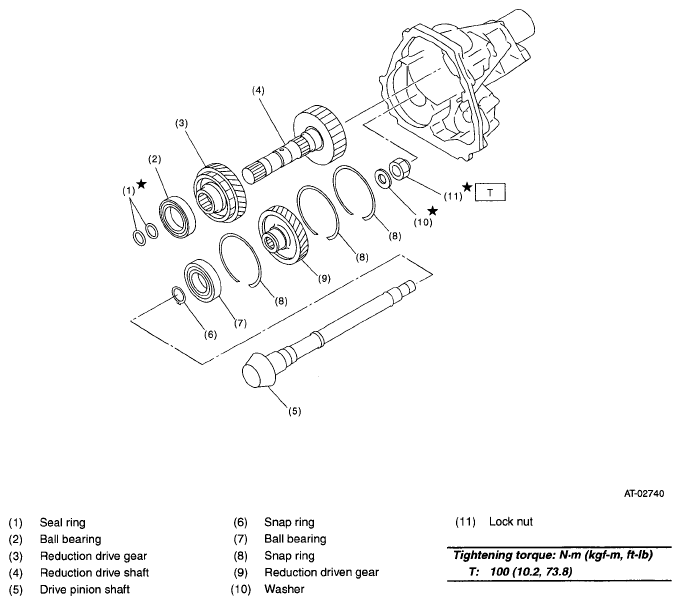

MPT MODEL

Fig 1: Identifying Reduction Gear Components - MPT Model
G04993986Courtesy of SUBARU OF AMERICA, INC.

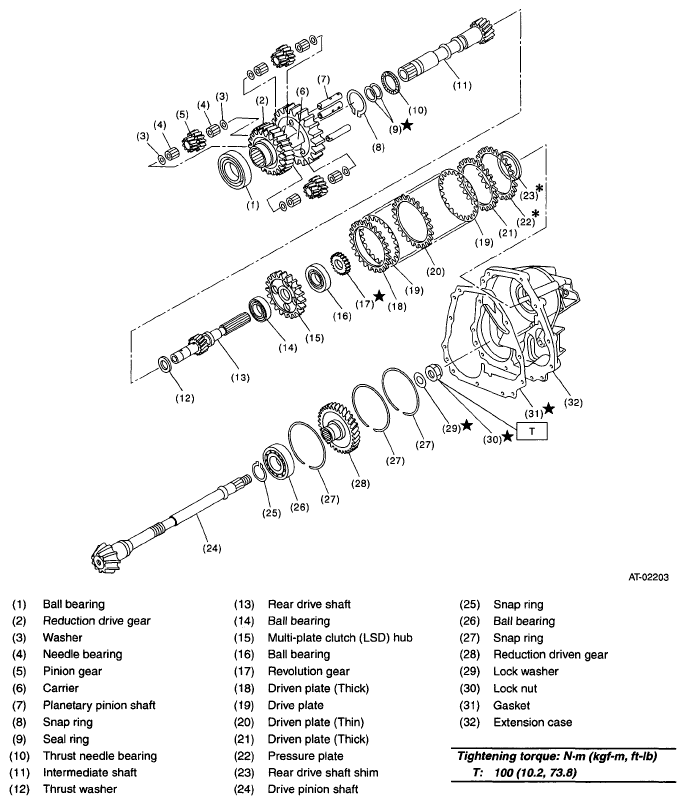

VTD MODEL

Fig 2: Identifying Reduction Gear Components - VTD Model
G04993987Courtesy of SUBARU OF AMERICA, INC.
