Transfer And Extension Case

MPT MODEL

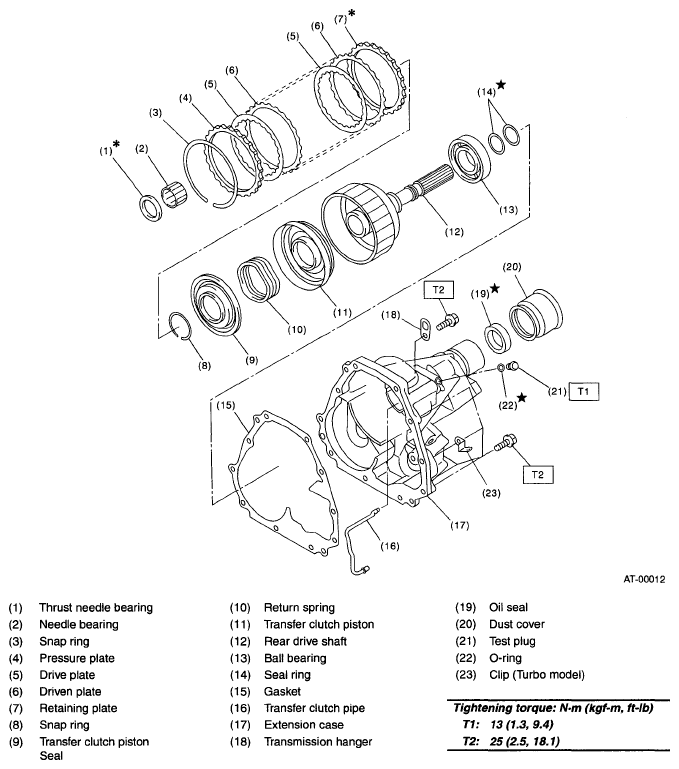

Fig 1: Identifying Transfer And Extension Case Components - MPT Model
G04993989Courtesy of SUBARU OF AMERICA, INC.

VTD MODEL

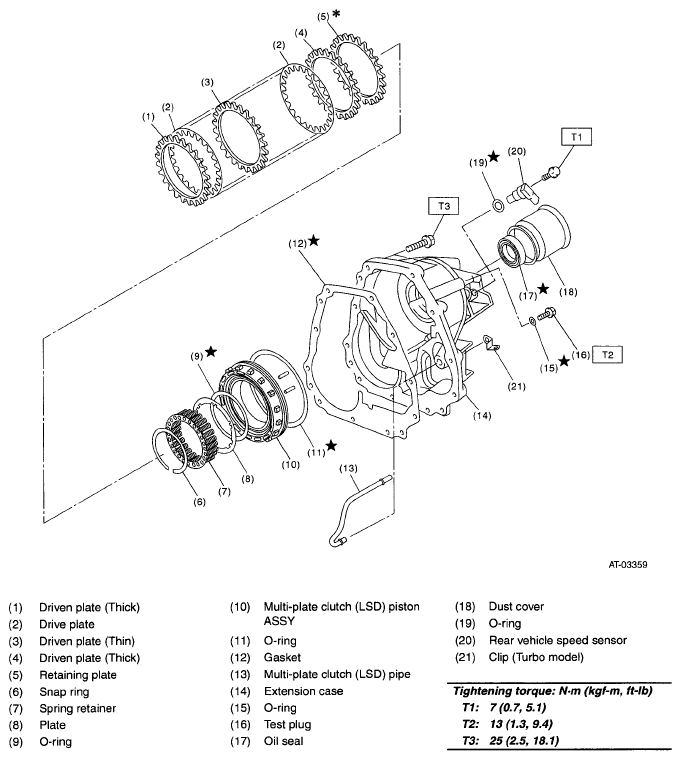

Fig 2: Identifying Transfer And Extension Case Components - VTD Model
G04993990Courtesy of SUBARU OF AMERICA, INC.
