Control Valve And Harness Routing

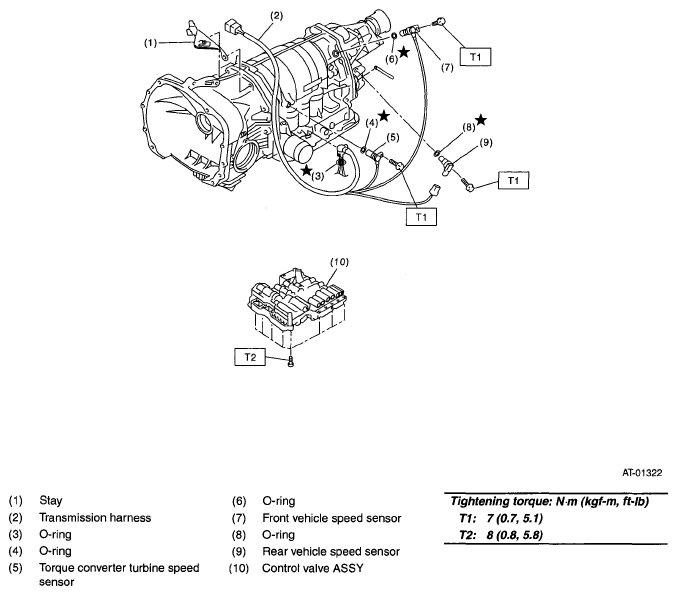

Fig 1: Exploded View Of Control Valve And Harness Routing With Torque Specifications

G05002415
