Home >> Subaru >> 2006 >> Outback F6-3.0L DOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> System Diagram >> Engine Mounting

September 30: LEMON manuals is back up on a temporary server! Slowness is possible

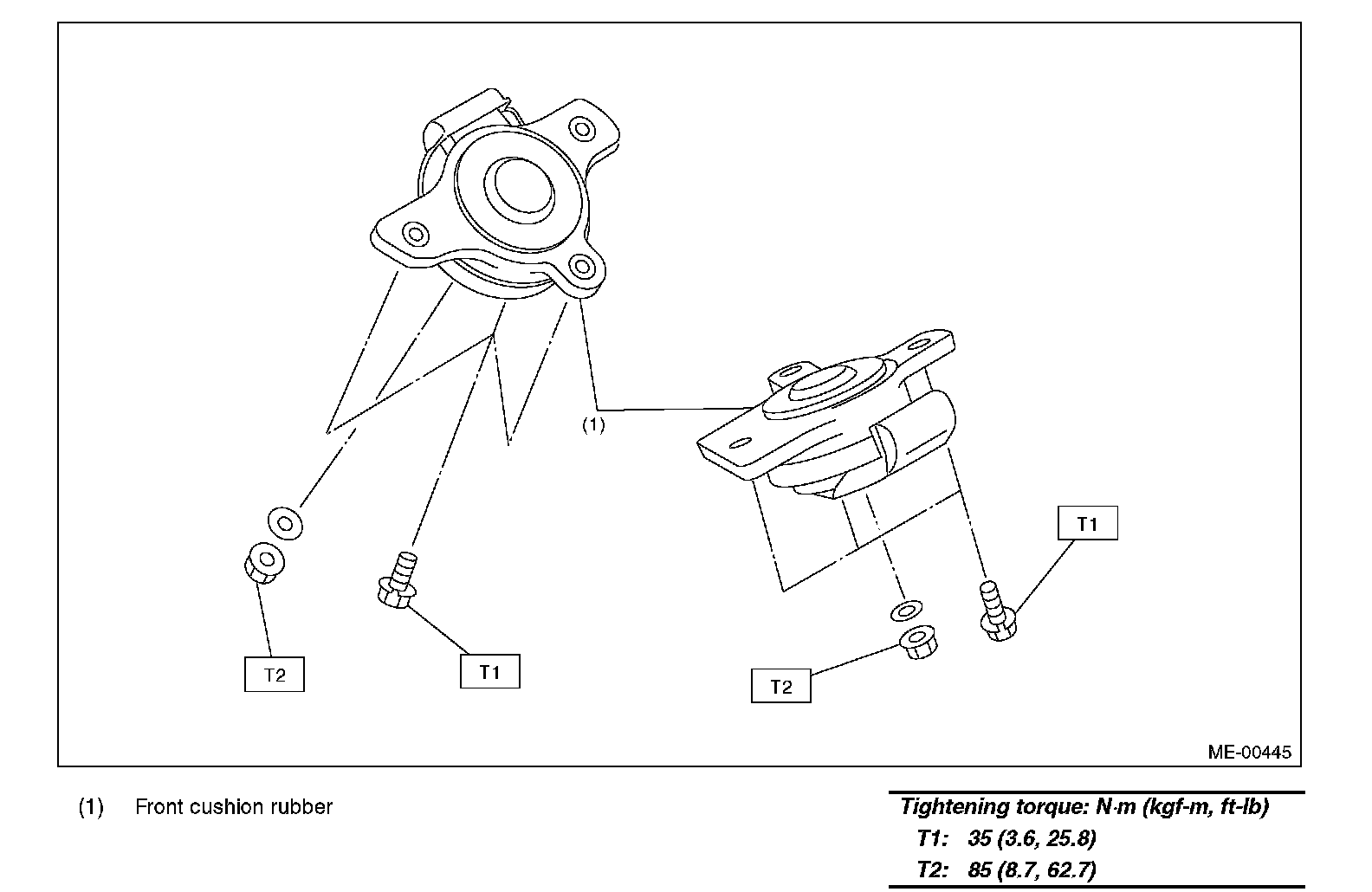

Engine Mounting
