Schematic Drawings

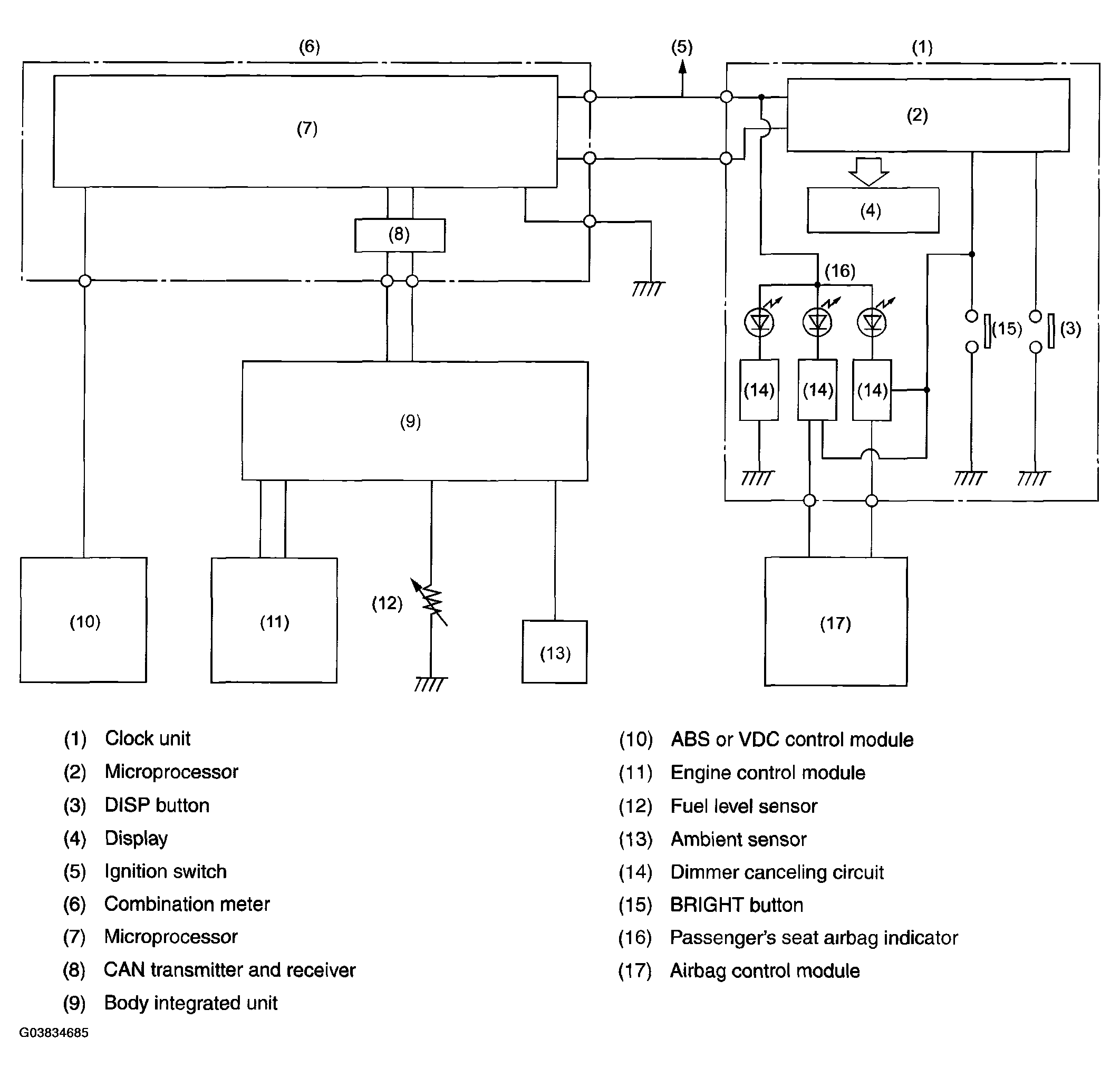

Fig 1: Instrumentation/Driver Info Schematic Drawings
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
