3.0 L Model

  1. Replace the belts if cracks, fraying or wear are found.
  2. Check that the V-belt automatic belt tensioner indicator (A) is within the range (D).

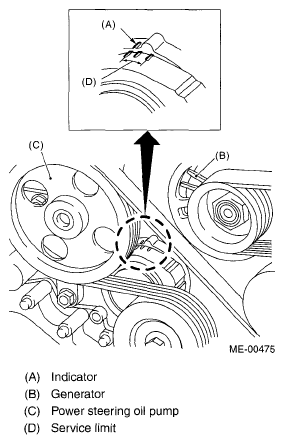

    Fig 1: Identifying V-belt Automatic Belt Tensioner Indicator
    G05019562
