Front Stabilizer: Removal
- Lift-up the vehicle, and then remove the front wheels.
- Remove the front under cover. < Ref. to
REMOVAL
, Front Under Cover. >
- Remove the front crossmember support plate. < Ref. to
, REMOVAL , Front Crossmember Support Plate. >
- Remove the stabilizer link.
Courtesy of SUBARU OF AMERICA, INC.

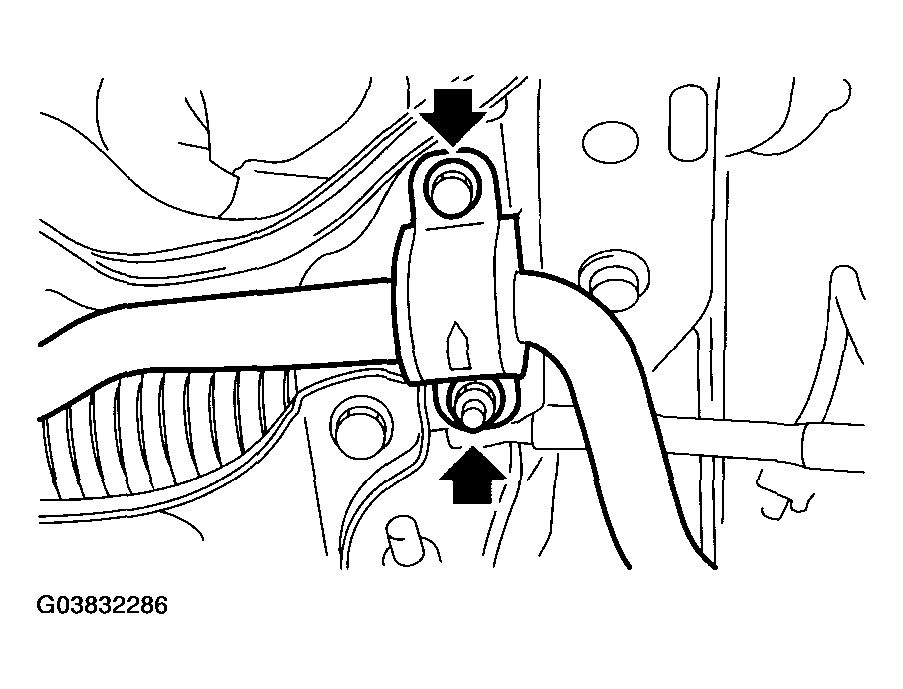

- Remove the stabilizer bracket.
Courtesy of SUBARU OF AMERICA, INC.
