Inspection

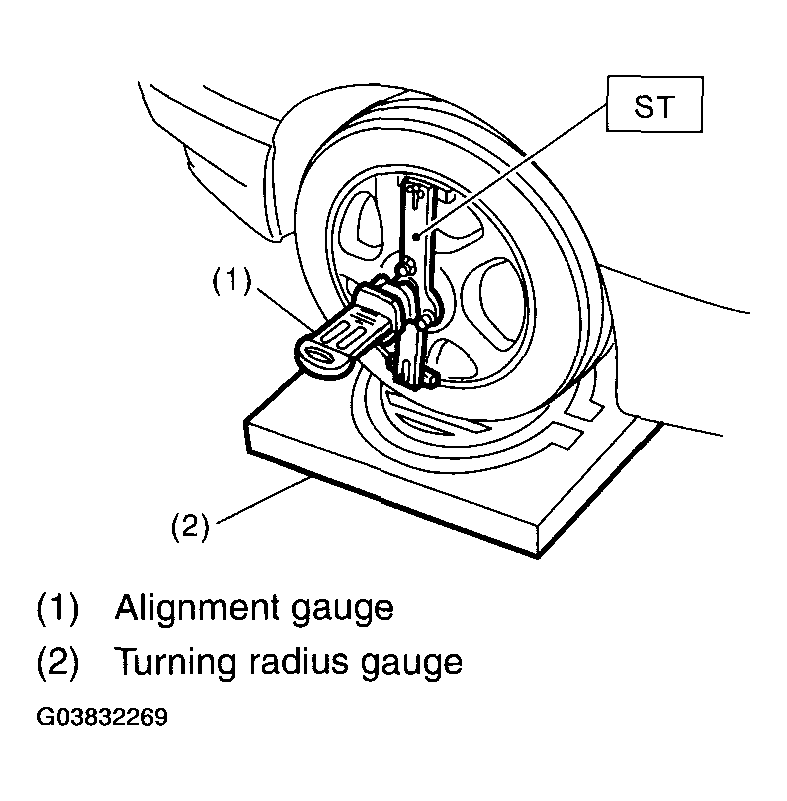

- Place the front wheel on turning radius gauge. Make sure the ground contacting surfaces of front and rear wheels are set at the same height.
- Set the ST into the center of wheel, and then set the wheel alignment gauge.
ST 927380002 ADAPTER
- Measure the camber angle in accordance with the operation manual for wheel alignment gauge.
CAMBER SPECIFICATION
| Model | Camber (Differences between RH and LH: 45' or less) |
|---|---|
| 2.5 i, 2.5 GT | -0°15'+/-0°45' |
| OUTBACK | 0°40'+/-0°45' |
