Torque Converter Clutch & Transmission Assembly

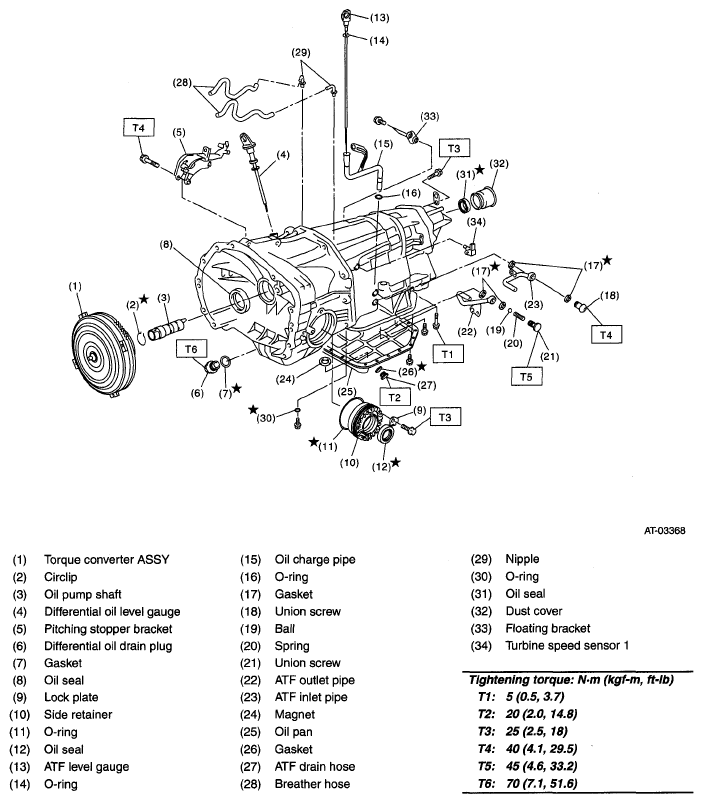

Fig 1: Torque Converter Clutch And Transmission Replacement Components With Torque Specifications
G05022128
