Home >> Subaru >> 2006 >> Outback i, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel Injection (Fuel Systems) (H4SO) >> 1. General Description >> B: Component >> 4. Fuel Tank

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

4. Fuel Tank

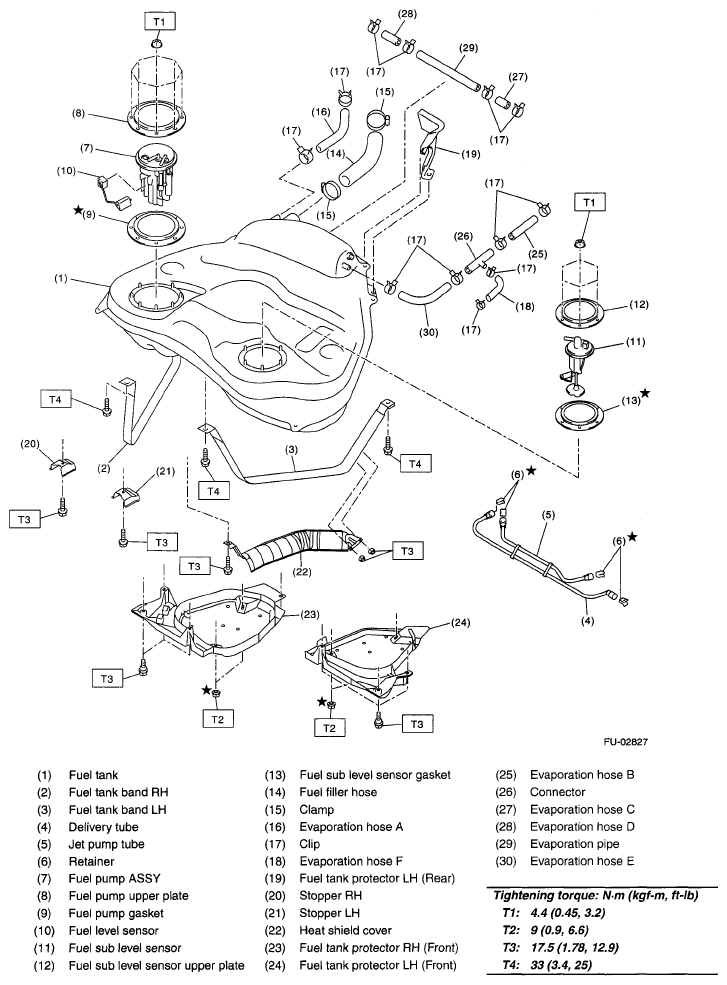

Fig 1: Fuel Tank With Torque Specifications

G05016738
