Transmission Mounting

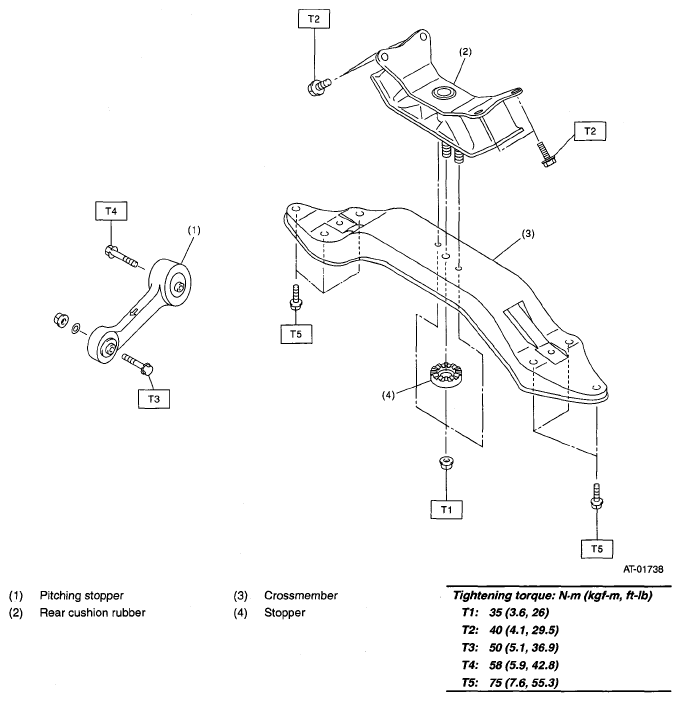

Fig 1: Transmission Mounting Replacement Components With Torque Specifications
G05346324Courtesy of SUBARU OF AMERICA, INC.
