A/C System

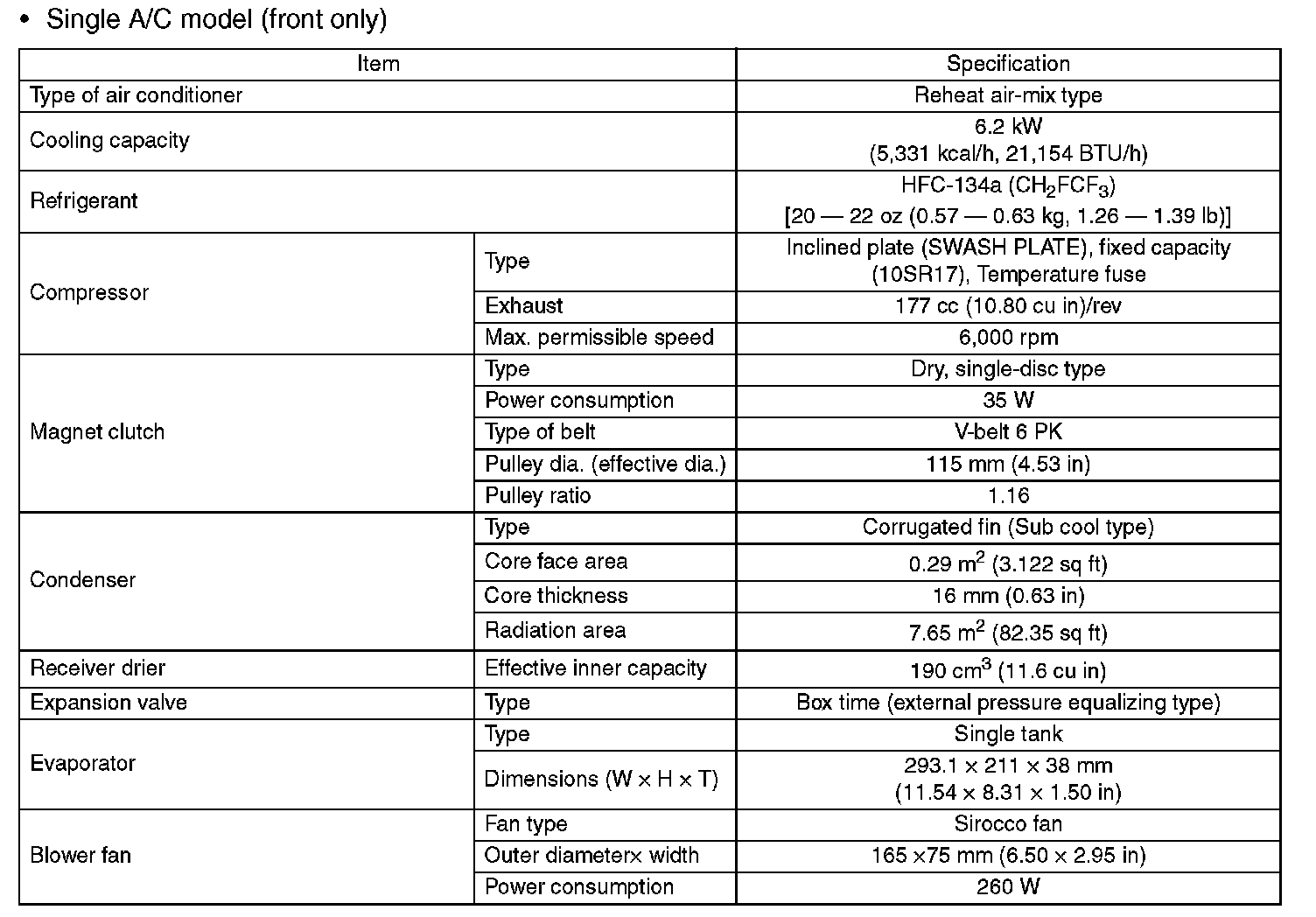

Single A/C Model (Front Only) (Part 1):

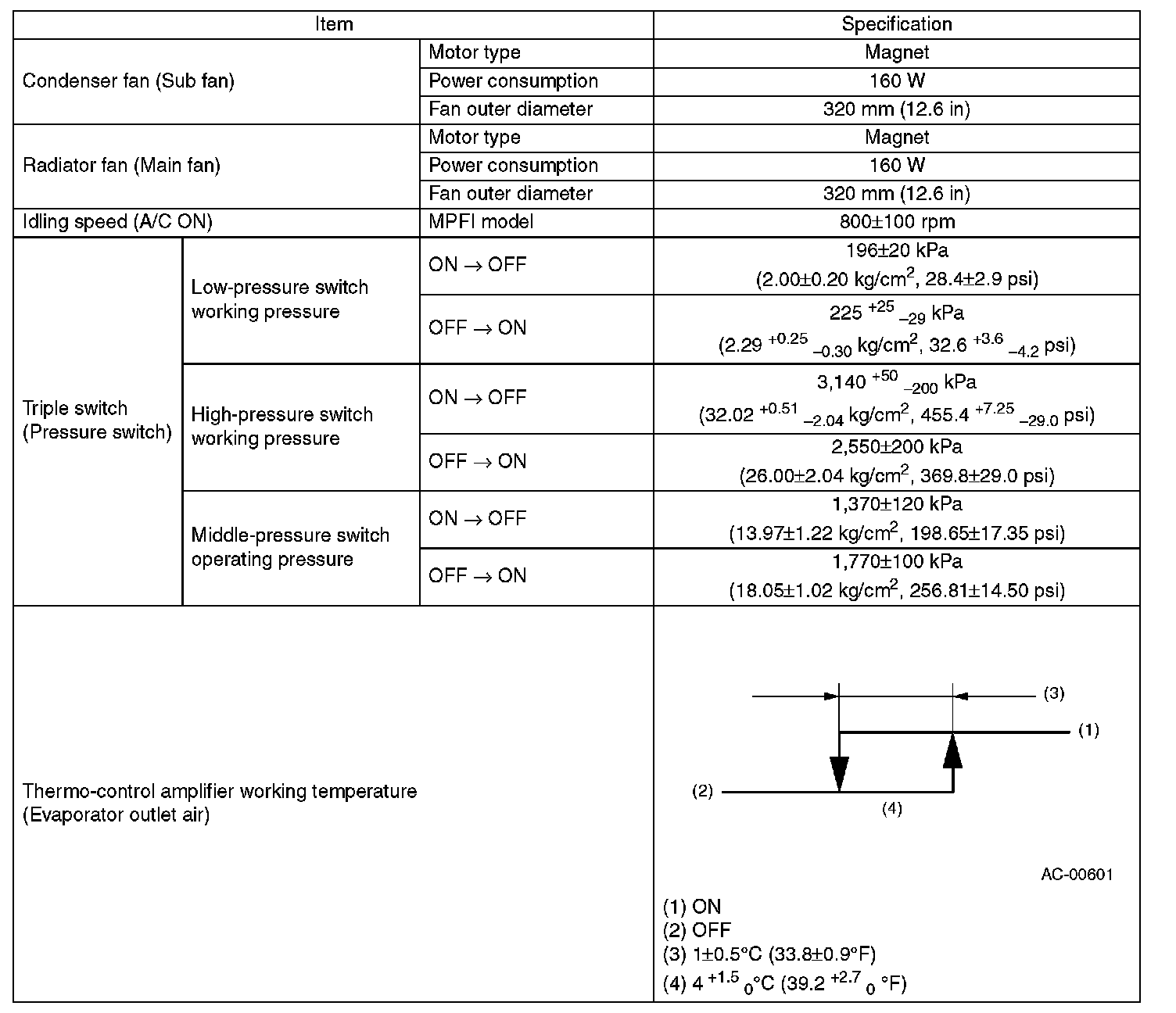

Single A/C Model (Front Only) (Part 2):

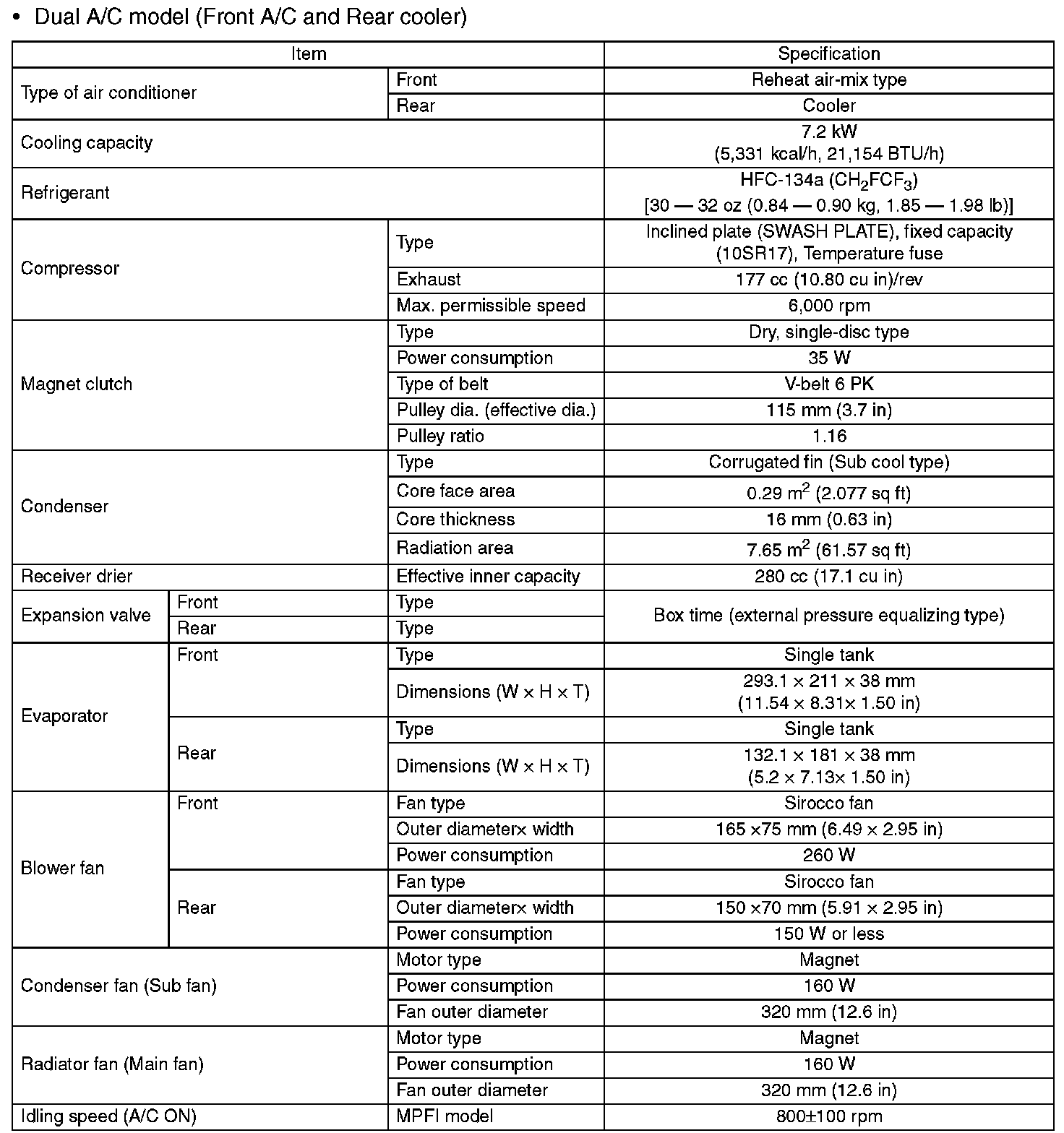

Dual A/C Model (Front A/C And Rear Cooler) (Part 1):

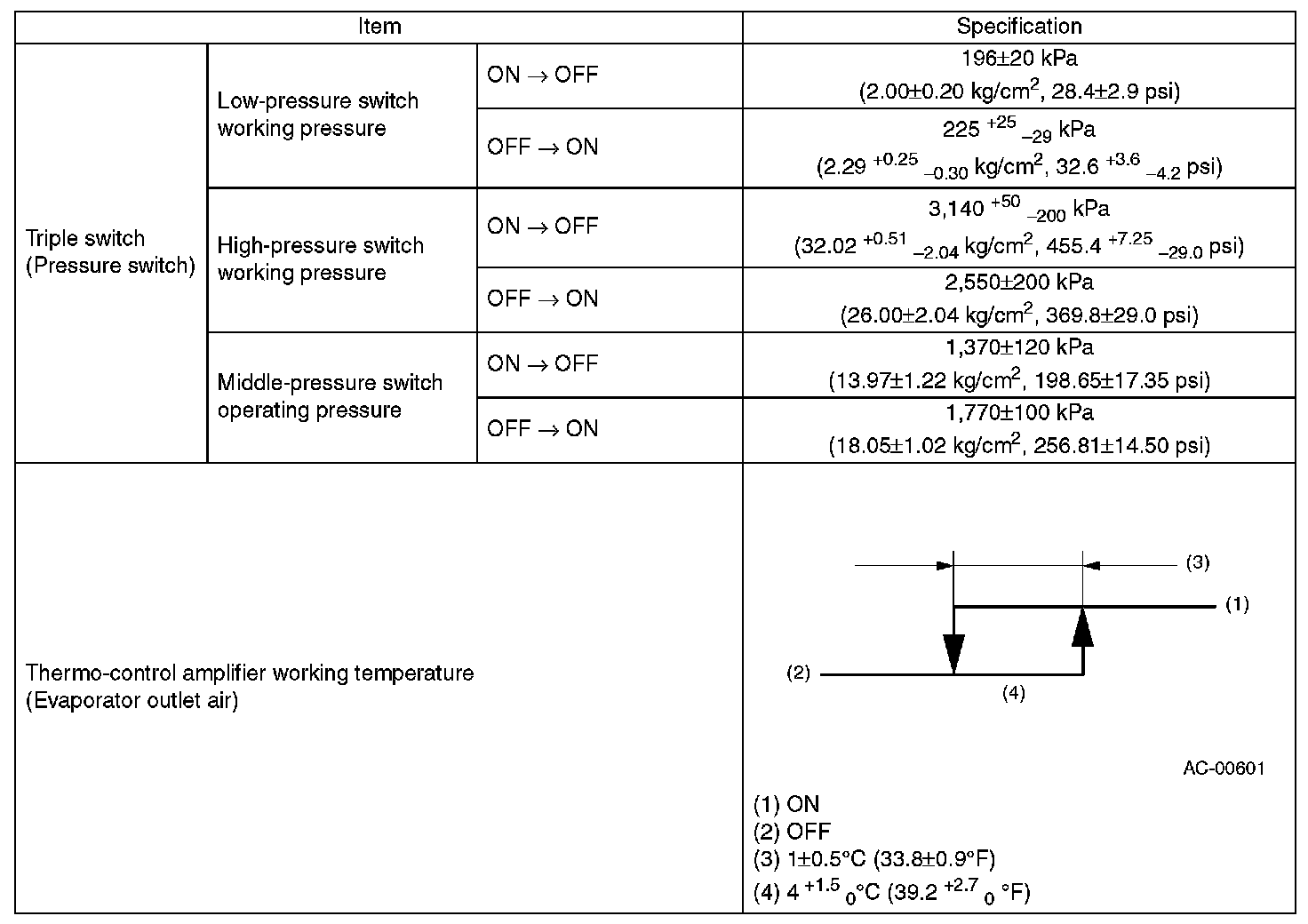

Dual A/C Model (Front A/C And Rear Cooler) (Part 2):
