Ignition Control System

IGNITION CONTROL SYSTEM

CAUTION: After repair or replacement of faulty parts, perform Clear Memory Mode Clearing Trouble Codesand Inspection Mode. List of Diagnostic Trouble Code (DTC)

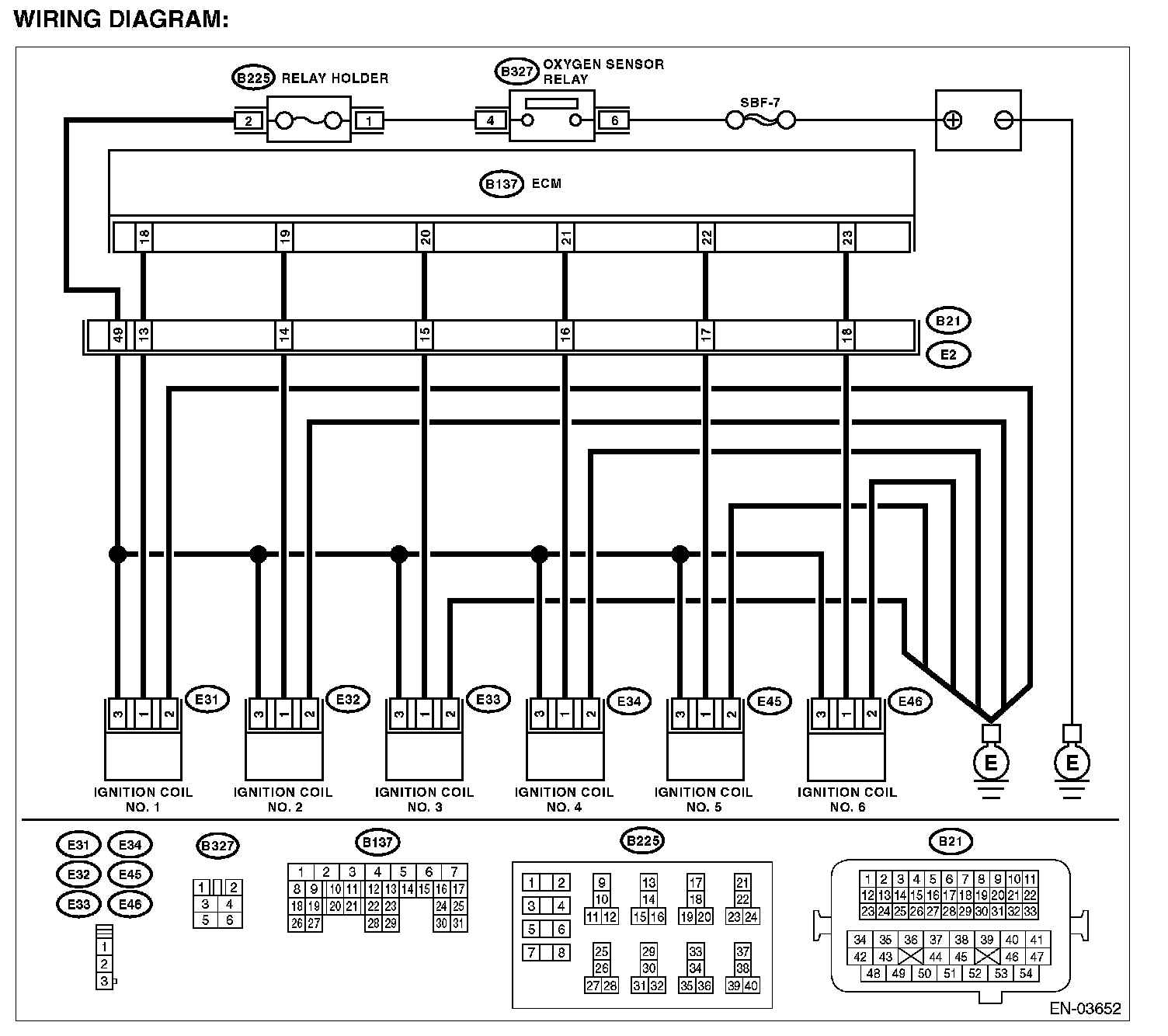

Wiring Diagram:

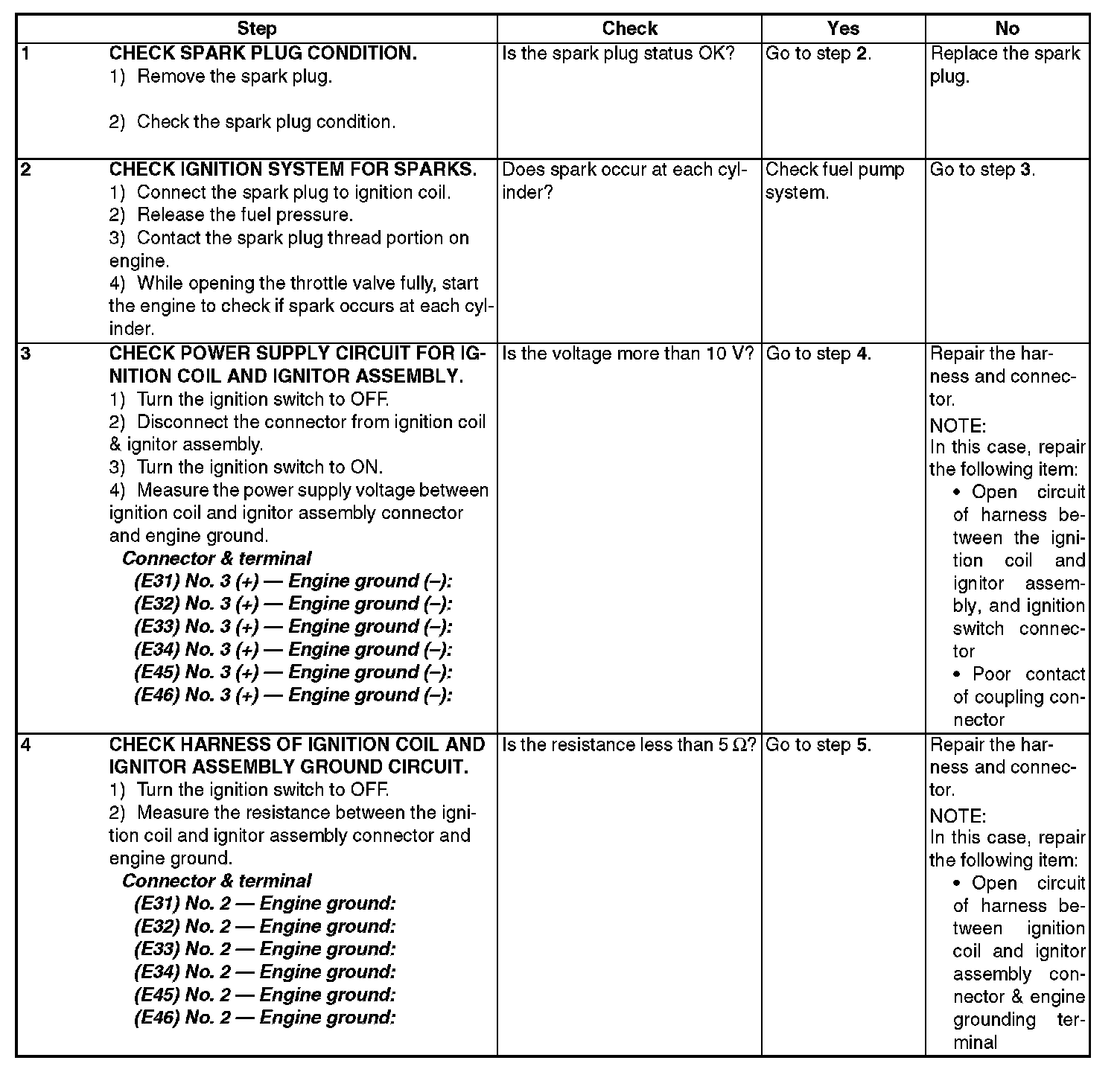

Step 1 - 4:

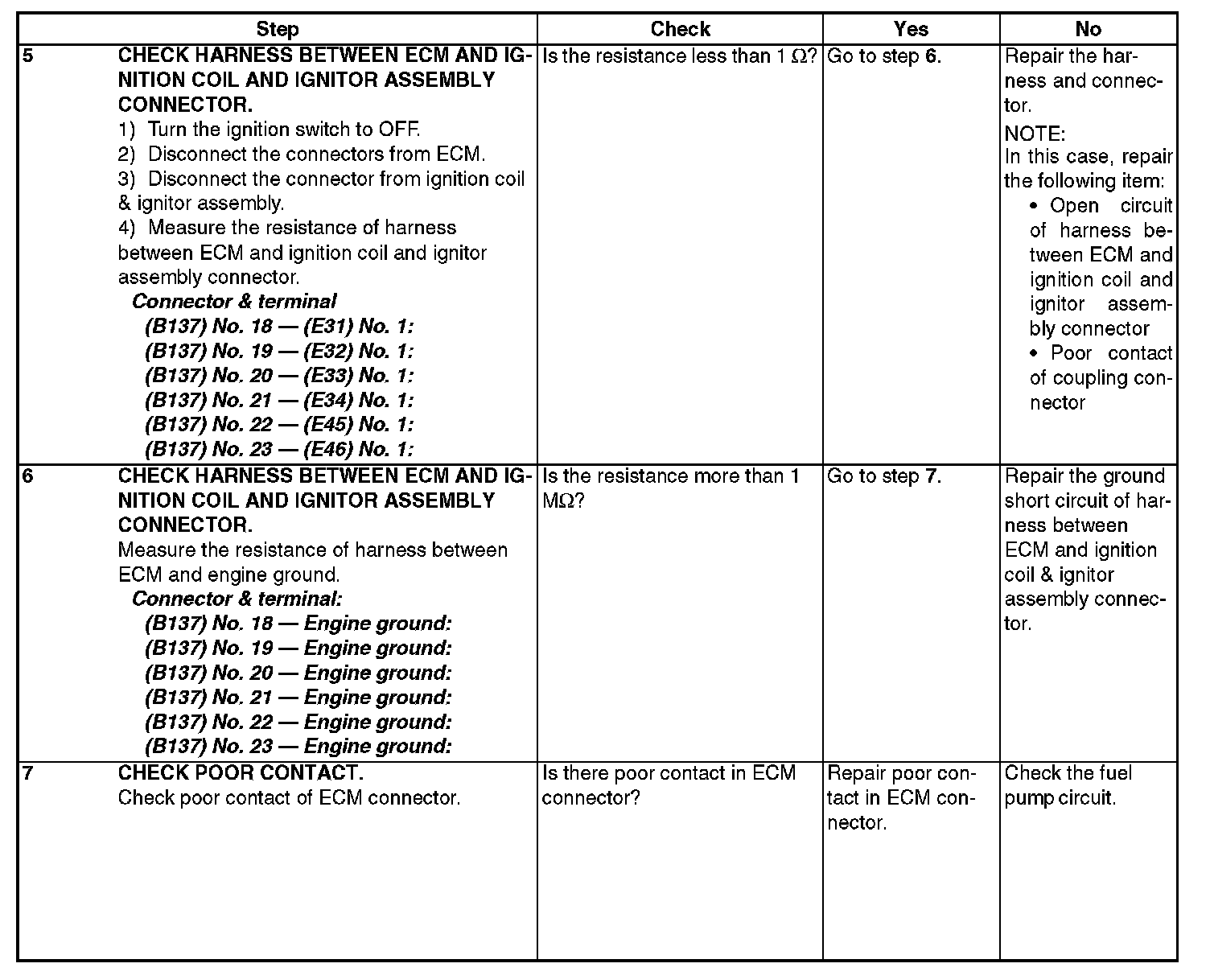

Step 5 - 7:
