Air Injection Control Valve: Service and Repair
SECONDARY AIR COMBINATION VALVEREMOVAL

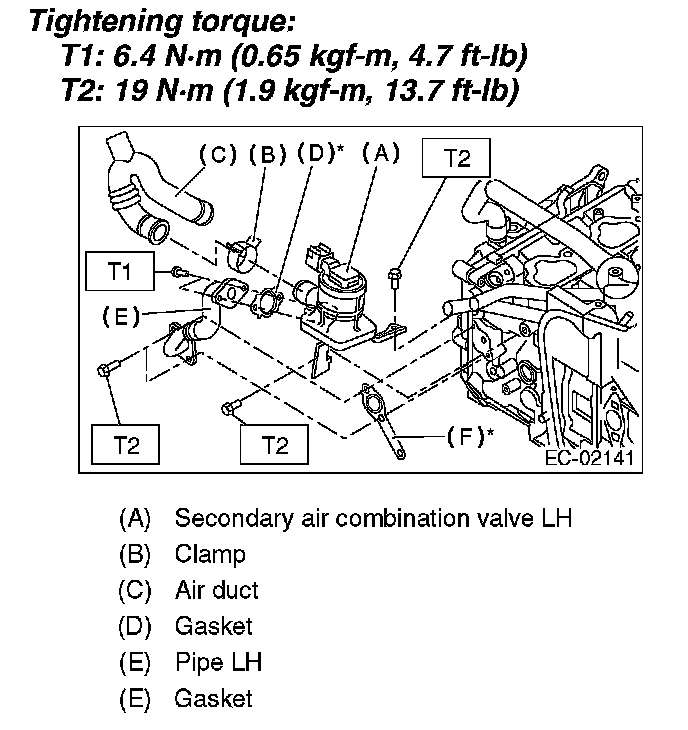

1. SECONDARY AIR COMBINATION VALVE LH
1. Disconnect the ground cable from battery.
2. Remove the intercooler.
3. Disconnect the connector from the secondary air combination valve LH.
4. Disconnect the air duct.
5. Disconnect the pipe LH.
6. Remove the secondary air combination valve LH.
2. SECONDARY AIR COMBINATION VALVE RH
1. Disconnect the ground cable from battery.
2. Remove the intercooler.
3. Remove the secondary air combination valve LH.
4. Remove the intake manifold.
5. Disconnect the connector from the secondary air combination valve RH.
6. Disconnect the pipe RH.
7. Remove the secondary air combination valve RH.
INSTALLATION
1. SECONDARY AIR COMBINATION VALVE LH
Install in the reverse order of removal.
NOTE: Use a new gasket.
2. SECONDARY AIR COMBINATION VALVE RH
Install in the reverse order of removal.
NOTE: Use a new gasket.
