Splash Guard: Service and Repair

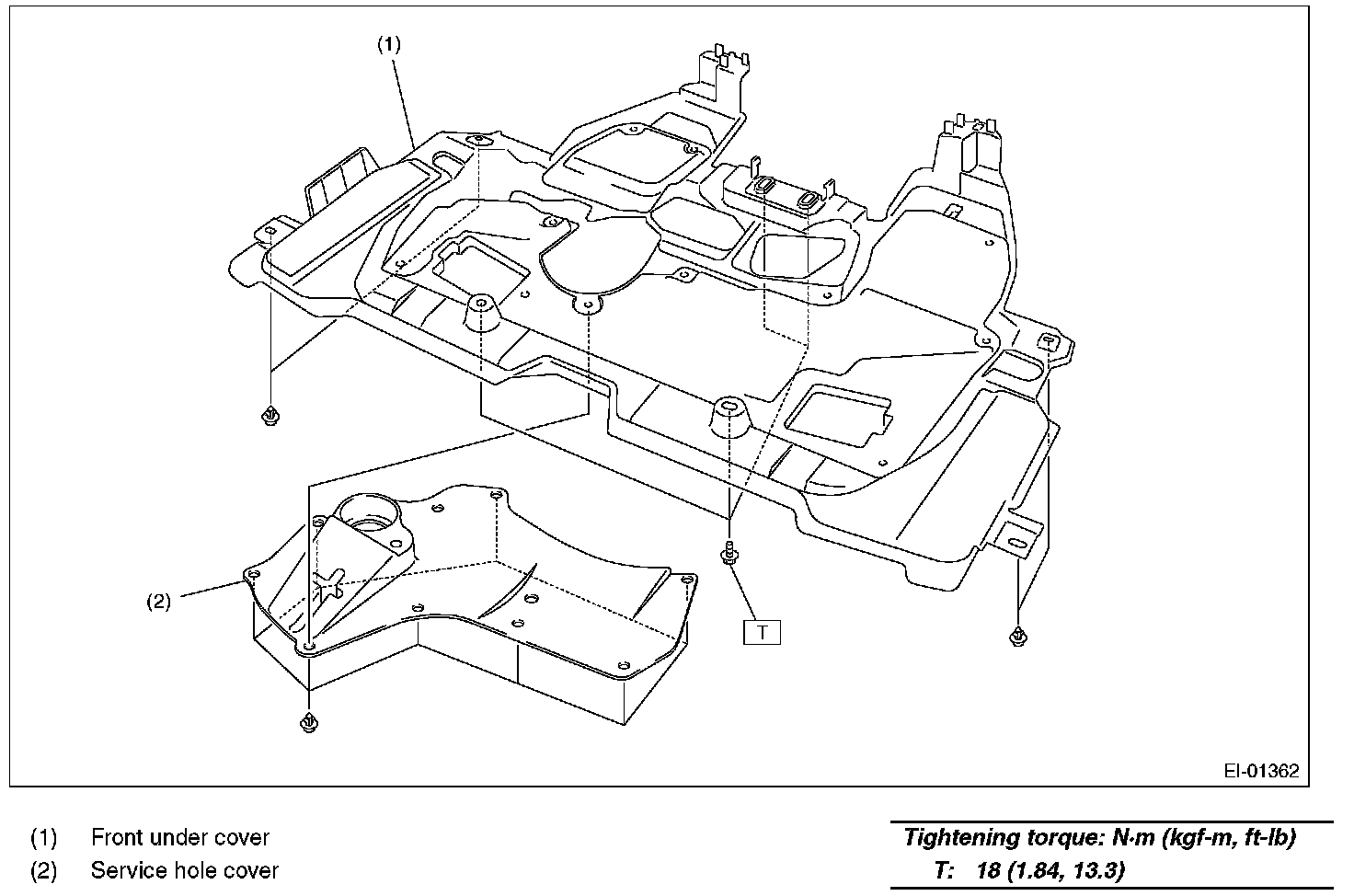

FRONT UNDER COVER

Under Cover:

REMOVAL

1. Lift-up the vehicle.
2. Loosen the bolts, then remove the clip and under cover.






INSTALLATION

Install in the reverse order of removal.

Tightening torque: 18 N.m (1.84 kgf-m, 13.3 ft-lb)
